39-264 crank

A quick learner from 11758 says:

April 14, 2017

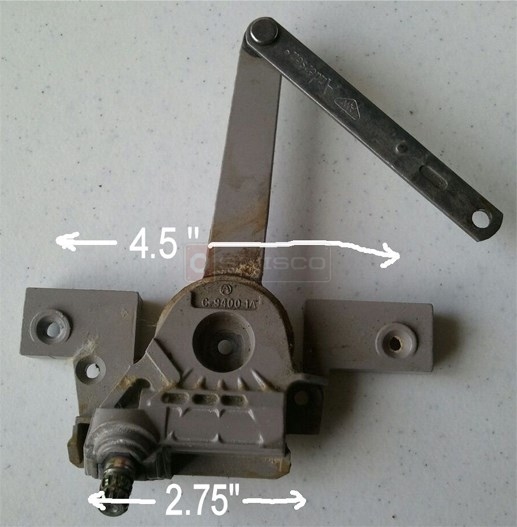

does the adapter plate change the 4.5 inch dimension in the photo attached so that I can use the 39-264?

Tom from SWISCO responded:

April 18, 2017

Thank you for your inquiry. Take a look at our 39-264 split arm crank and let us know if this is what you have been looking for.

A quick learner says:

April 18, 2017

The 39-264 you recommend is not 4.5 inches mounting hole to mounting hole.

I need something to replace what is in my picture.

Paul from SWISCO responded:

April 20, 2017

Andersen discontinued your old operator and recommends 39-264 . You may need the 39-362 adapter plate, which raises the operator base height. It doesn't change the mounting hole distance. You will also need a new cover, the 39-152 , because the old cover won't match. Hopefully this helps!

Andersen Split Arm Crank

39-264

$26.35

Andersen Classic Operator Cover

39-152

$5.79

Casement Window Handle, fits Andersen

39-286

$6.92

Andersen Casement Operator Adapter Plate

39-362

$20.25
