3CG Balance Replacement

Question

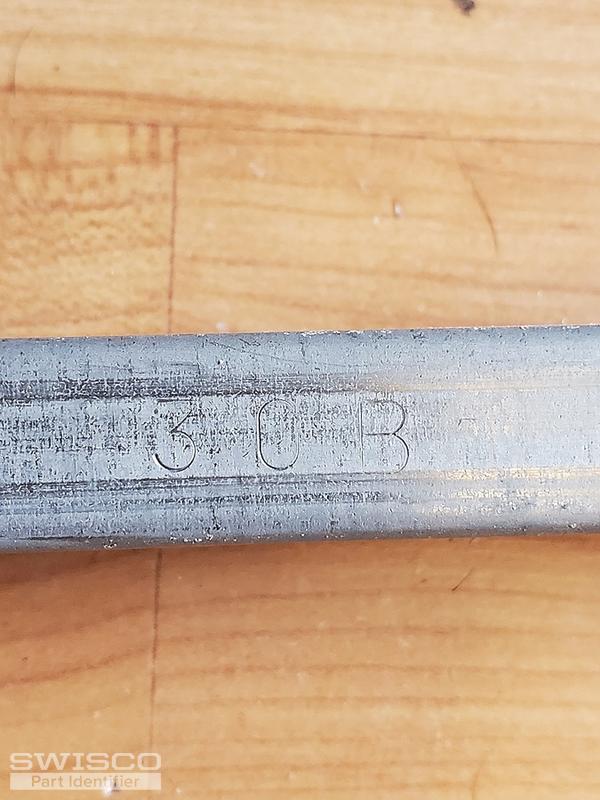

Hello. I am trying to find the right replacement for this. The balance is for a non-tilting window. It measures 31" length x 1/2" width. It appears to have "3CG" etched on the balance. Please let me know if there is anything else needed to help identify this. Thank you!

Casey · Accepted Answer

Hello,

It looks like you have either our S351-31, with a 15-002 bottom attachment, or S390-31, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 3020 spring strength option for your replacement balances based on the stamp, which appears to be (30 B). Thank you!

Comparison of the S351 and S390 balance shoes.
