4 Peach Tree Windows with G2890 Type AE Sashes

Quick Learner from Kingsport, TN

Sep 30, 2022 12:37 pm

I have 4 double hung Peachtree windows from 1990 that need new balance spring assemblies. The sashes, both top and bottom, are labeled G2890 Type AE.

The balance assemblies measure 26 1/4 inches long, and each sash weighs approximately 15.4 pounds.

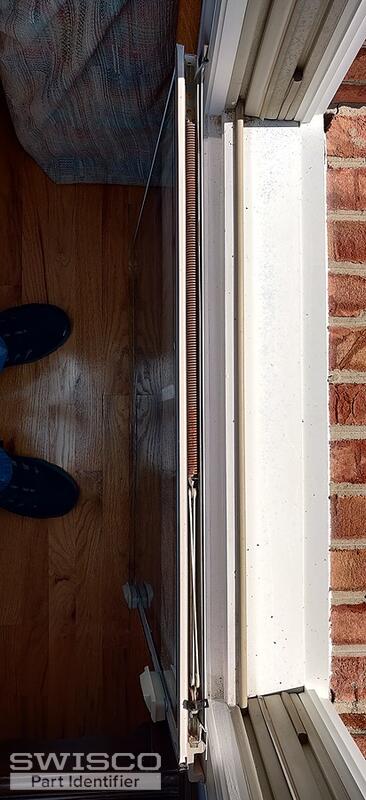

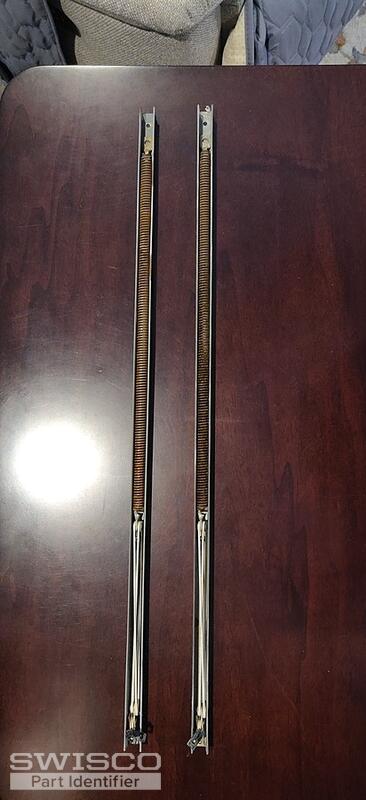

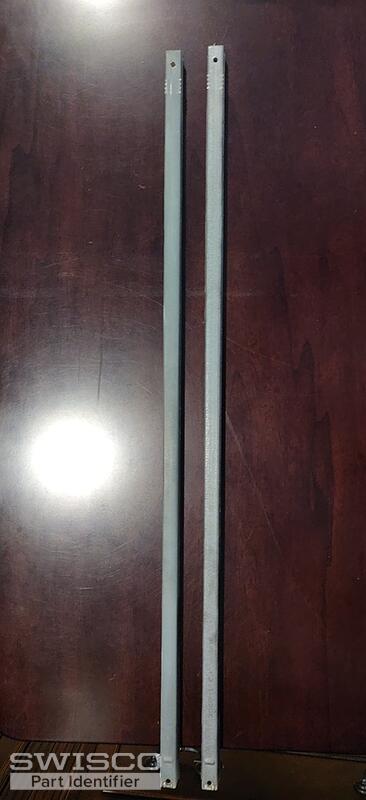

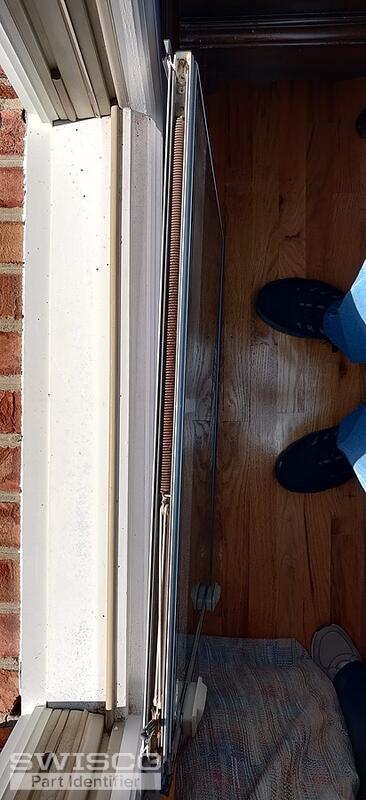

I have included pictures of installed assemblies, plus both sides of the assemblies after removal.

Can you help me with replacements for these units?

Thank you,

Jim

4 user uploaded images

8 Replies

Tom from SWISCO

Oct 4, 2022 2:35 pm

Hello, Jim! Thanks for reaching out to us. It's tough to make out your balance design from these photos but I think you might have a match for our S745-26. Look it over and let me know what you think!

Quick Learner from Kingsport, TN

Oct 4, 2022 4:27 pm

It looks like the S745-26 might work, except that I can't tell from your picture if there is a hole in either end from front to back. From what I can see, it looks like these units are meant to mount with a pin going through the balance unit from side to side.

What other pictures could I provide that would allow you to make a better judgment on whether these units would work on my windows? I can give you magnification on either end, or anything else that might help. I did find a stamp that I had not seen before. The back of each unit is stamped with 3060 1 EJ. I would be willing to drill a hole on each end to mount the unit if one is not provided, and if there is room to drill the holes.

Tom from SWISCO

Oct 5, 2022 11:44 am

There is in fact a hole on the face of the S745-26 balance, right at the top, that's used for installation. Reviewing our product photos I see now that it's not actually visible, so we've added a new picture that will hopefully make that more clear. Sorry for the confusion!

Based on this detail, does that verify the Series 745 for use with your window?

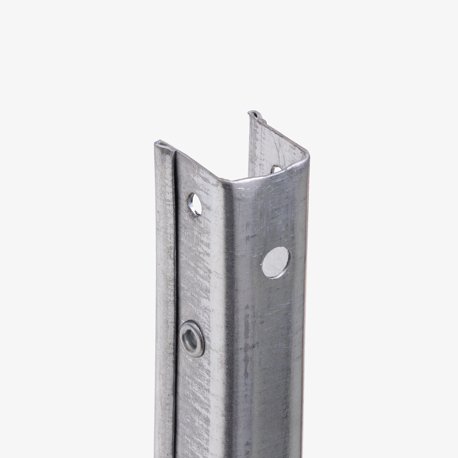

Top view of S745

Quick Learner from Kingsport, TN

Oct 5, 2022 3:16 pm

Is there one on the other end also (the end that has the pulley and terminal plug)? If there is, I think we're good to go.

Thank you,

Jim

Tom from SWISCO

Oct 6, 2022 8:44 am

Yes, there is! As far as I know, this Peachtree balance was only ever made one way. I don't believe they designed alternative configurations.

Quick Learner from Kingsport, TN

Oct 6, 2022 9:52 am

Thank you, I will submit an order within the next couple of days.
I purchased and installed your balance assemblies on 6 other windows recently, and was very happy with your product. I am grateful that you are supplying parts for these obsolete windows.

Tom from SWISCO

Oct 6, 2022 10:02 am

Awesome, we really appreciate your business! Please let me know if we can be of any further assistance for this or any other project.
