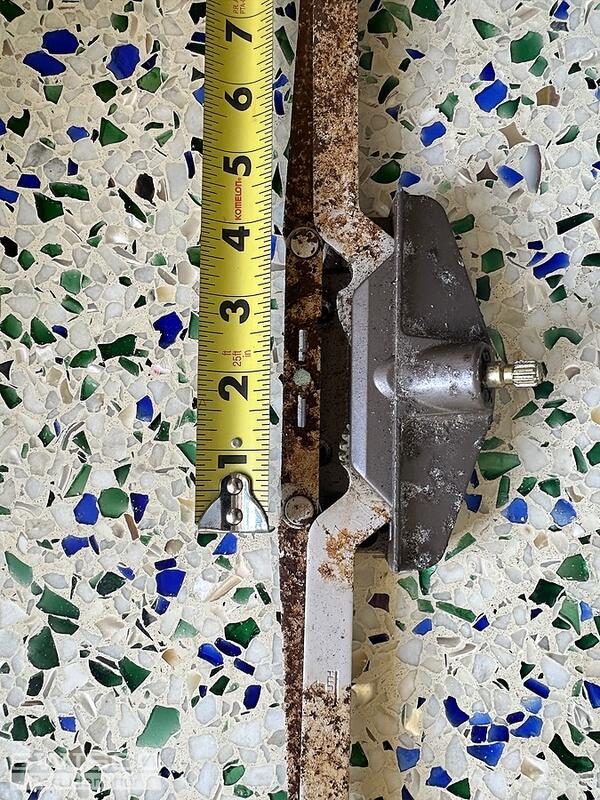

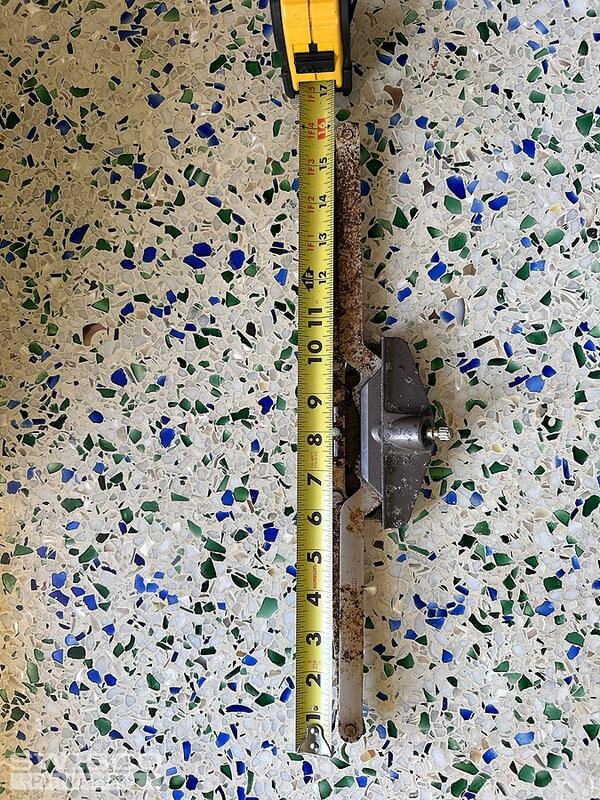

4" arm, 16" folded

Thanks for posting! Your awning window operator can be replaced with our 39-140 Dual Arm Crank. This operator is compatible with the 39-114L Crank Handle.

You may also need either the 39-170 or the 39-177 depending on the type of bracket your operator interacts with.

Dimensions for 39-140
