4 springs for bedroom windows

Start a new Discussion

Quick Learner from Gig Harbor WA

Sep 14, 2025 7:07 pm

good morning-
I am looking for 4 replacement springs to match these.
Do you charge shipping?

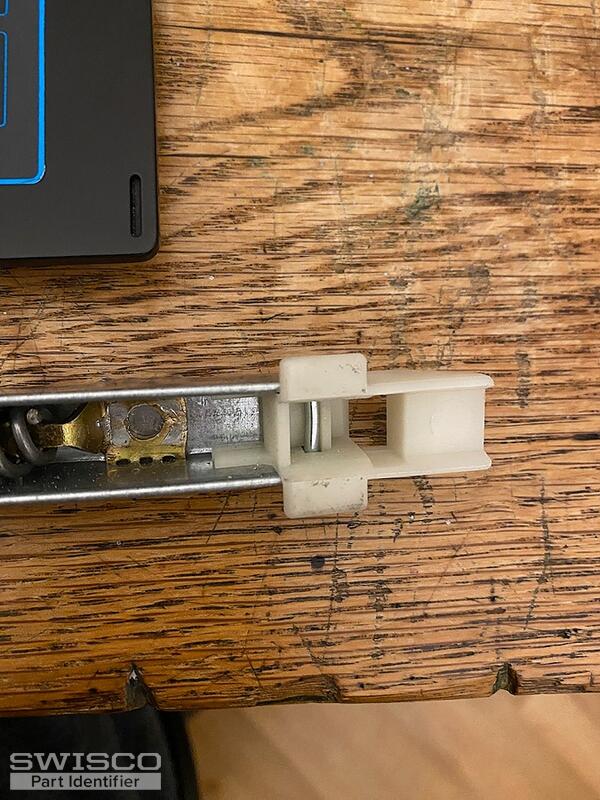

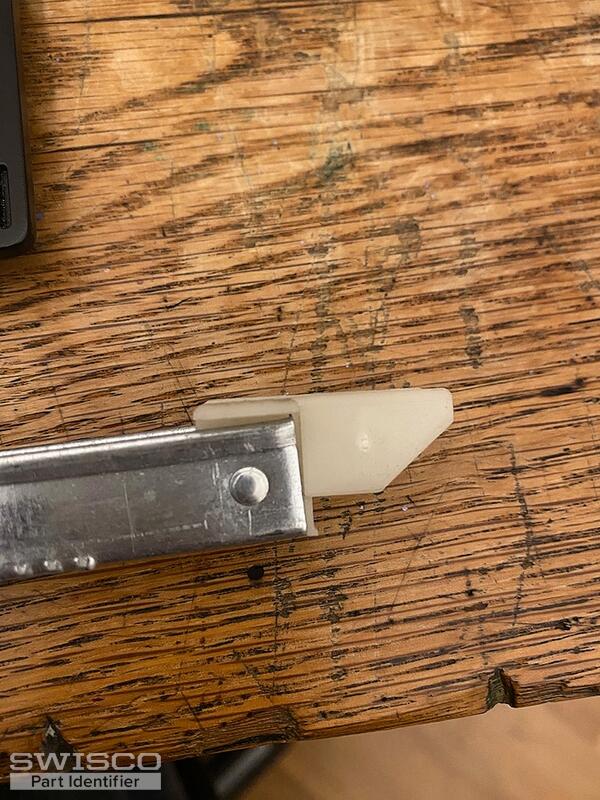

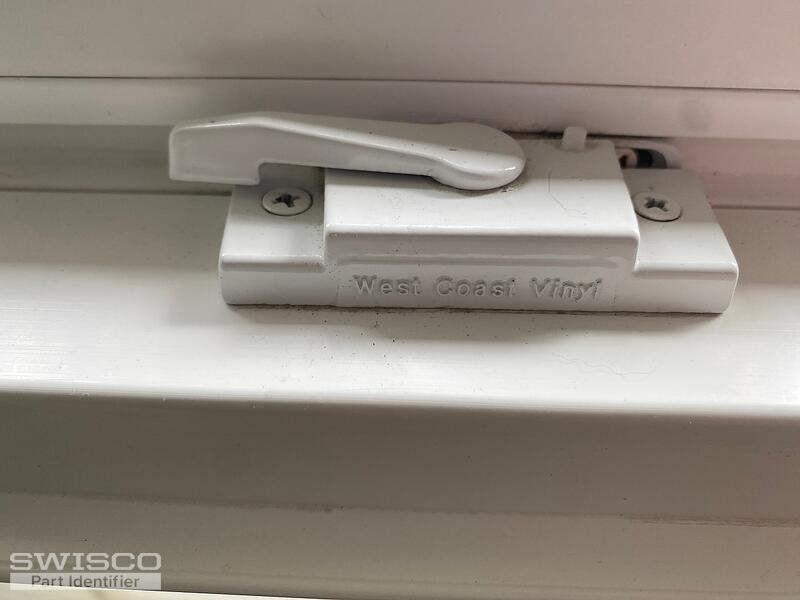

4 user uploaded images

10 Replies

Emily from SWISCO

Sep 18, 2025 2:20 pm

Hi there!

Thank you for reaching out to us. We can help with this, but we'll need more information. Can you upload photos of the top fitting? That will allow us to ID your balance.

Quick Learner from Gig Harbor WA

Sep 18, 2025 6:24 pm

I am sorry but what do you mean by top fitting?

Emily from SWISCO

Sep 19, 2025 7:53 am

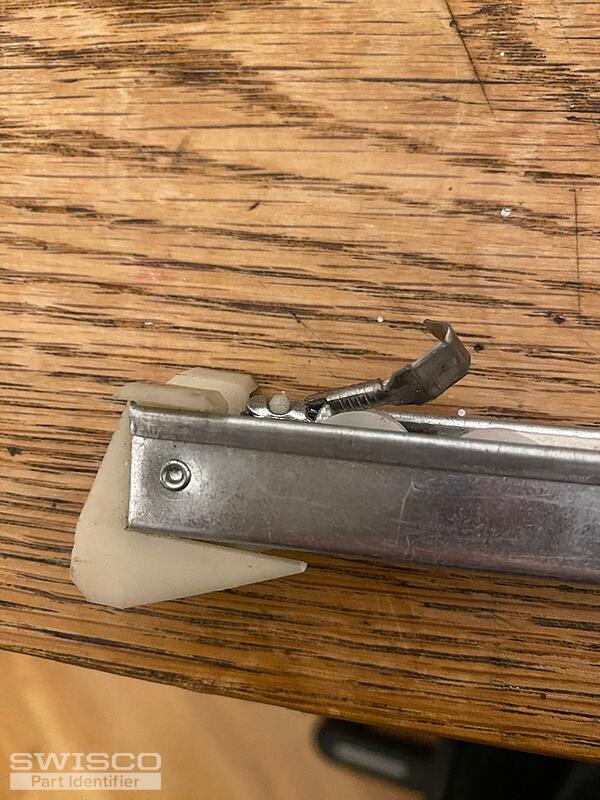

The top fitting is the attachment that's at the other end of the metal channel. The video below will explain this.

Quick Learner from Gig Harbor WA

Sep 19, 2025 9:29 am

I need to add another window. I will submit the photos later after you give me the total for the four springs and shipping.

3 user uploaded images

Emily from SWISCO

Sep 19, 2025 12:06 pm

Thank you! Your balance appears to be a match for the S380-25 or S385-25 with the 2450 stamp option. The important difference is the depth of the bottom shoe, so you'll have to measure as shown below.

Pricing can be found on the balance's store pages, and shipping will be calculated at checkout.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Gig Harbor WA

Sep 22, 2025 8:06 pm

For 24 5 FW CMC 4 windows, they are 24 7/8" channel length and 1 3/32 shoe.

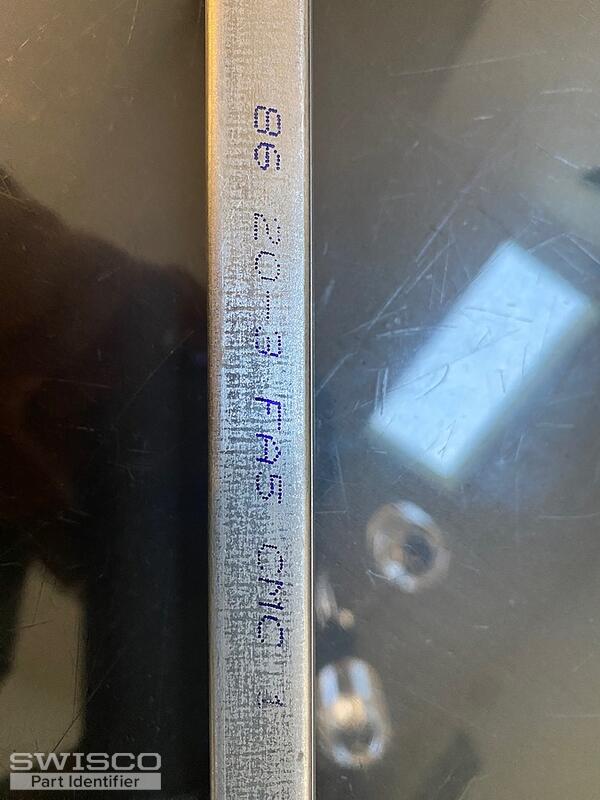

The second window is 86 20-3 FA5 CMC 1. The channel length is 24 7/8" and the shoe is the same at 1 3/32."

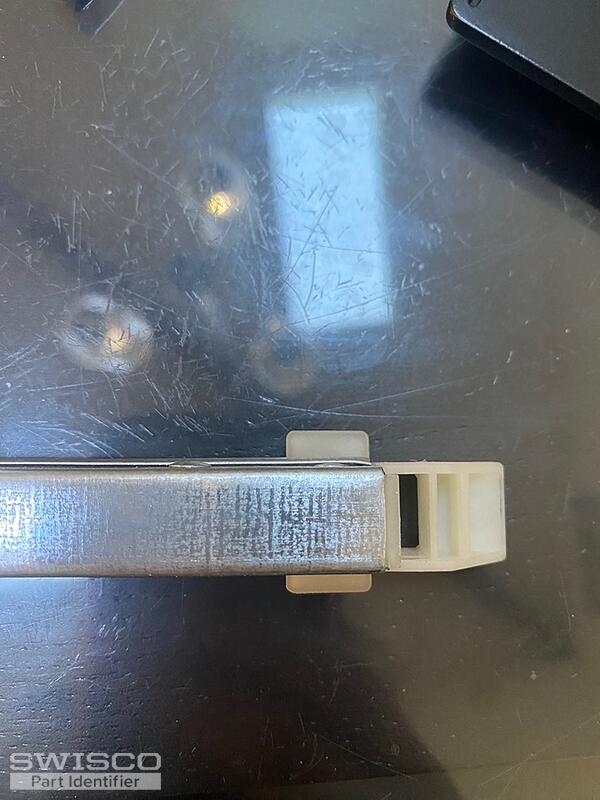

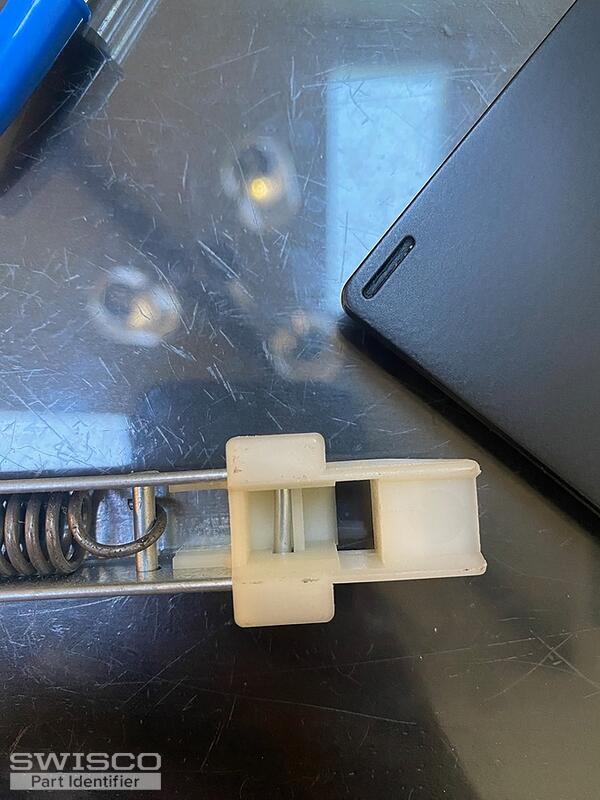

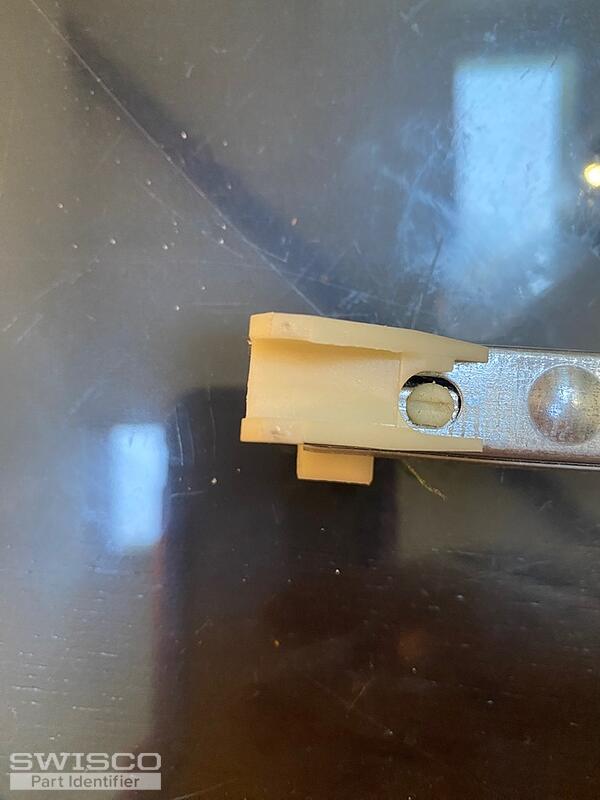

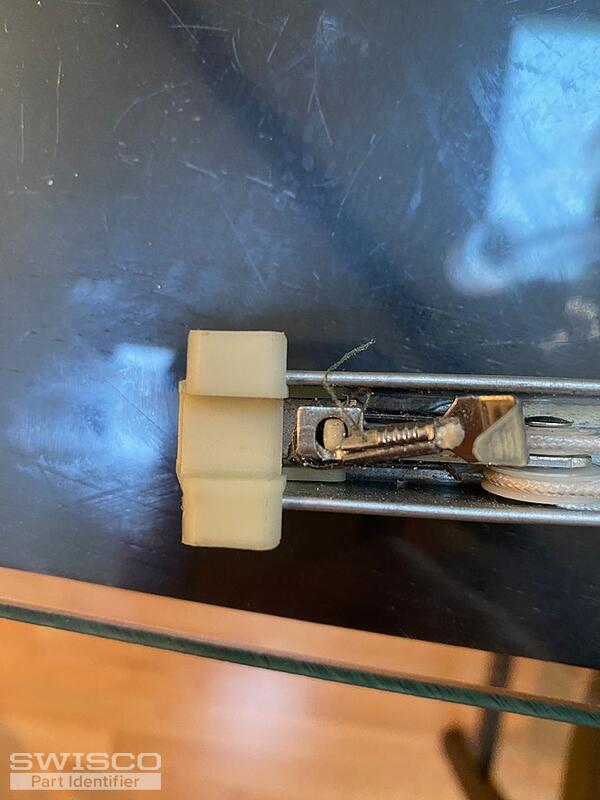

5 user uploaded images

Emily from SWISCO

Sep 23, 2025 3:51 pm

That's strange. The 24 5 balance's channel should be 25" long, and the 86 20-3 balance's channel should be 21" long. Can you double-check and confirm this for us?

Please note that the 86 20-3 balance must be a custom order. The 86 indicates that your balance includes a special washer that regulates the pulley system, which our other stock balances do not have.

Quick Learner from Gig Harbor WA

Sep 27, 2025 10:14 am

I am sorry! I learned that my yardstick is not as accurate as my tape measure and I made a typo.
For 24 5 FW CMC 4 windows, they are 25" channel length and 1" shoe.
The second window is 86 20-3 FA5 CMC 1. The channel length is 21" and the shoe is the same at 1."

Emily from SWISCO

Sep 29, 2025 3:43 pm

Thank you kindly for confirming! I'm going to email you a purchase link and price quote for (2) 86 20-3 balances, which you can use to place an order on our website. Note that there is also a 5-6 week lead time.

For the 24-5 balance with the 1" deep shoe, see the S380-25 with the 2450 stamp option. This is a stock balance, so it can't be included in the purchase link.

Please let us know if you have any questions.
