Contractor from Huntington Beach, CA
Jan 11, 2024 1:09 pm
These wheels are from a large 4 x 8 mirror closet door (2 each).

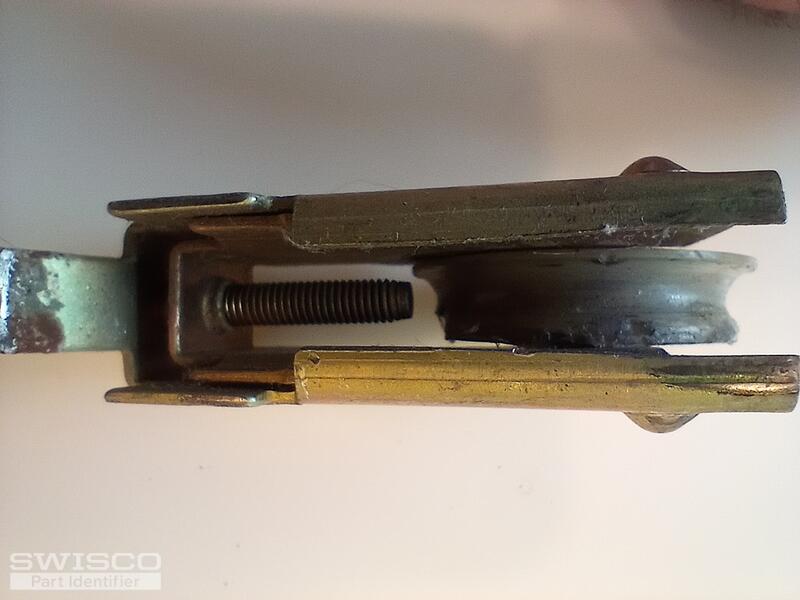

They mount on the bottom outside corners of the door, tab up, facing the outside edge, behind a valance, they are not in aq channel, with a 2" sheet metal screw through the hole in the tab, with the tab facing the outside edge (note the picture shows the tab bent away from the body due to damage, it is actually nearly straight up, originally) Sorry I didn't photo the installed part.

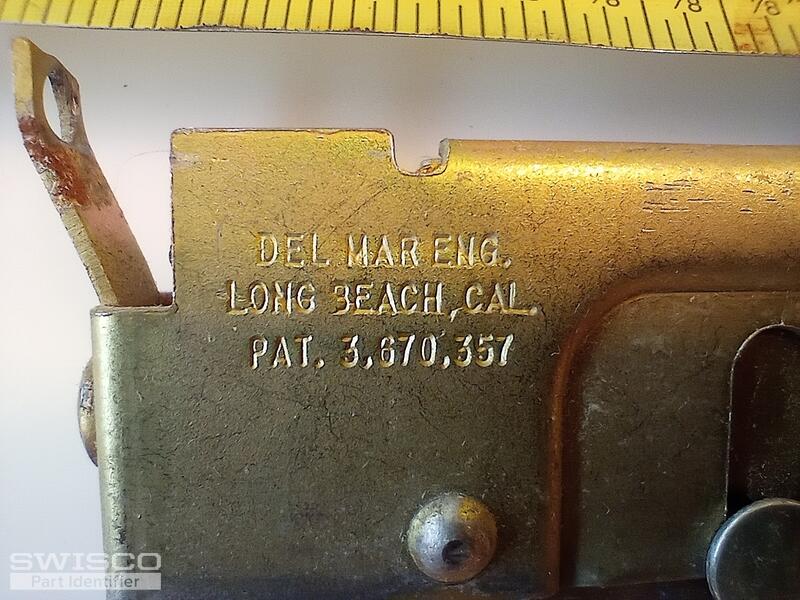

The wheels are stamped with:
DEL MAR ENG.
LONG BEACH, CAL.
PAT. 3,670,357
I straightened the mounting tab, bent the body back parallel to the wheel and temporarily reinstalled them, I have 4 needing replaced and 4 for an additional bedroom with similar doors.
Thanks, Gregg
They mount on the bottom outside corners of the door, tab up, facing the outside edge, behind a valance, they are not in aq channel, with a 2" sheet metal screw through the hole in the tab, with the tab facing the outside edge (note the picture shows the tab bent away from the body due to damage, it is actually nearly straight up, originally) Sorry I didn't photo the installed part.
The wheels are stamped with:
DEL MAR ENG.
LONG BEACH, CAL.
PAT. 3,670,357
I straightened the mounting tab, bent the body back parallel to the wheel and temporarily reinstalled them, I have 4 needing replaced and 4 for an additional bedroom with similar doors.
Thanks, Gregg
5 user uploaded images
1 Replies
