47" non-tilt window channel balances

A home owner from Winslow, NJ says:
May 18, 2020
Need two (2) custom 47" non-tilt window channel balances
Thumbnail of the uploaded file named IMG_1216.JPG
Thumbnail of the uploaded file named IMG_3800.JPG
Thumbnail of the uploaded file named IMG_7606.JPG

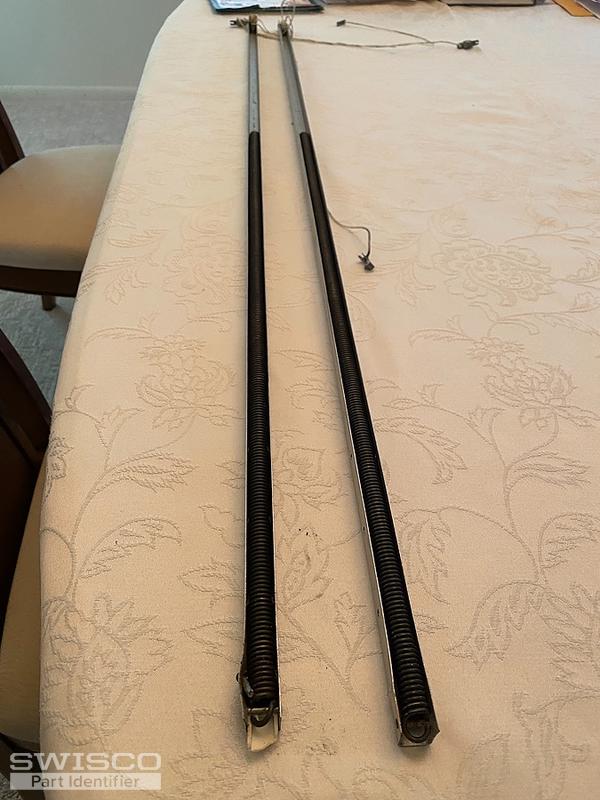

Thumbnail of the uploaded file named IMG_9240.JPG

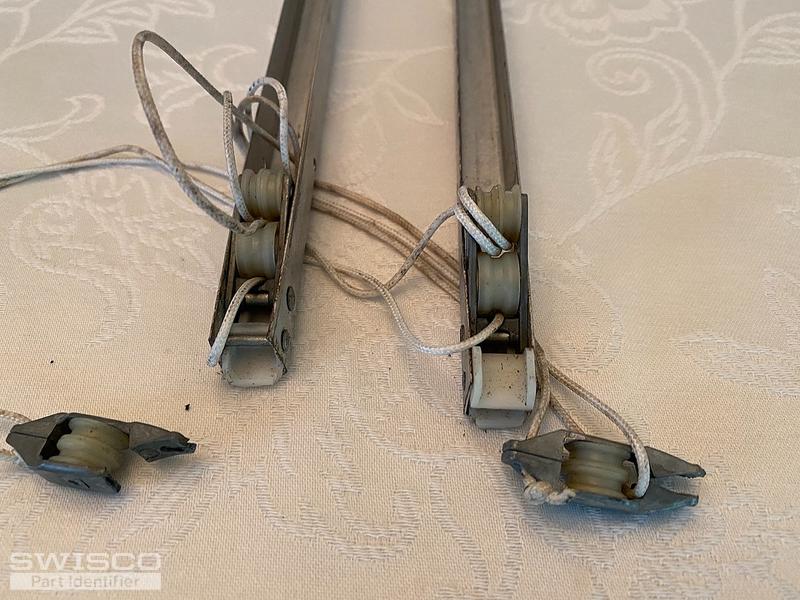

Thumbnail of the uploaded file named IMG_2268.JPG
A home owner from Winslow, NJ says:
May 19, 2020
Need custom 47" window channel balances x3

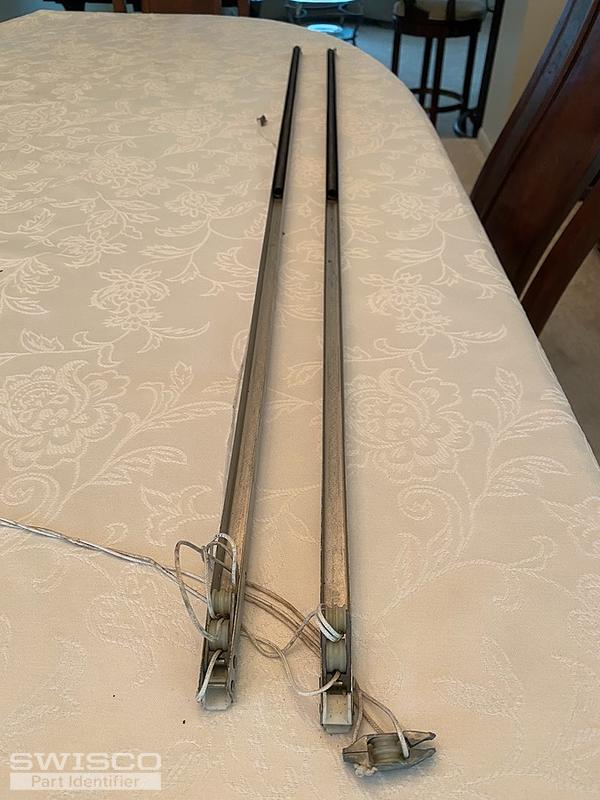

Thumbnail of the uploaded file named IMG_7606 3.JPG

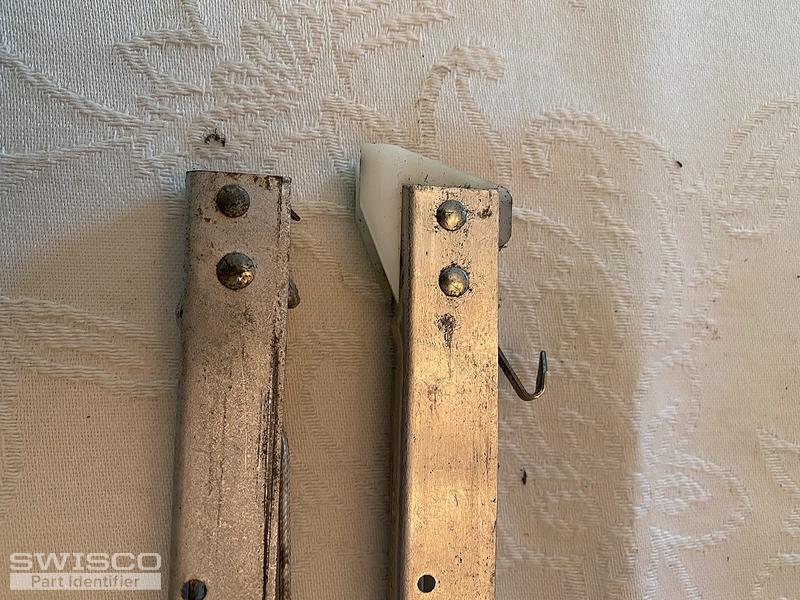

Thumbnail of the uploaded file named IMG_1396 3.JPG

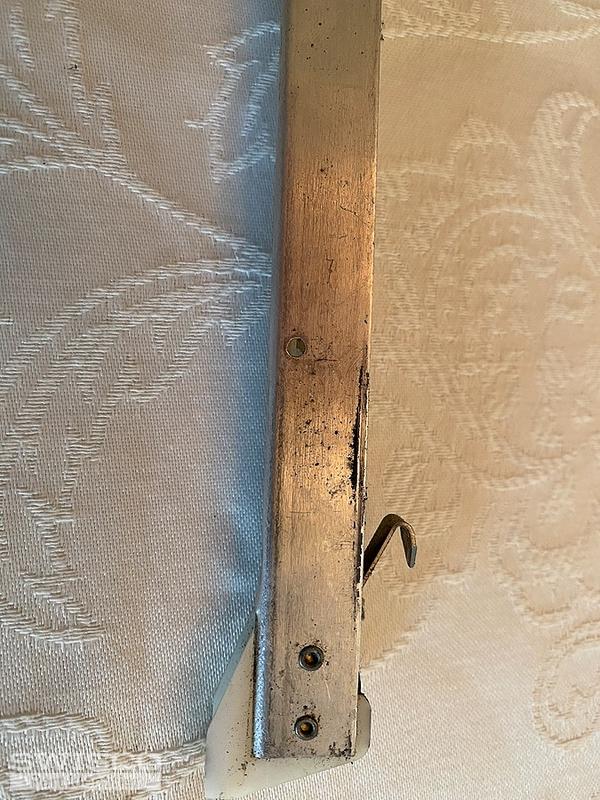

Thumbnail of the uploaded file named IMG_3181 3.JPG

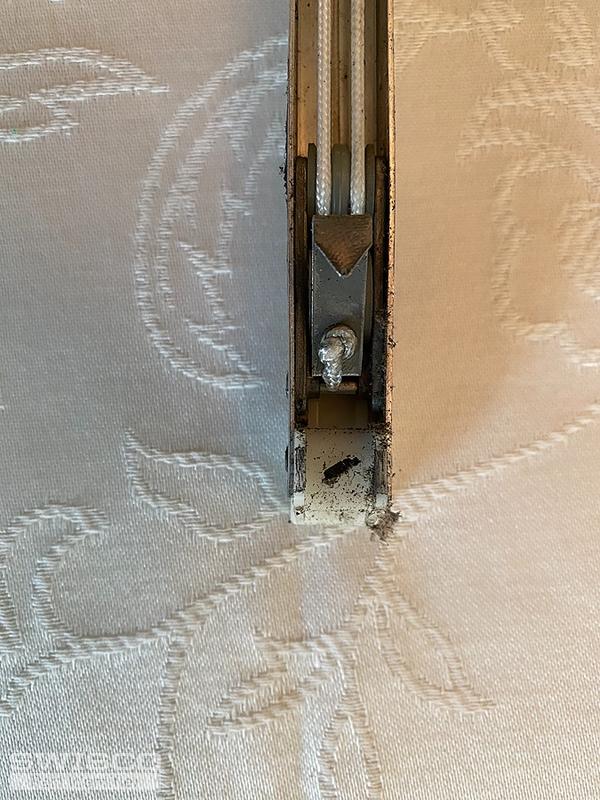

Thumbnail of the uploaded file named IMG_0036 3.JPG

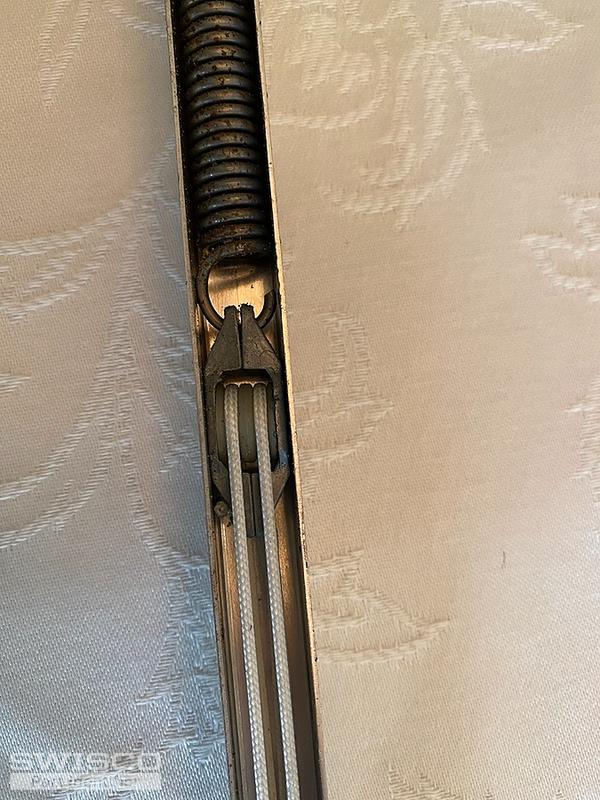

Thumbnail of the uploaded file named IMG_0965 3.JPG
Profile picture of Paul
Paul from SWISCO responded:
May 21, 2020

Thanks for contacting us. I'm having a hard time making out your balance Series. The Series is determined by the combination of nylon fittings and is a very important detail.

Your bottom nylon fitting, shown in your 7th and 8th picture, looks like our 15-001. However I don't know what the top nylon fitting could be. I think that's it in your 9th photo but I'm not sure. Can you show it to me from a couple more angles?
A home owner from Winslow, NJ says:
May 21, 2020
Okay, thank you. I have attached a photo from the top nylon fitting from one of our shorter windows. The other photo attached is all that was left from the top fitting of the broken balance. The third photo shows the top part of the window where the fitting goes into, so I'm fairly certain the fitting on the shorter balance is/was the same as the one on the top of the longer balance. Hope this helps, and thank you for your time and help. If you still need a better photo of the top fitting, I can get the other window out again to take more.

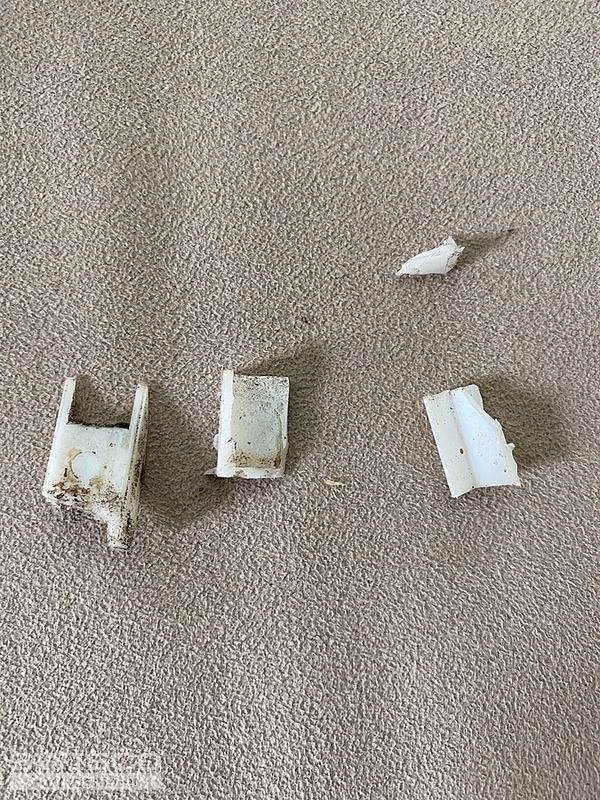

Thumbnail of the uploaded file named IMG_7714.JPG

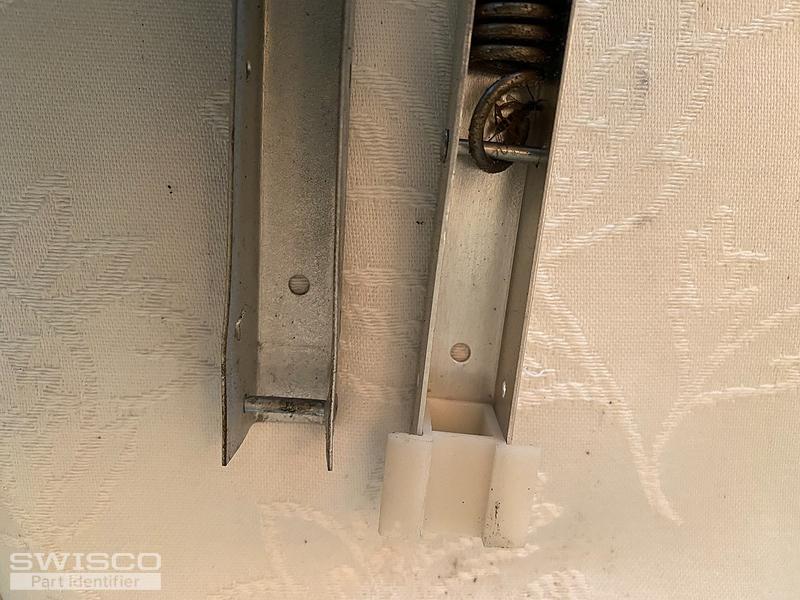

Thumbnail of the uploaded file named IMG_7720.JPG

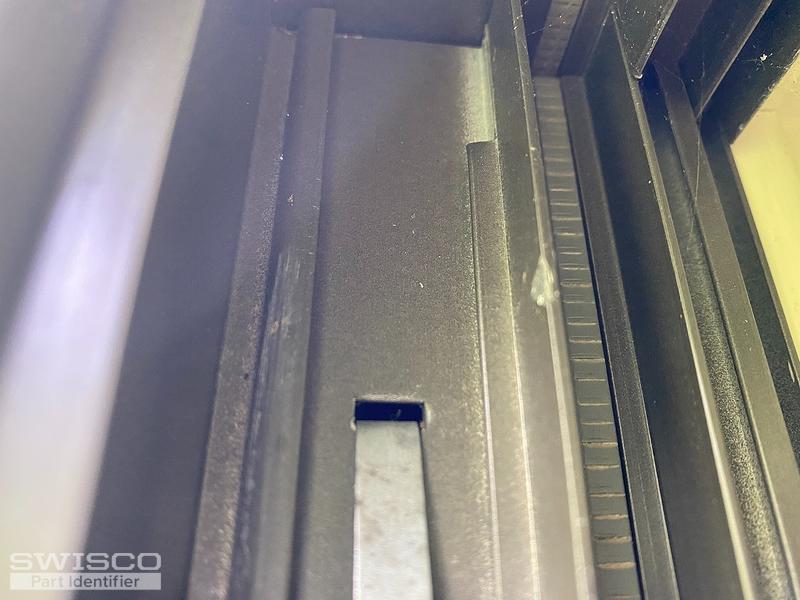

Thumbnail of the uploaded file named IMG_0379.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 26, 2020

Thank you for your continued patience. This appears to match our Series 370 channel balance, which uses a 19-004 top and 15-002 bottom nylon fitting. This will have to be a custom order due to its size, though. I'll email you an order link and price quote right now for two.

Let us know if you had any questions.
