5/16" Corner for screen

Handy Person from Augusta, ME
Jun 7, 2023 10:47 am

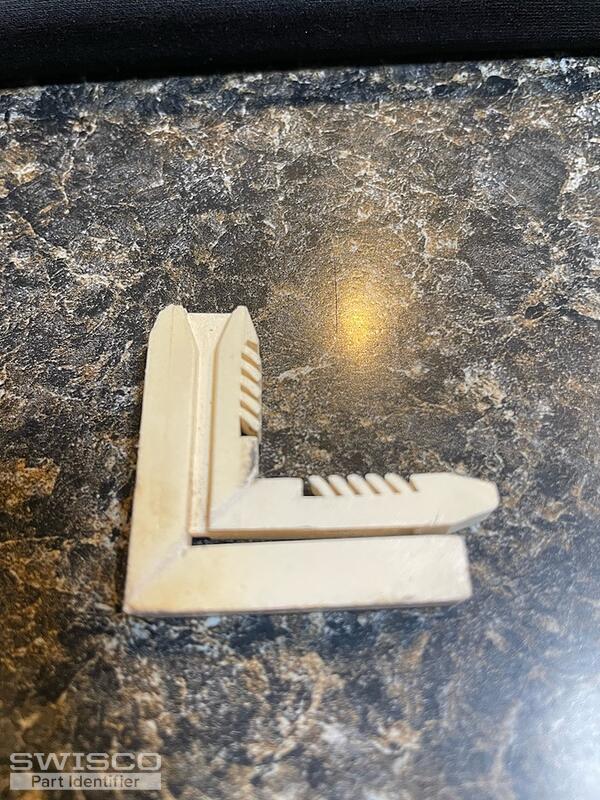

Looking to locate a few of these for a broken screen. Any help would be great. shorter side length is 1 3/8" the longer side 1 7/16". Over all thickness is 3/16"
1 user uploaded image
2 Replies

Emily from SWISCO
Jun 9, 2023 9:41 am


Thanks for reaching out to us! This is an old nylon double-leg corner that hasn't been made in a long time. The good news is that you can use our 95-002 corner key as a replacement. What you do is use the 95-002 to hold the frame together while you install it into the channel that is closest to the screen groove. You'll then need to use one leg of your existing nylon corner (or, alternatively, one leg of the 95-002 ) to hold inside the slide latches on the bottom channel of the screen frame. It's a little awkward, but it does work.
