5/8" Top Sash Guides

Handy Person from Florida

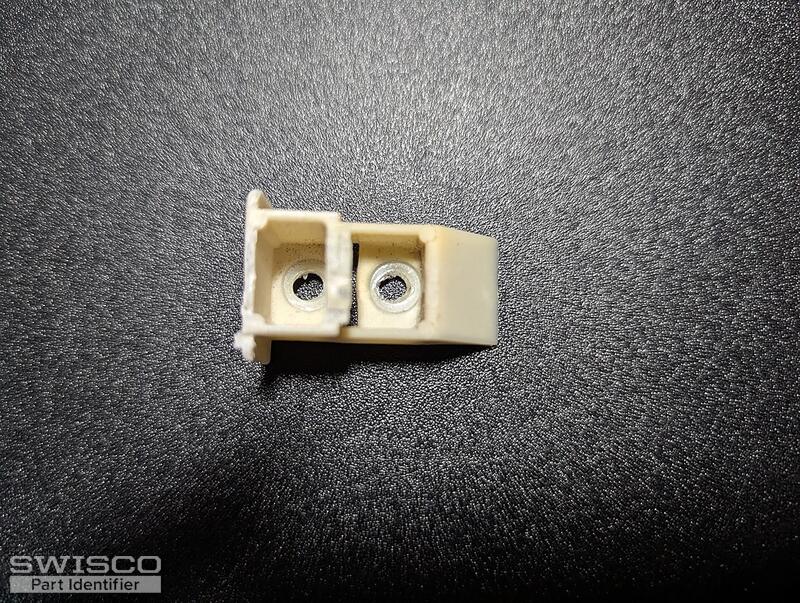

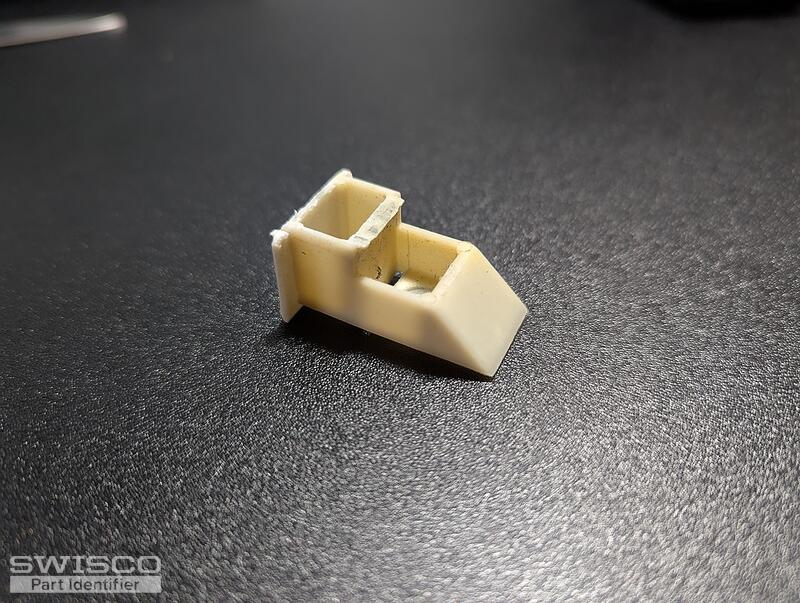

I'm looking to replace the attached 5/8" top sash guides in my windows.  I am also replacing the balances with your 377 model.  Let me know of any questions and thank you!
5 user uploaded images
6 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

Your top sash guide resembles the 18-009. If you'd like us to confirm the balances needed for your window, we would need to see photos of an intact assembly to determine if the end fittings match the S377. Thank you!

Detail of 18-009
Detail of 18-009

Side view of 18-009
Side view of 18-009

Handy Person from Florida

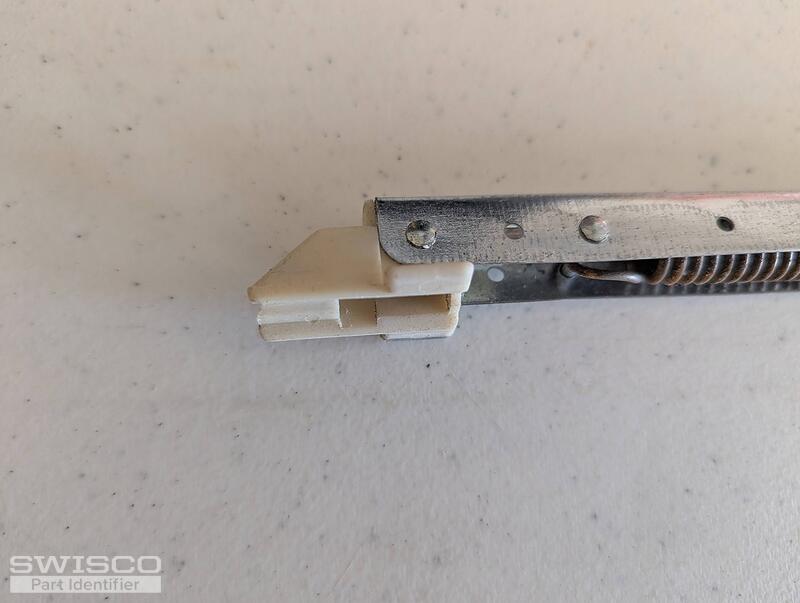

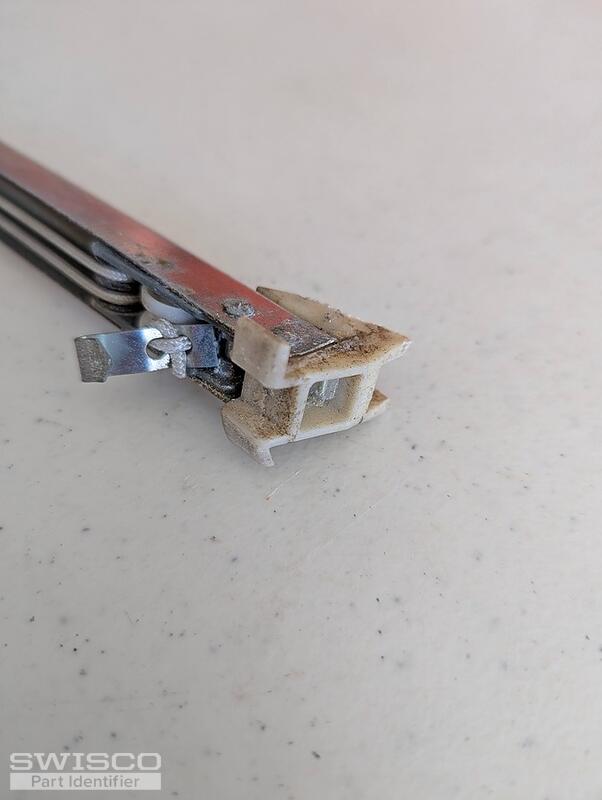

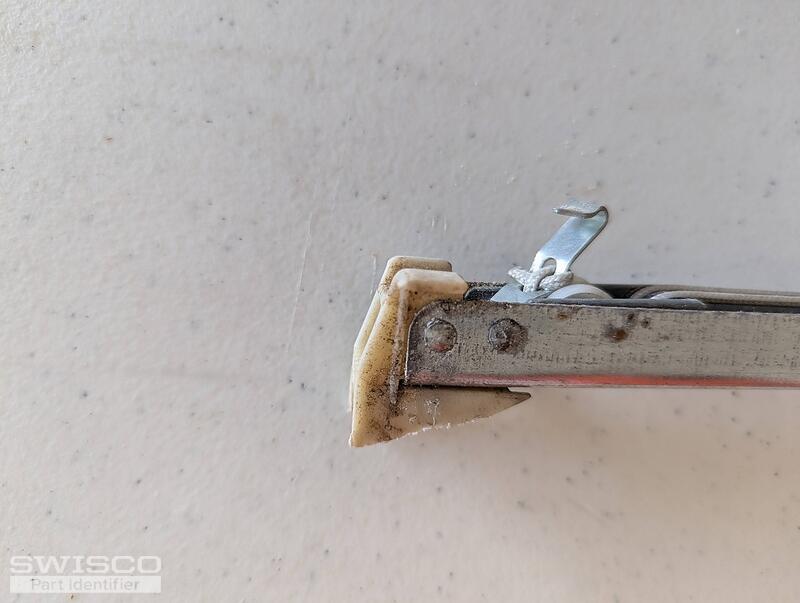

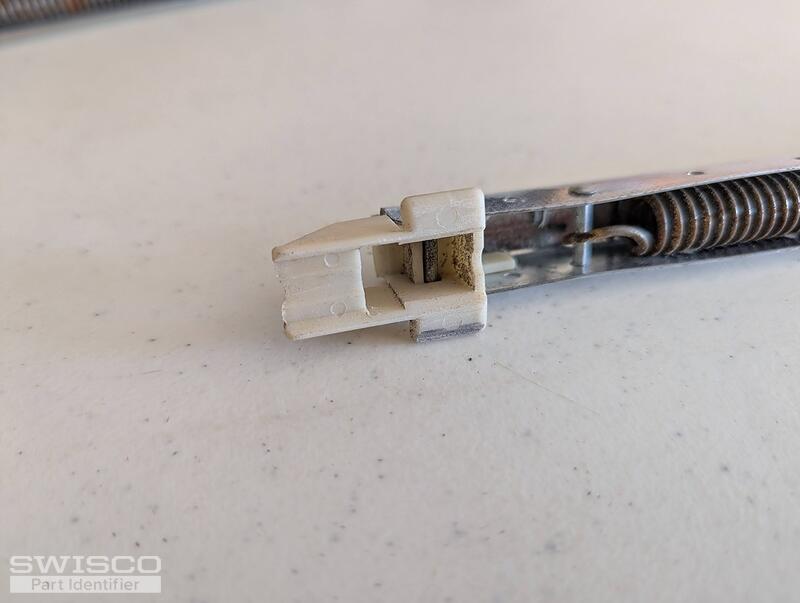

Thank you, it appears that the dimensions of my top sash guides match your 18-009.  Also, I've attached photos of my balance assembly so you can confirm them as S377.  Appreciate your help.
4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Your assembly looks like a closer match to the S380 or S385 channel balance. You’ll need to measure a balance with an undamaged bottom fitting as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need to locate the stamp code on the metal channel to choose the corresponding strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Handy Person from Florida
Yes, those are a closer match for my balances.  My bottom shoe measures 1-3/32" so I'm going to go with the S385.  They are stamped "28  2" and the windows are 14 lbs, so that should be the 2802 option.  Thank you for all your help!
Casey
Casey from SWISCO
SWISCO
Expert

Great, then you should be good to go with the S385-29 (2820) channel balances as long as your metal channel measures 29" long.

How to measure the length of the Series 385 channel balance.
How to measure the length of the Series 385 channel balance.
