5/8 x 25" spiral balance non tilt

Quick Learner from Baltimore MD
Feb 15, 2023 12:57 am
Looking for spiral balances, feet, tool, latch & seals

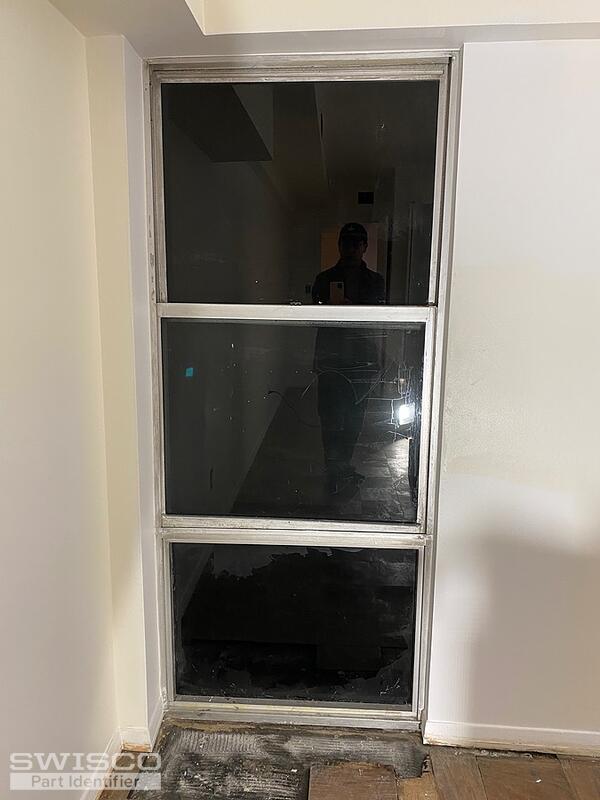

3 sashes per window - each sash 30"W x 24"H
2 sets of windows
7BC624BC-B32A-4F16-B7BC-C71D87682DCA F43D00C0-A641-42BB-864E-C6DDB038D1DF B552E507-560D-4342-8D40-F8D2460BA561 0CC0D0E6-0FD8-4DFE-9E09-80EE87C01905
4 user uploaded images
3 Replies
Paul
Paul from SWISCO
Feb 15, 2023 4:12 pm
SWISCO
EXPERT

Hello,

I believe that you can use the S500-25 red tip spiral balance with the 17-012 bracket to replace the old-style balances shown in your photos.

See generic instructions for installing these balances below:

To install these balances, you would drop them in from the top on the side of the sash. You'll use the #33-011 screw to attach the balance tubes at the top of the jamb. Then, raise the sash and have someone hold it up while you attach the bottom bracket #17-012 with #33-071 screws while the U-shape opening corrals the spiral. Use your finger to raise the spiral to the bracket. Next, attach the 75-004 charging tool and turn the spiral clockwise three turns before hooking it to the fork of the bracket. Repeat the other side and try the sash. If the sash creeps down, raise and hold up the sash and give the balances another turn or two.

Quick Learner from Baltimore MD
Feb 16, 2023 8:03 am

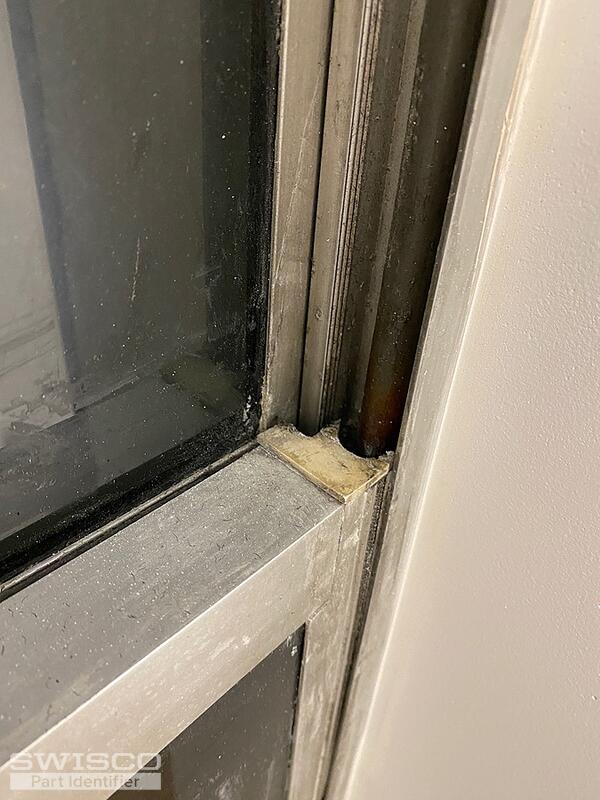

How do I remove this top sash guide without breaking it - if it breaks do you have a replacement?
4BC6838B-5C00-4980-A337-8FF510FA7628
1 user uploaded images
Casey
Casey from SWISCO
Feb 16, 2023 8:43 am
SWISCO
EXPERT
We do carry a small selection of top sash guides used with spiral balances, which you can view here. Removing the top sash guide would require taking the sash out of the frame. In some cases, you can detach the balances on both sides and raise the sash before pushing it to one side to see if you can get enough clearance to remove it from the frame.
If not, you may have a type of window that requires partial disassembly of the frame or may not be able to be removed at all. Unfortunately, many older non-tilt windows are designed in such a way that they are not meant to be easily repaired.
