60" Sliding Door Hardware

Quick Learner from meridian Idaho

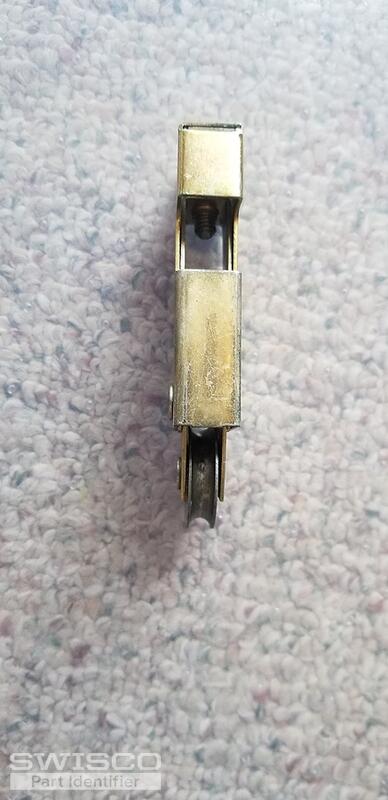

I have a 60" sliding patio door , vinyl, and need some rollers and will probably like to replace the track [ door put in when the house was built in 1999. The track just snaps in . Wheels are 1.25 in. diameter , body of the housing is 3 1/8 inch wide thank you!
3 user uploaded images
5 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I'm very confident that we can get you this roller, but I can't quite make out what you have from these photos. If at all possible, can you show me a clear shot of the top portion of the housing? Can you also confirm the height and thickness? The height looks like it's a little over 1-1/4" but I would like you to tell me for sure, if possible.

Quick Learner from meridian Idaho
The wheels are 1 1/4 , height, the height body is 1 1/4 and since the wheels sit a little below the body of the unit the over all height is about 1 1/2. Sending a pic of the top of the unit
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Thank you! How about our 81-166S? The design is similar and its height is the same at 1-1/4". Let me know what you think!

Dimensions for 81-166s
Dimensions for 81-166s
Quick Learner from meridian Idaho
Ordered 2 81-166S rollers ,thanks for the help
