Hello, I purchased a home and need to repair some of the windows.
they have the spiral type balancers. However they are nothing like any on your website or any where else I googled. These are riveted together and appear the entire double hung assembly was installed as a unit in the window opening with no intent to be able to repair later without completely removing the sashes.

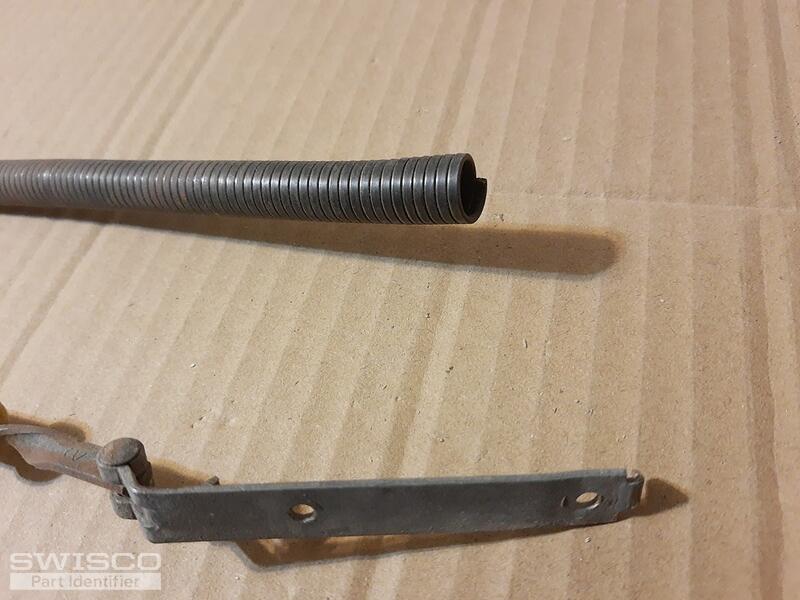

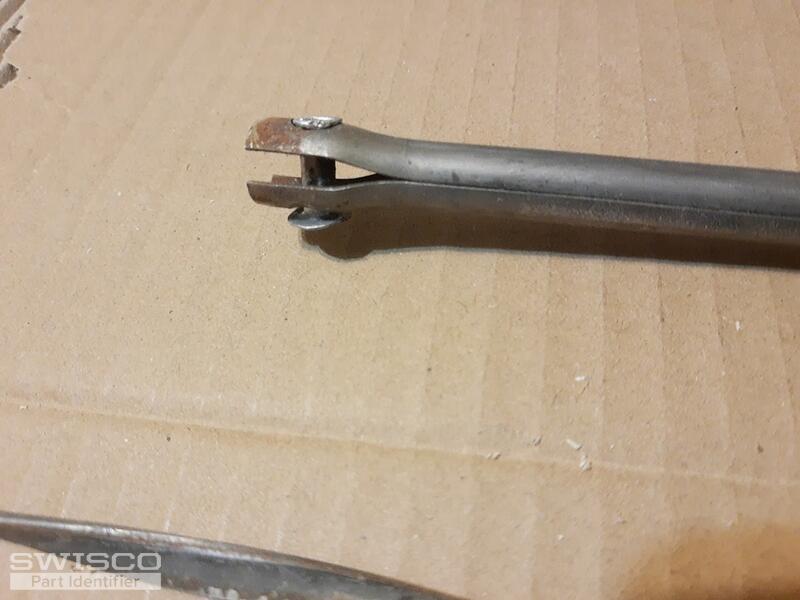

The only thing that appears wrong with the non-operational windows it the spiral bar has broken. These are actually attached to the bottom of each sash with "spiral nails" rather than screws. However once detached at the bottom they can be threaded out and removed ( with the plastic bearing captured on the spiral bar) on these the spring is actually the tube rather than the spring being in a tube. The entire assembly is covered by a thin aluminum channel. I want to know if it is possible to replace just the spiral bar ( with the plastic bearing and pivoting sash clip ) If not that, is there a tube assembly would be a suitable replacement? NOTE: the assembly in the photos is not the only size. ( There are different size windows that have broken balancers. Once availability is determined I can supply the sizes of the ones needed.)
One other question; for the remaining, not broken balancers what is the recommended lubricant for the spirals?
I took more pictures but your limit did not allow them to be added. If you need more, just let me know.
Thank you
Bill
Bob from SWISCO responded:
November 30, 2021
Hi Bill. Start by looking at our Series 500 Spiral Balances for non-tilt windows. These have an outer tube diameter of 5/8". Compare and see if these match what you need. You could use the 17-012 Brackets with these replacement balances. For spiral balances, we recommend coating the inside spiral with white grease. Give that a try and see how they function after. You may also want to lubricate the jamb track in which the spiral balances are installed with silicone spray. If neither of these options work, then it may be time for new balances. |
