7 window balance shoes are broken

A quick learner from San Antonio, TX says:

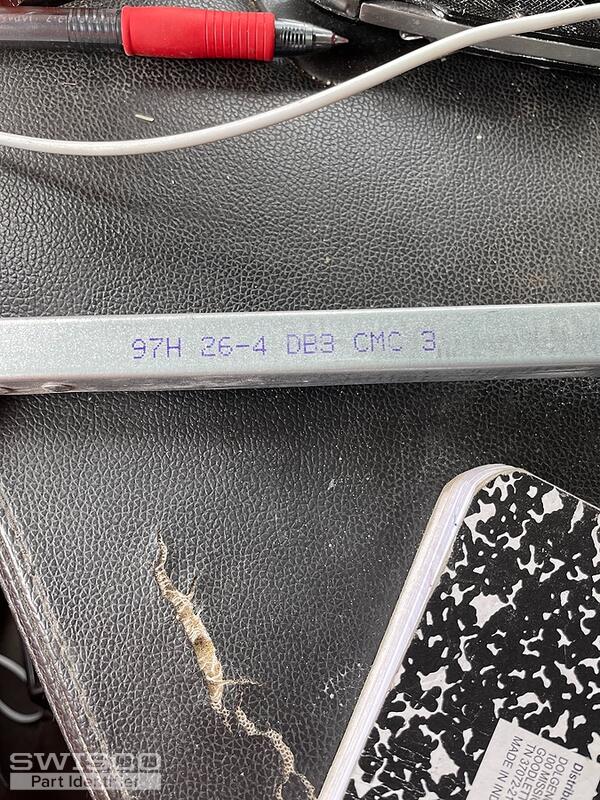

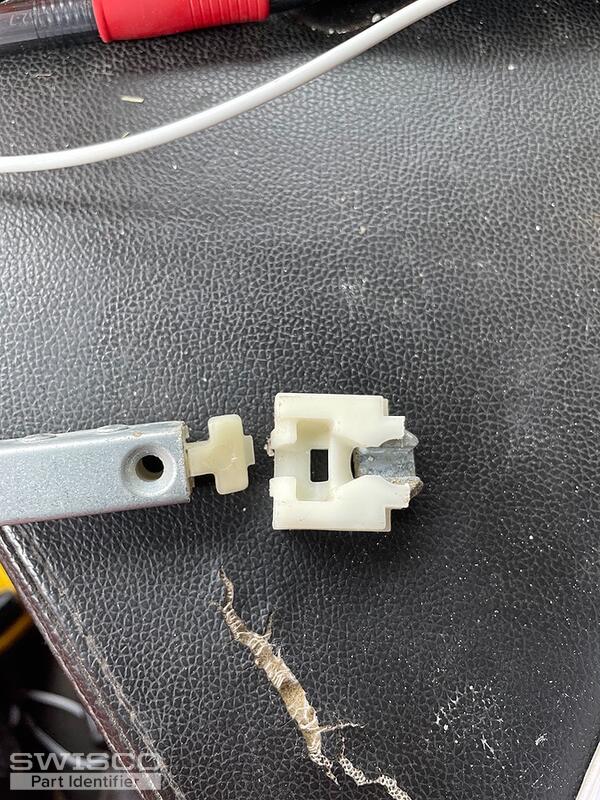

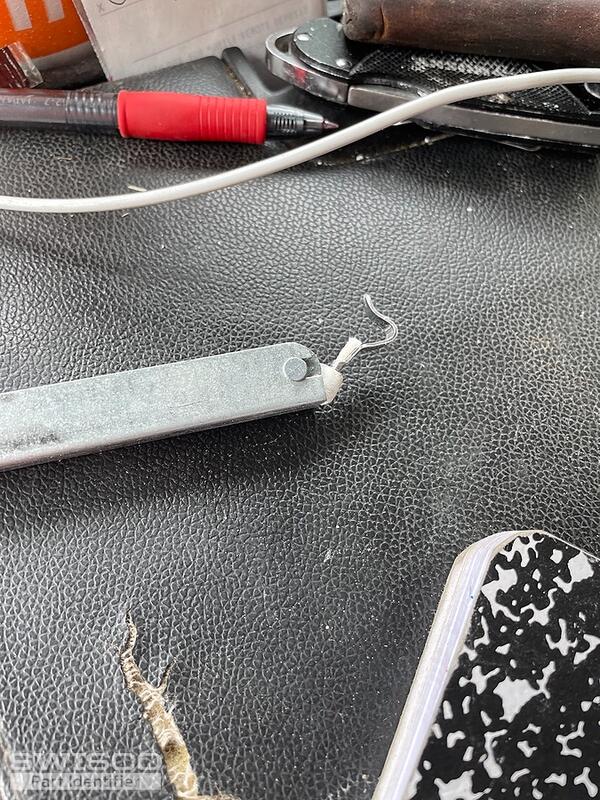

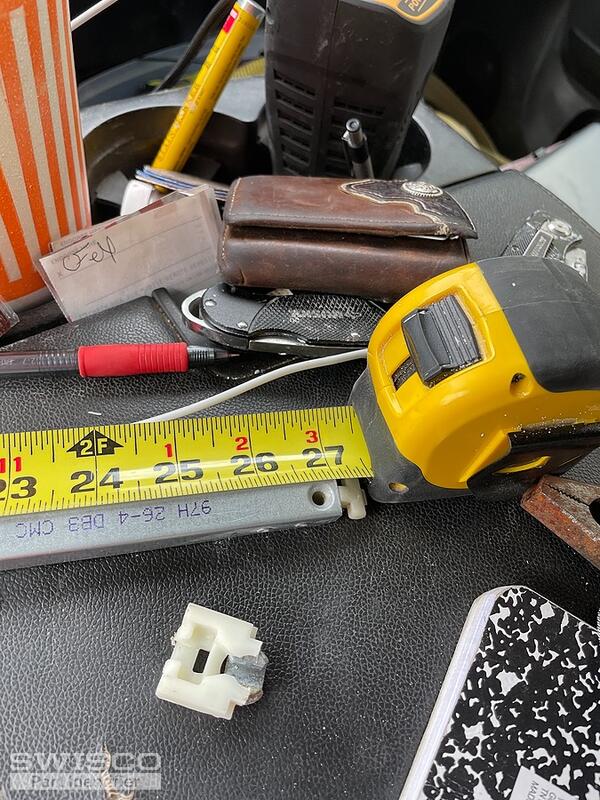

I am looking for the shoe that would fit this window balance.
Thumbnail of the uploaded file named 6D477113-A062-43E9-9BCC-FE95F87CA83D.jpeg
Thumbnail of the uploaded file named B4D0EF78-120A-4767-9B30-12E34F220AE5.jpeg
Thumbnail of the uploaded file named 8ACF6D9F-E9C6-4C49-9BD9-C461357F95FF.jpeg
Thumbnail of the uploaded file named 629FC119-E12F-49B6-A0D8-0FACB08A7193.jpeg
Thumbnail of the uploaded file named 72939EDA-0DFA-401E-A7C5-AC76886570FD.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Thank you for reaching out to us. We unfortunately don't carry this brand of balance but we can still help. See our S795-27, which I think may be your best bet. This has a bottom shoe that's 1-1/4" which is similar to yours and accepts a 26-415 pivot bar. Our balance top is screwed to the window frame, so you will also need a 26-200 nylon plug that fits into the punch out square hole and a 33-090 screw. Finally, the spring weight option you want will be the 27D for a sash weighing 22 through 26 lbs. Please review this information and let me know if you had any questions.
