775 series channel balance

Home Owner from Wadsworth, OH 44281
May 14, 2012 2:59 pm

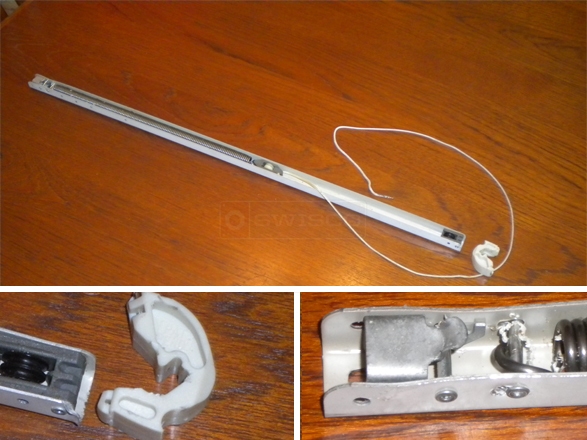

I posted an earlier message regarding the top fitting on this part. You responded back with a request for pictures. I tried several time to attache them to an email reply but the wrong pictures kept appearing. So I am trying it this way.

7 Replies

Paul from SWISCO
May 15, 2012 9:19 am


Hi,
Thank you for posting on our discussion board! Before I can offer an applicable replacement for your balance, I just need to know a bit more information. Can you please tell me the length of the metal channel and if there are any numbers printed or stamped on the channel itself?
Thank you for posting on our discussion board! Before I can offer an applicable replacement for your balance, I just need to know a bit more information. Can you please tell me the length of the metal channel and if there are any numbers printed or stamped on the channel itself?

Home Owner from Wadsworth, OH 44281
May 15, 2012 11:29 am
The part is 22" long and the stamping on the side is 22C BSI JL

Paul from SWISCO
May 16, 2012 8:45 am


Thanks for posting! Please take a look at our S775-22, with the option of 22c and a 1-1/4" shoe.

Quick Learner from Wadsworth, OH 44281
May 16, 2012 10:26 am
Thank you for your follow-up to my question. You suggested that I look at the S775-22 with the 22C option. I could not find a picture of the product on your site that is large enough to tell if it has the tab at the top that fits into the slot in my frame. The picture I sent you shows the tab. Can you tell me if the 22C has such a tab?
John Grom
John Grom

Paul from SWISCO
May 16, 2012 1:45 pm


The Series 775 channel balance uses a plastic screw-way, to screw the balance into the frame. Would you be able to use that to attach your balance to the top of the frame?

Home Owner from Wadsworth, OH 44281
May 16, 2012 2:47 pm
If you are telling me that the 22C has the screw-way instead of the tab, I guess I have no choice but to try to make it work. But it will be a tight fit to put a screw in the way it fits.
Thanks for your effort.
John
Thanks for your effort.
John
