7lb series Series 140 Quick-Tilt, Single

Handy Person from USA

Sep 29, 2014 2:20 pm

replace my part in the attached photo? The measurements are the same. The wheel is different. Should I buy the whole assembly or just the lower piece as a replacement?
Thank you!
Marcus

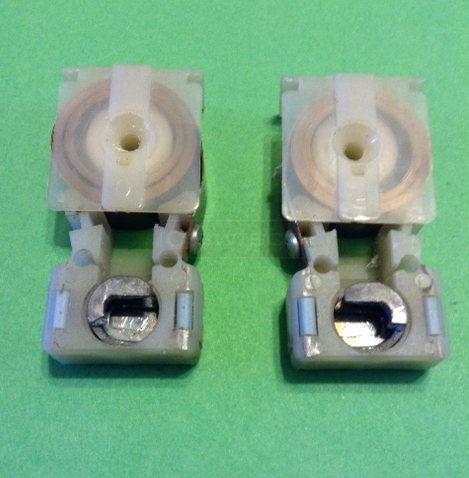

User submitted a photo of a window balance.

4 Replies

Paul from SWISCO

Sep 30, 2014 2:38 pm

Thanks for posting. If the lower part, also known as a shoe, is the only thing that's broken then you don't need to replace anything else. Look at our 15-175 and see if this is a possible match.

Quick Learner from Ohio

Oct 7, 2014 5:39 pm

Paul, That did the trick, thanks! I unscrewed the coils from the old broken shoes and then attached the new shoes (the parts you recommended). I re-installed the assembly and my windows glide up and down easily now.

Paul from SWISCO

Oct 8, 2014 9:06 am

Great! Glad to hear it. Let me know if you have any other questions.
