8500 Series Window Parts

A quick learner from Dayton Ohio says:
May 11, 2022

Good morning,

I'm trying to determine replacement parts for an 8500 series vinyl window, SKU: 741-250, R.O. 33"W

x 49 1/2"H Beige, D.H. with LO-E and Argon STD. JAMB depth and std hardware. I believe I'm in need of Tilt Latches - product code 26-408 and coil balances (see attached pictures).

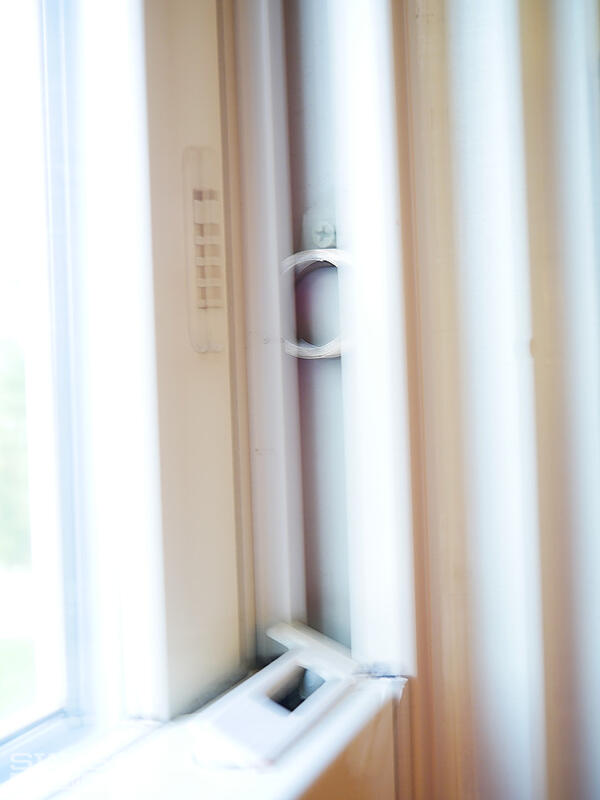

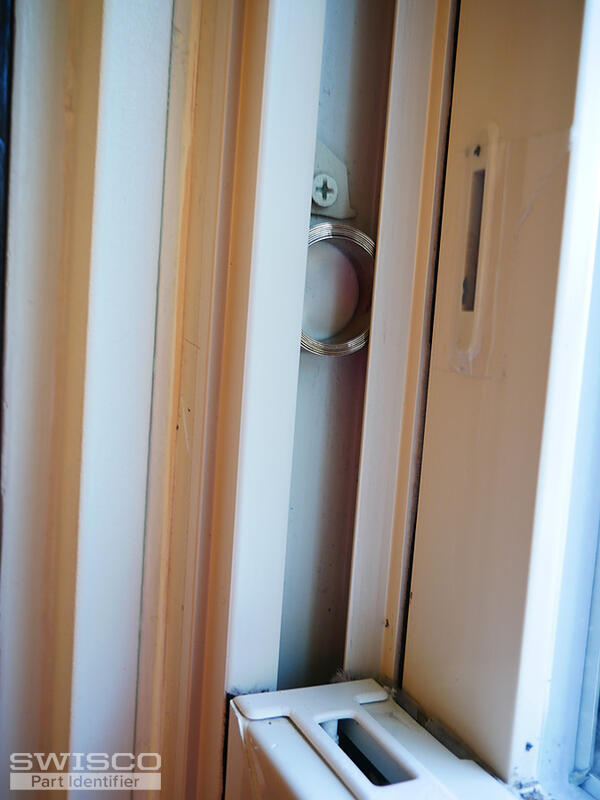

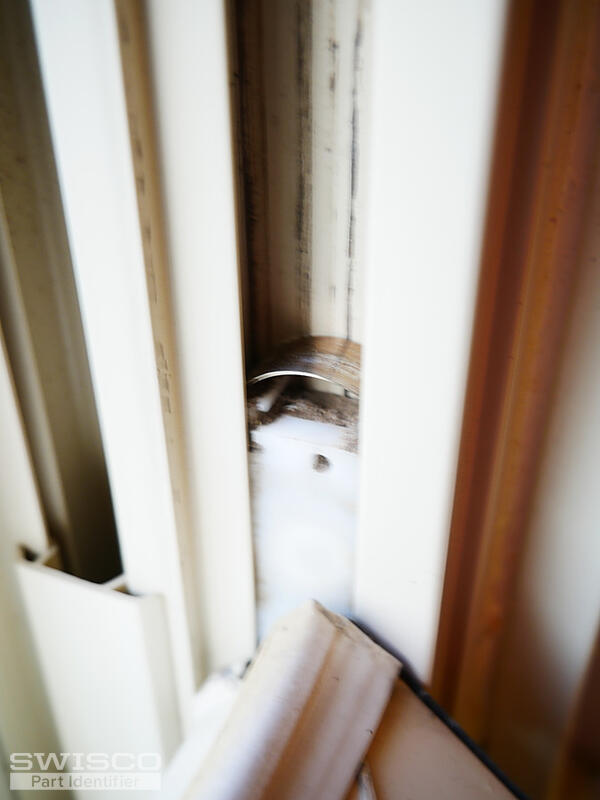

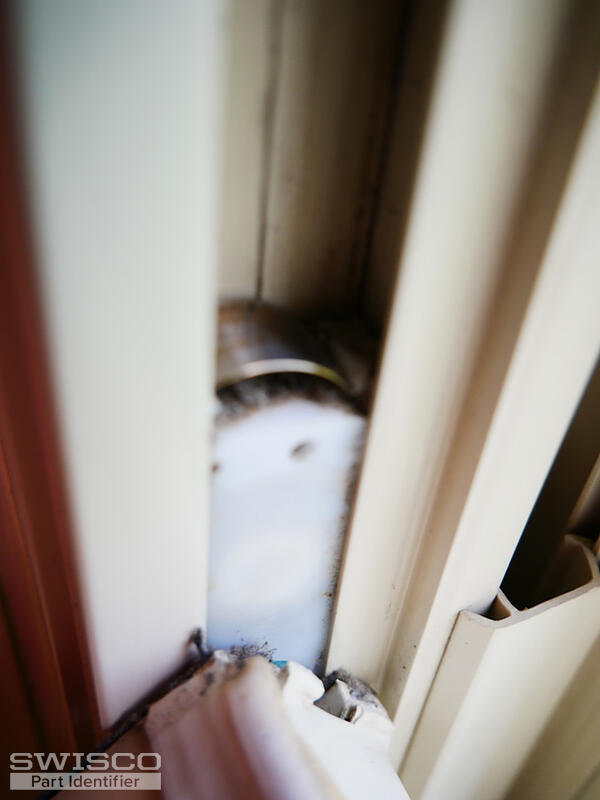

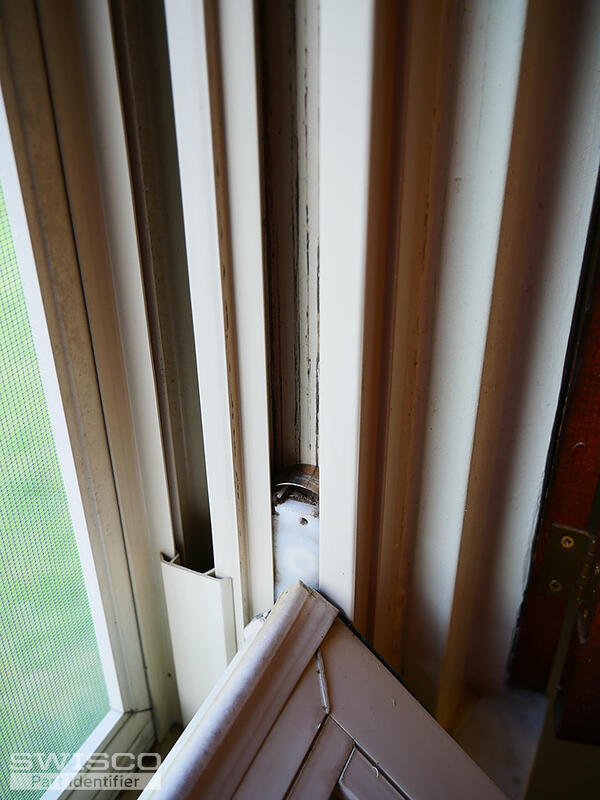

I can open the window but it will not stay up unless I prop it up with something. The window will fall out of the tracks on a windy day. There is a white piece with a coil inside at bottom and a top coil is protruding out at the top. Can you assist? Thank you kindly.

Frank

Thumbnail of the uploaded file named P1000425.JPG
Thumbnail of the uploaded file named P1000426.JPG
Thumbnail of the uploaded file named P1000427.JPG
Thumbnail of the uploaded file named P1000428.JPG
Thumbnail of the uploaded file named P1000429.JPG
Profile picture of Emily
Emily from SWISCO responded:
May 11, 2022

Hey, Frank.

I suspect you may have our 15-087 but you'll need to remove your pivot shoe from the window to confirm your dimensions match up to ours. Our shoe is designed to use the Series 180 coil springs.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Tilt Latch Pair
Tilt Latch Pair
26-408
$3.72
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Removing and installing flush mount tilt latches
Removing and installing flush mount tilt latches
VIDEO
WATCH >
Styles of Tilt Window Latches
Styles of Tilt Window Latches
GUIDE
READ >
