Hello,
Can you please confirm (looking at the attached picture) that the "projection" on the 90-005 latch (aka height of the tongue) it is 3/8" and not 1/2". There are some models that the projection is 1/2" which might be to long for the Milestone series 1000 windows that I have. The other dimensions match the current latch that I have.
Thanks

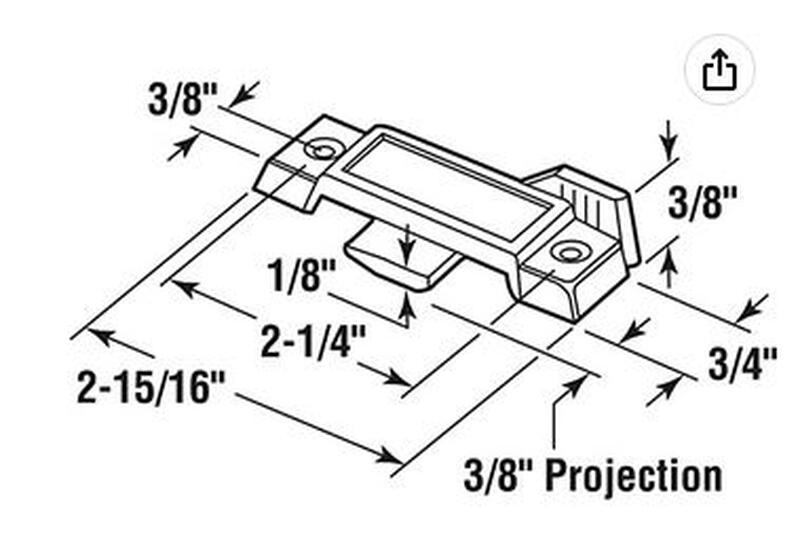

90-005 more dimension detail
Quick Learner from Parrish Florida
Jan 14, 2023 1:40 pm
1 user uploaded image
2 Replies
Paul from SWISCO
Jan 17, 2023 3:37 pm
Hello,
Take a look at the 90-005 sash lock, which has a 1/8" thick tongue and projects 3/8". Thanks for posting.
Alternate image for 90-005
