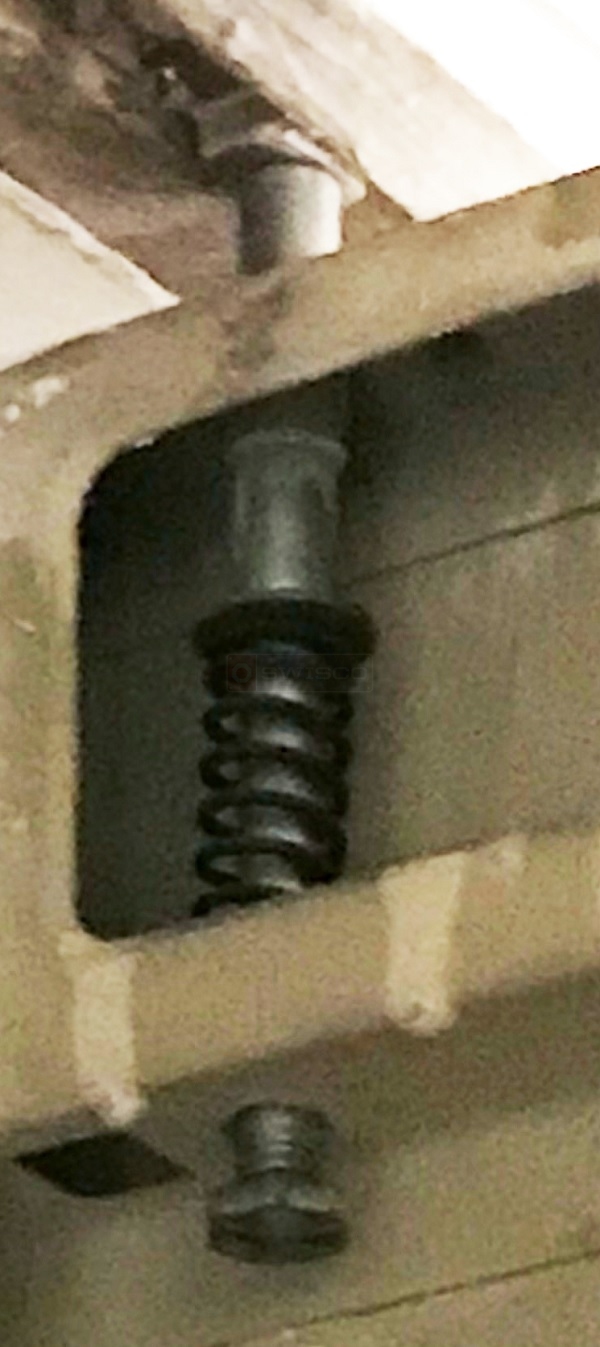

93' metal bi-fold door that needs the pins/guides replaced

A handy person from Chicago says:

January 23, 2018

A little job I'm doing for someone that has 3 closets. One 5' wide, one 4' wide and one 149" wide, all 93" tall.
Will replace all hardware and track. They have a beat up wooden track that I'll do with maple or some other hardwood.
Would you suggest a metal track? I don't know the manufacturer of these doors (to old). Any help would be greatly appreciated.

Paul from SWISCO responded:

February 1, 2018

Thanks for posting. We have metal tracks that should work with your metal doors such as our 21-404 for the 4' opening and 21-402 for the 5' opening. The 149" opening is going to be a problem since the longest is 6' and piecing two together will only give you 144". You would need a bottom and top track for each opening as well as one of our 21-001 bottom pivot pin and three of our 21-007 guide pins for each panel. Additionally, you may need some of our 21-151 nylinders so the pins can slide easily in the door frame. You will need two of our 21-277 rubber bumpers for the top and bottom where the doors meet in the middle. Personally, I would recommend you doing one set to see how it works out for you.

Bifold Track, 4' Opening

21-404

$12.75

Bifold Track, 5' Opening

Bi-fold Door Pivot Assembly

21-001

$6.95

Bifold Door Guide Pin

Bifold Track, 6' Opening

21-403

$18.57

How to Install Bi-Fold Closet Door Pins
