A vinyl no name casement window

Handy Person from Erie, Colorado

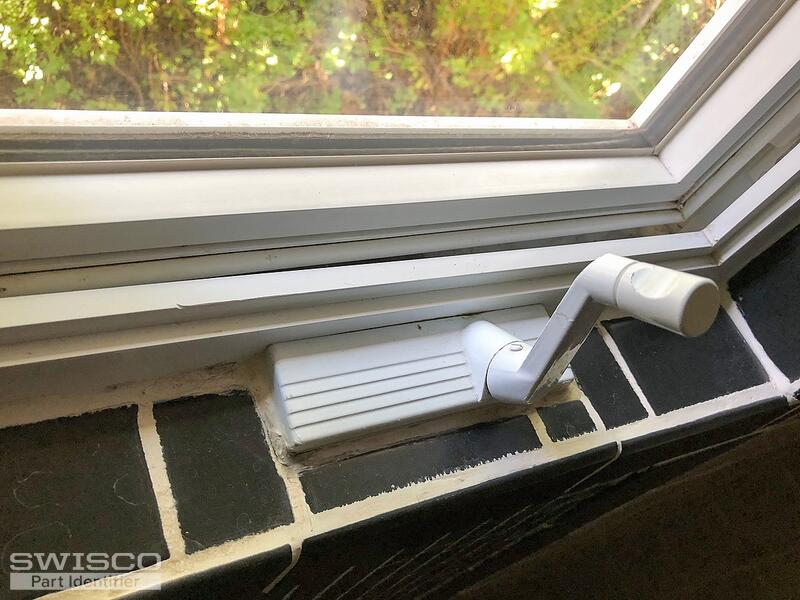

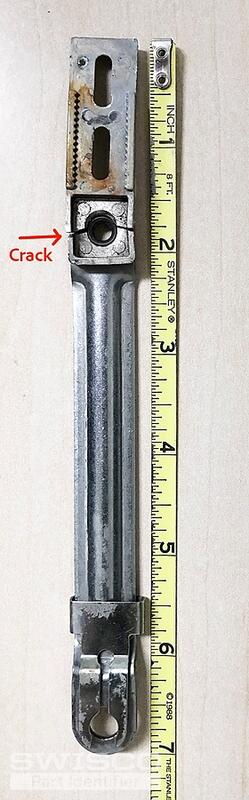

I am looking for replacement hardware for this window. I could not find a brand or any part numbers anywhere! Part 1 has broken off at the bracket, and the arm slide looks worn and is popping out of the track. The picture of the window operator is just for ID purposes. The window size is 17"W x 31"H.

Thank you, Gary

5 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Gary.

Thank you for reaching out to us. It looks like your hinge has a 10" base that attaches to the sill. With that in mind, I recommend the 36-048. We recommend you replace the top and bottom hinges at the same time. Review the specifications for these parts and see what you think.

Unfortunately, we do not sell a replacement or alternative for the bracket arm in your last photo. I am very sorry for the inconvenience.

Detail of 36-048
Detail of 36-048

Additional dimensions for 36-048
Additional dimensions for 36-048
