ACME top guide

Distributor from Australia

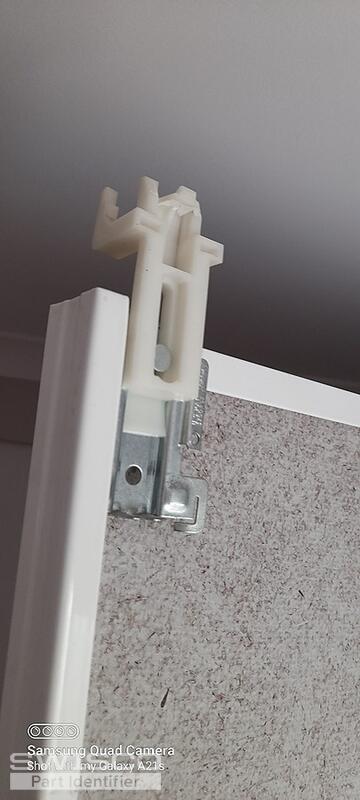

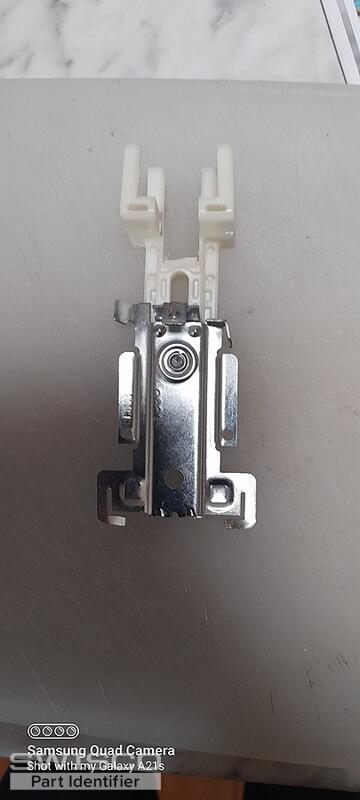

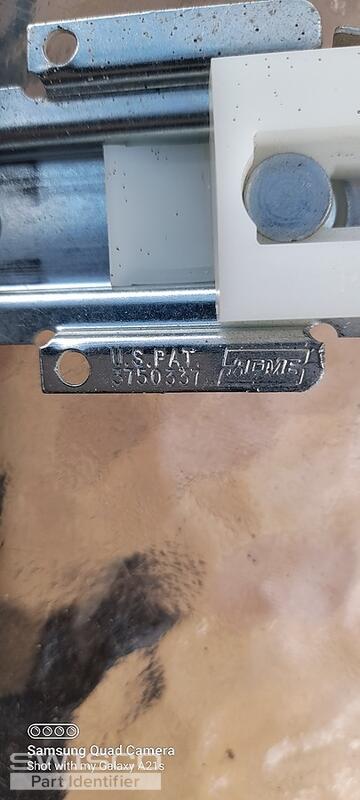

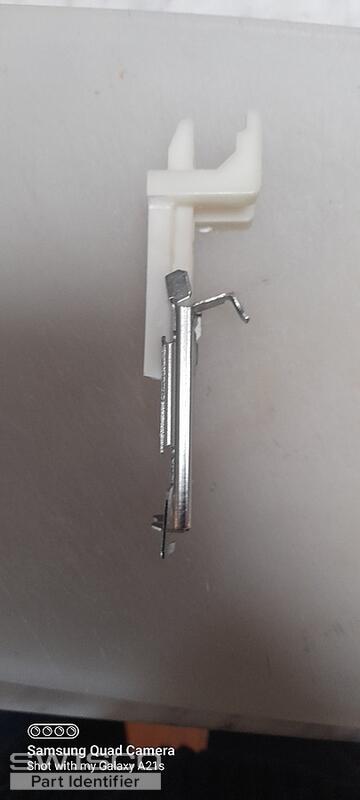

Hello talented team - wondering if you can ID the images of the part above and advise the part number or a replacement option please - many thanks Heather
4 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out! Your closet door top guide was discontinued by Stanley and is no longer made but the good news is that our 23-196 will work well as a suitable replacement. This roller has an adjustment wheel rather than a spring-loaded wheel guide, so you may need to adjust it a few times to get the doors to slide smoothly.

We do not carry a top track compatible with the 23-196, unfortunately.

Take a look at the dimensions and design of the roller to determine if this will work for your door.

Alternate image for 23-196
Alternate image for 23-196

Alternate view of 23-196
Alternate view of 23-196

Distributor from Australia
is there a bottom guide we can use this the unit also
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Yes, there is! The Bypass Bottom Guide Assembly, part 23-215 is shown as a related item for the 23-196 roller. Although, you will need to be sure to compare the measurements to determine that is the replacement you'll need. Take a look at the diagram below for reference. See what you think.

Alternate view of 23-215
Alternate view of 23-215
