ADAMCO Window Balance

Handy Person from Oklahoma City, OK

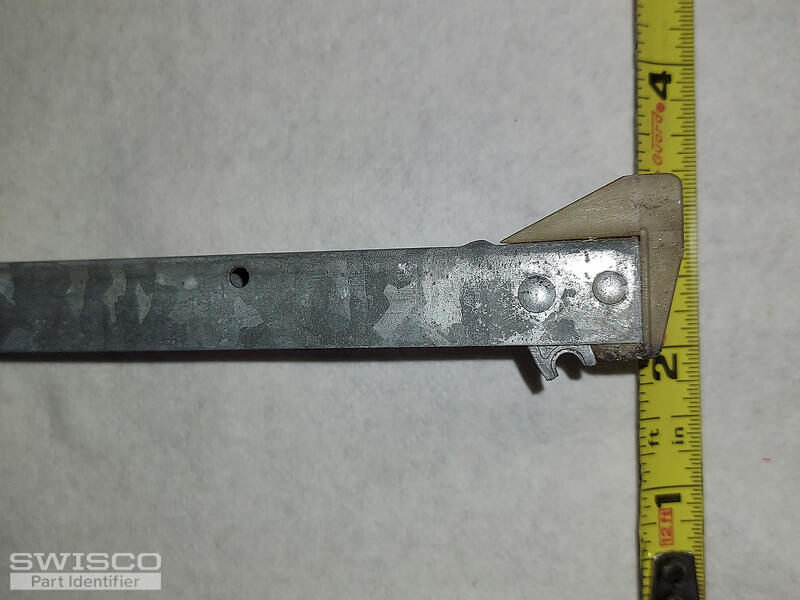

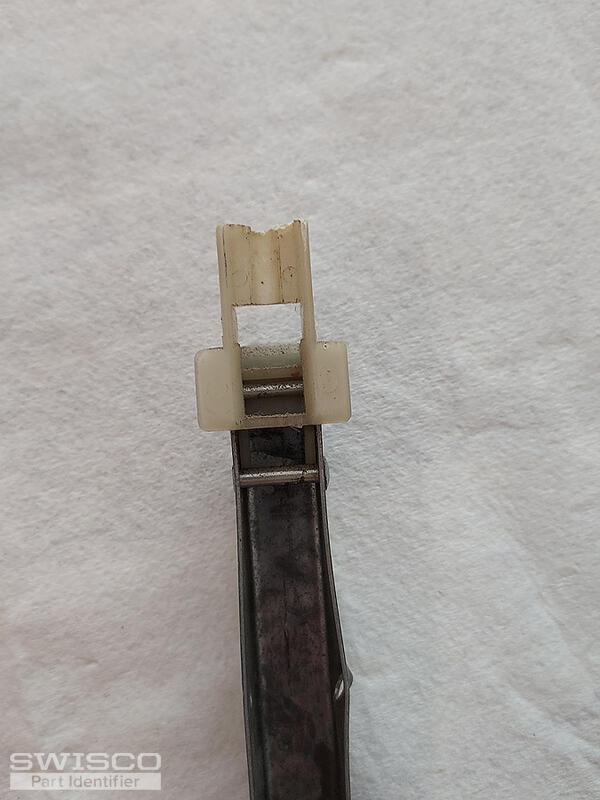

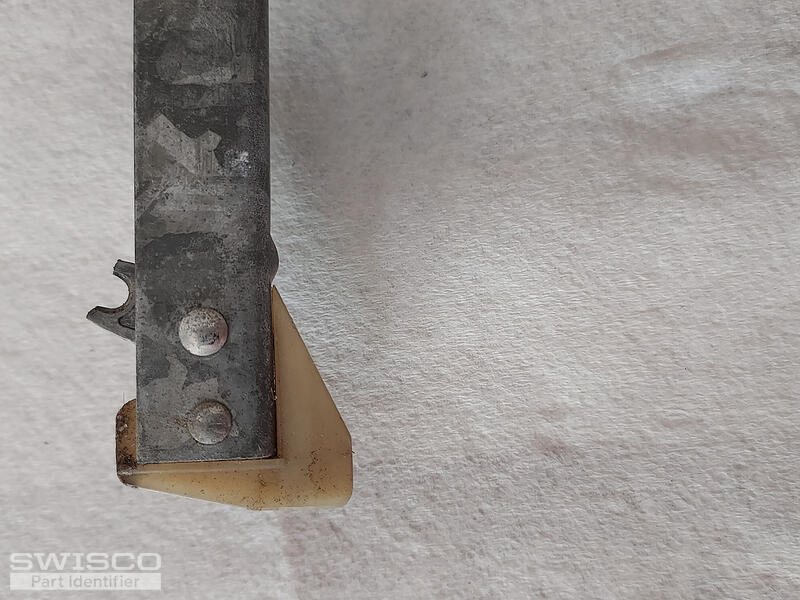

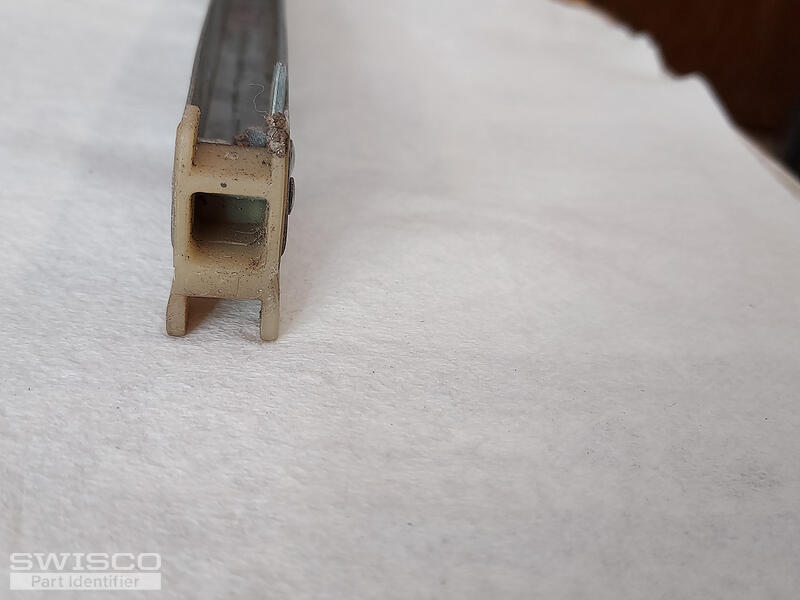

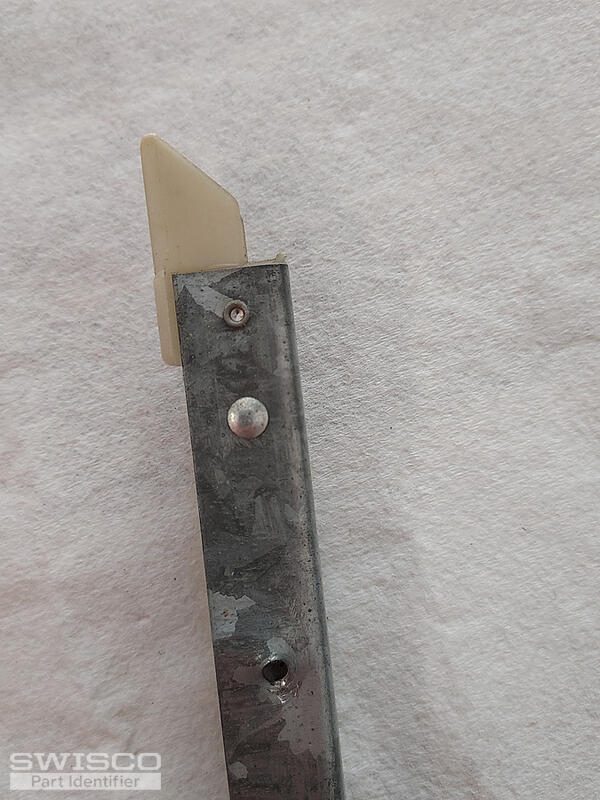

Hi. I need repair parts for an ADAMCO window. The channel is 28" long, 5/8" tall on the side, and 9/16" on the narrow side. It's a single-hung window. Pictures are attached. The number stamped on the channel is: a 2740. I need to know if the plastic parts, spring, block and tackle, etc. are included or if they are separate items. Thanks for your help.

--Calvin

5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Calvin. I think our S395-28 channel balance is exactly what you're looking for. This has a 19-005 top and 15-001 bottom nylon fitting, so as long as those match up then you should be good to go.

These come fully assembled and ready to install out of the box. Look it over and let me know if you had any questions! I'm happy to answer anything you may need.

Close up view of the S395 balance top.
Close up view of the S395 balance top.

Close up view of the S395 balance shoe.
Close up view of the S395 balance shoe.
