ARGON Vinyl DH window parts/ Spring Balance and Latches

Start a new Discussion

Home Owner from Morristown, NJ

May 30, 2021 8:13 pm

Looking for Argon Vinyl Window Parts

5 Replies

Bob from SWISCO

Jun 3, 2021 10:23 am

Can you show us pictures of your hardware removed from the window? That will be the best way to ID what you need. Many thanks.

Home Owner from Morristown, NJ

Jun 3, 2021 11:32 am

Hello,
I also need the top spring loaded latches which keep the window latched in the rail. I can send you pics of those later if needed. It would be great if you can help me. ;) John

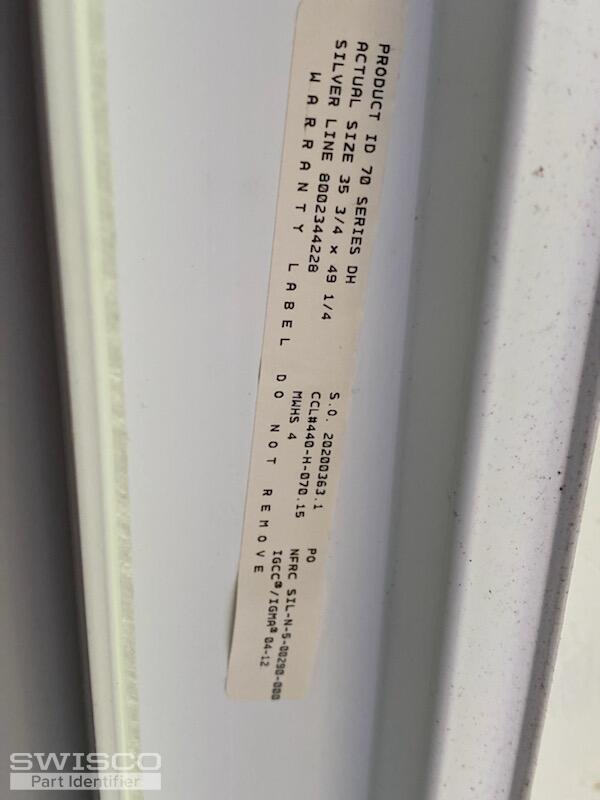

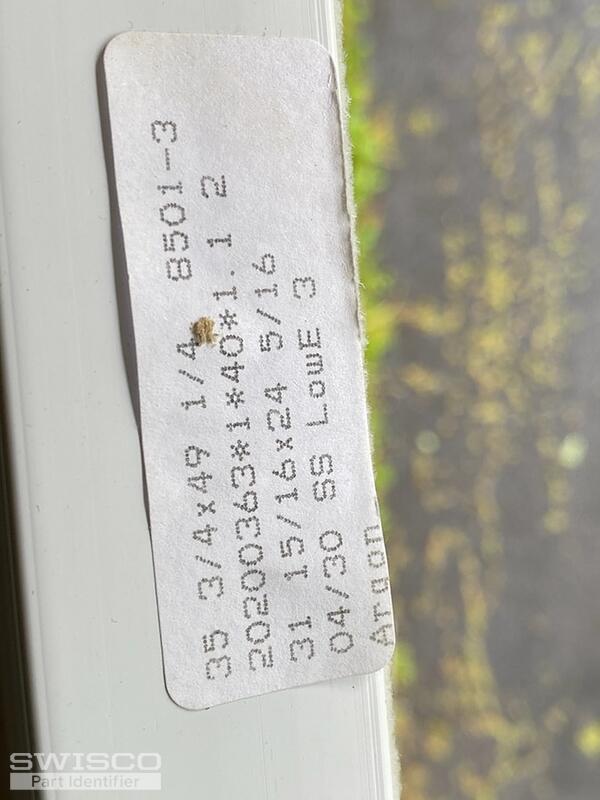

5 user uploaded images

Home Owner from Morristown, NJ

Jun 3, 2021 5:57 pm

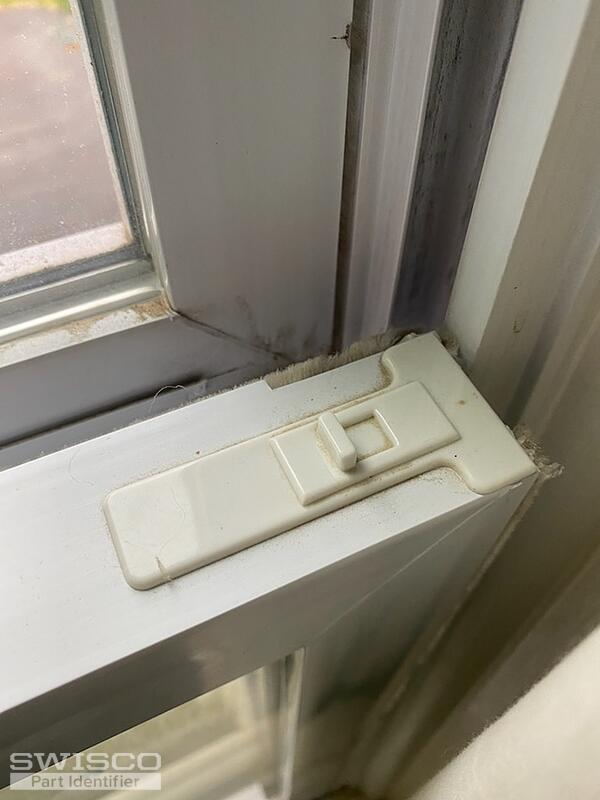

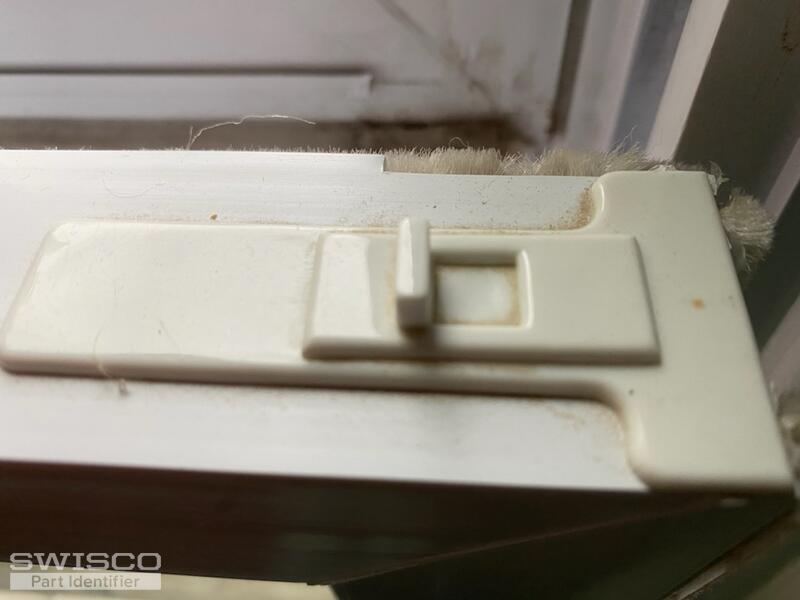

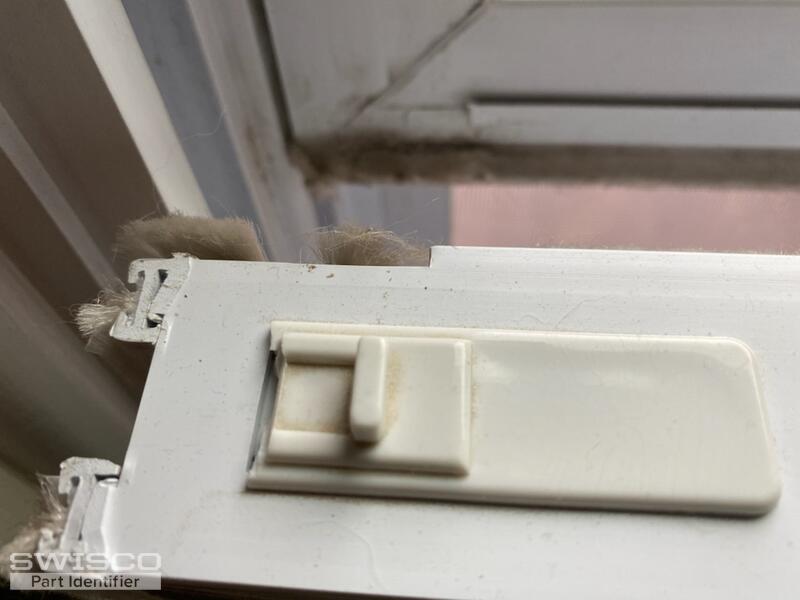

So here are the "Latch" pics to be replaced. Thanks so much.

4 user uploaded images

Tom from SWISCO

Jun 4, 2021 11:23 am

Hello! Bob's not here today but I can help you. For your coil balance assembly, please see our 15-087 housing pivot and the Series 180 spring. We also sell the 16-031 mounting bracket if you needed that, though yours seems to be fine so you can probably reuse it.

As for the tilt latches, see our 26-408 pair.

I am confident these are the parts you want but it can't hurt to look over the information and specs we have on our site to confirm. Let me know if you had any questions!
