Acme Bifold Door Hardware

A handy person from Naples, FL says:
March 1, 2023

Installed a set of wood frame glass bifold closer doors last year with Acme hardware included. Doors started binding this year and I noticed on one of the doors the bottom pivot popped out of its crimped socket. Total length is 2-1/4" with a width of 3/4". Center of screw hole to center of screw hole is 1-1/2". Bottom of plate to top of pin is 1/2". I saw a potential replacement on your site but it looks like the pin may be too large of a diameter (my diameter is 1/4"). Any possible replacement for this?

Thanks for listening.

Craig

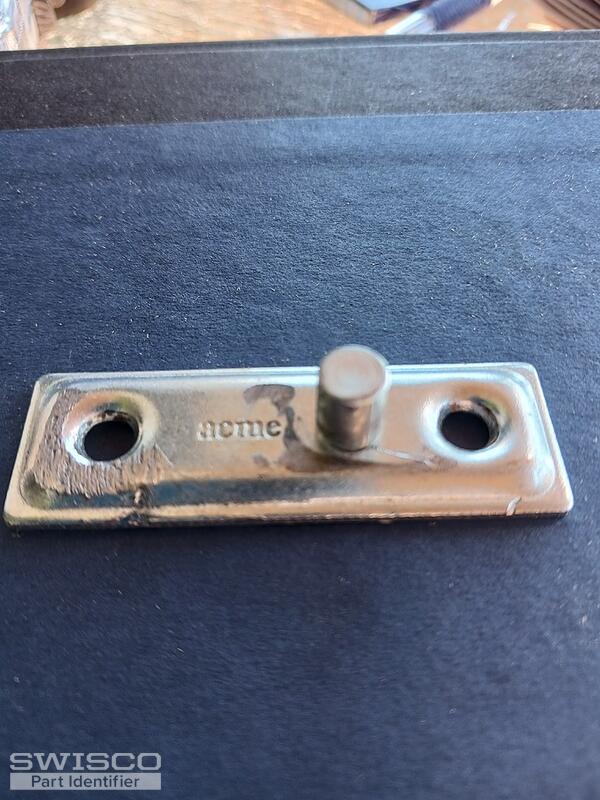

Thumbnail of the uploaded file named 20230301_145250.jpg

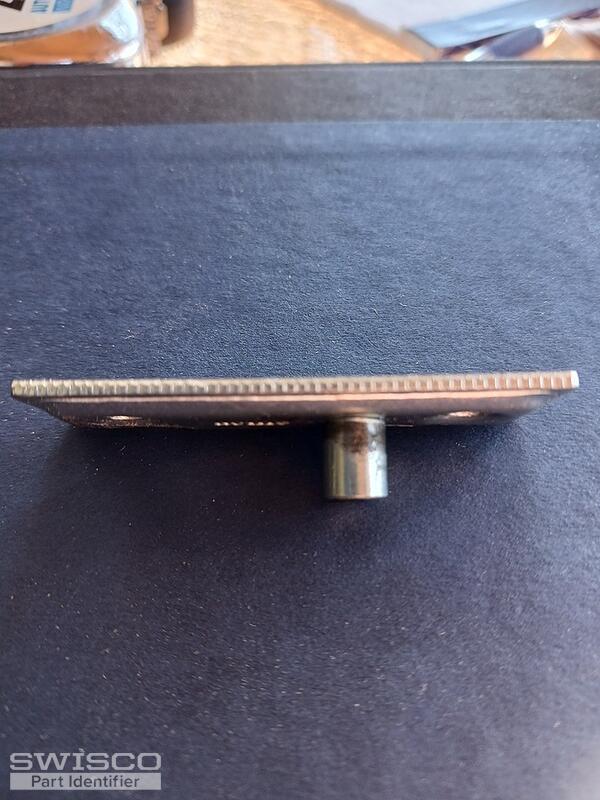

Thumbnail of the uploaded file named 20230301_145241.jpg
Profile picture of Lauren
Lauren from SWISCO responded:
March 2, 2023

Hi Craig, thank you for posting,

Please start by reviewing the style and dimensions of the 23-144 bottom pivot. This part has a 1/4" diameter pin size. Let us know what you think and if you have any additional questions.

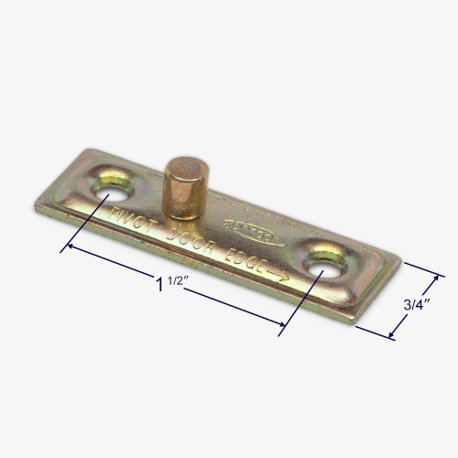

Detail of 23-144
Detail of 23-144

A handy person from Naples, FL says:
March 2, 2023
I would have to say that the product you recommended looks to be an exact replacement! Thanks for the quick response.

Craig
Profile picture of Lauren
Lauren from SWISCO responded:
March 2, 2023

No problem! Please let us know if you have any additional questions.

Bottom Pivot
Bottom Pivot
23-144
$1.40
