Hi, I'm looking for parts to help fill the gap/stop the draft and outside world getting in on what I think is a set of acorn 2500.

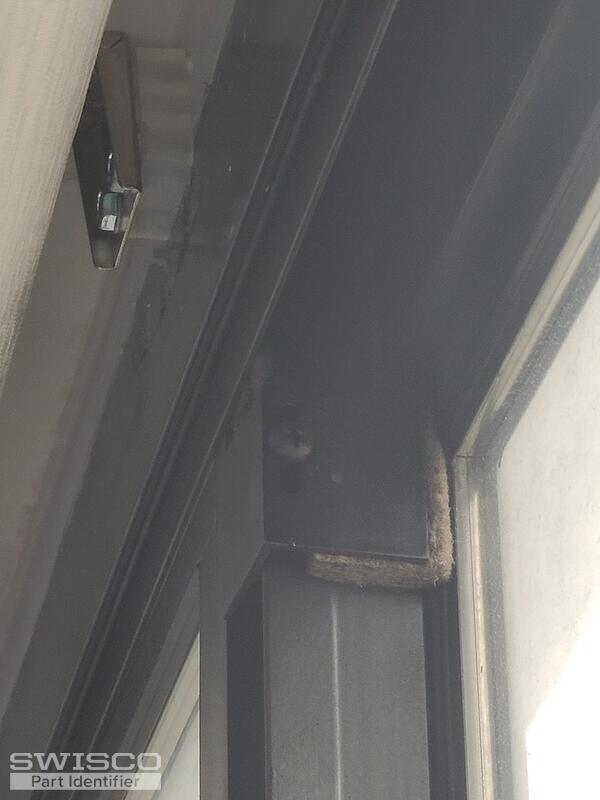

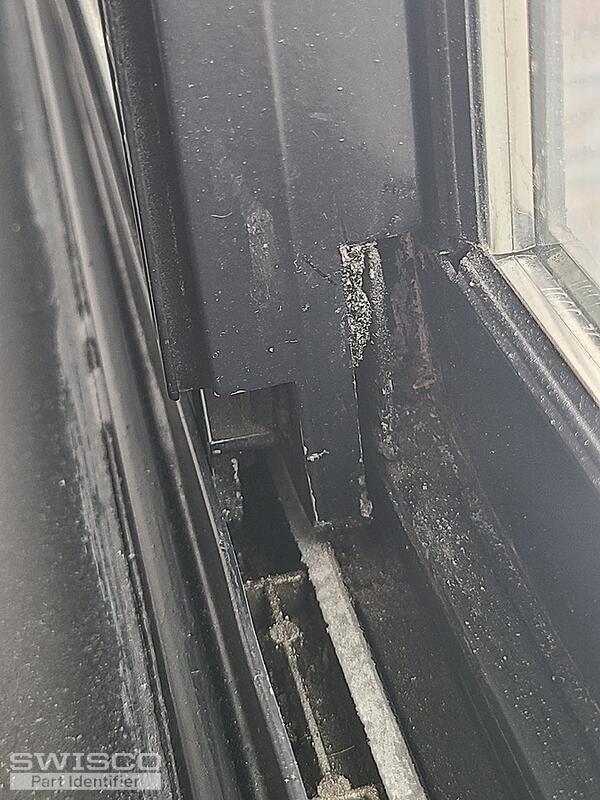

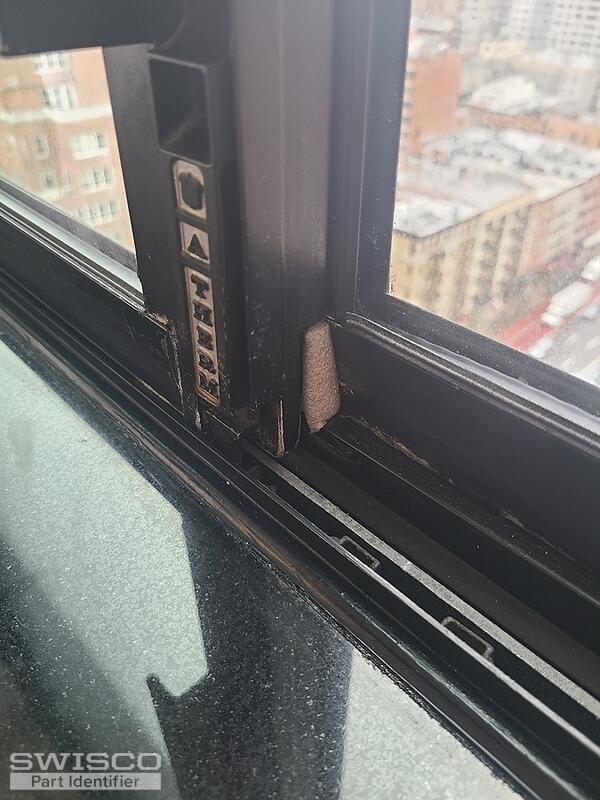

The third picture shows what I think is some draft stopper attached to the top of one window, but the others are missing it. Similarly on the bottom, any suggestions?

3 user uploaded images

5 Replies

+ Add a Comment

Paul from SWISCO

Apr 6, 2023 11:15 am

EXPERT

Hello,

When Acorn was still in business, they used felt pads behind the top bracket and foam blocks in various dimensions to fit in the interlock (1-1/4" by 1/2" by 7/8") and head closure (1-1/2" by 1-1/8" by 7/8"). Unfortunately, we don't carry the felt or foam that you're looking for but you could see if a local hardware store could supply the material. If so, you could cut the pieces to fit your window.

Quick Learner from Ny

Apr 6, 2023 12:05 pm

Thanks, super informative!

Paul from SWISCO

Apr 6, 2023 2:42 pm

EXPERT

We appreciate your feedback! Please let us know if there is anything else that we can assist you with.

Quick Learner from Ny

Dec 17, 2023 10:13 pm

Paul, any sense of where to buy these top and bottom brackets? I realize the full piece doesn't exist so perhaps the back and foam can be sourced separately?

Paul from SWISCO

Dec 19, 2023 9:09 am

EXPERT

Unfortunately, the Acorn Series 2500 catalog does not show the top corner bracket shown in your photo. We still offer the 80-003 securing bracket that was used by Acorn for their Series 1200 patio door. Compare the dimensions to see if it would work for your application.
