Add Exterior Keyed Lock

Quick Learner from Concord, NH

Jul 15, 2018 6:24 pm

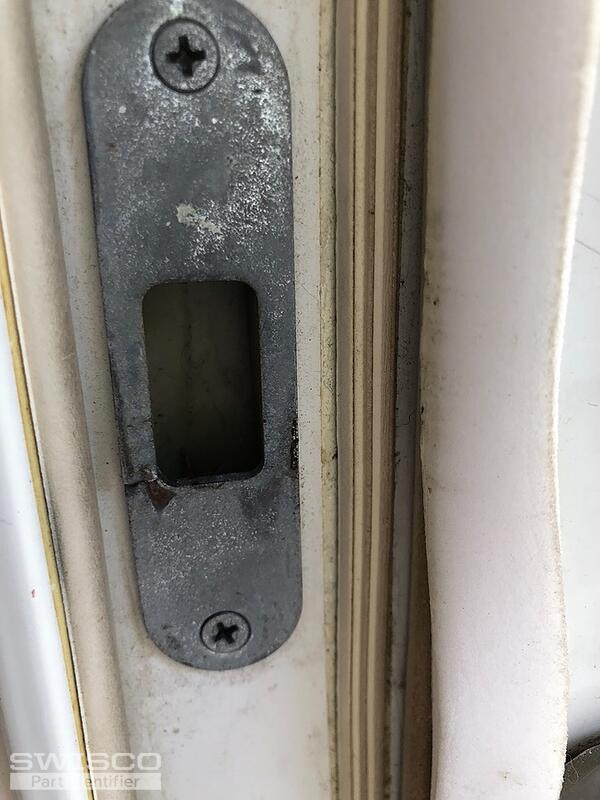

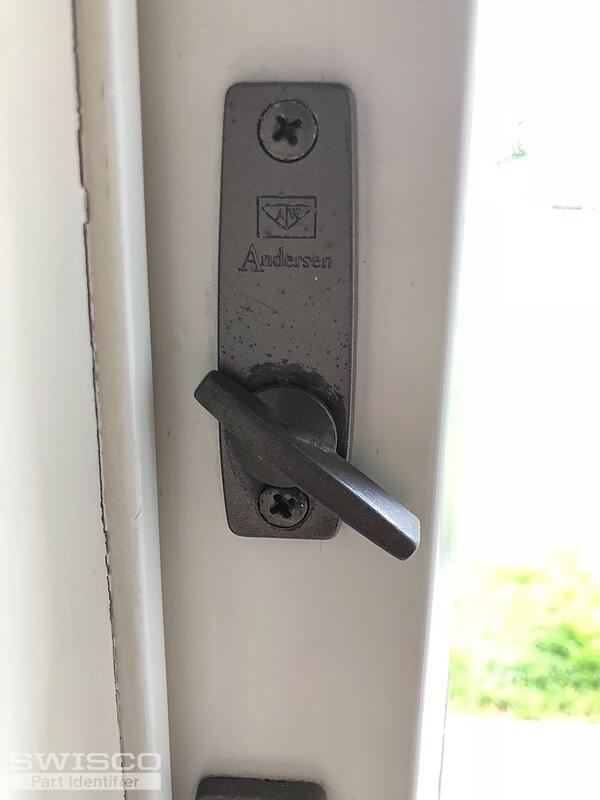

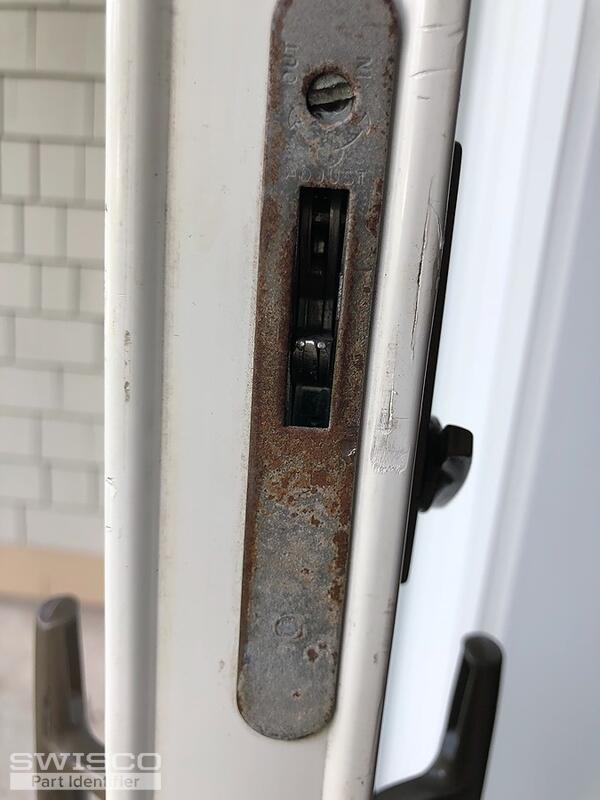

Hi, my door does not have an exterior keyed lock, but would like to add one. What model number do you suggest? It?s an Anderson vinyl clad slider and when on the outside of the door looking in, the handle is on the right.
Thank you.
Robin

3 user uploaded images

2 Replies

Dave Sr. from SWISCO

Jul 18, 2018 10:18 am

I believe you would need to use the 82-317 key lock assembly.

It normally goes with the newer-style mortise latch, the 82-037, where yours is the older 82-263. However, it should operate the same in both latches.
