Additional measurements for the 26-215 latch

Home Owner
Sep 7, 2011 3:46 pm
For your item 26-215. What are the following dimensions?
On the latch end ----distance from mounting hole to end of the unit? Also how long is the actual locking latch which projects into the window frame? I need 1/2".
1 Replies
+ Add a Comment
Tom
Tom from SWISCO
Sep 8, 2011 9:25 am
SWISCO
EXPERT

The distance from the right most hole center to the end of the latch is 2 3/4", leaving the distance to the other end of the latch at 3/4".

The locking latch projects 3/8" away from the unit.

Please see image below:

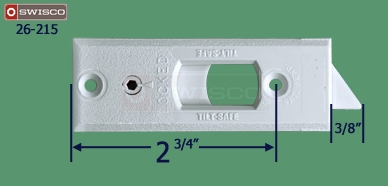

Alternate measurements of the Swisco 26-215 Neutral Top Tilt Latch, 2-1/2".
