Alcan Window
Handy Person from Bonita Springs, Florida
Nov 29, 2021 4:49 pm

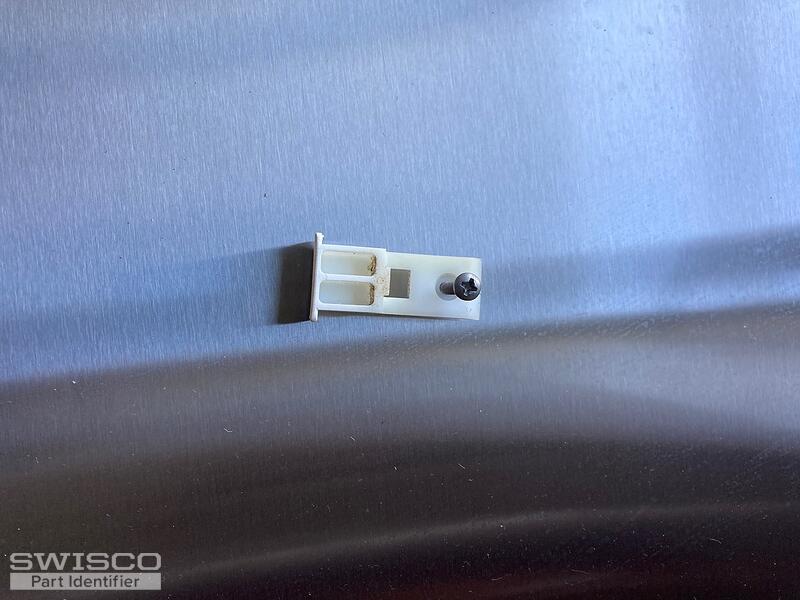

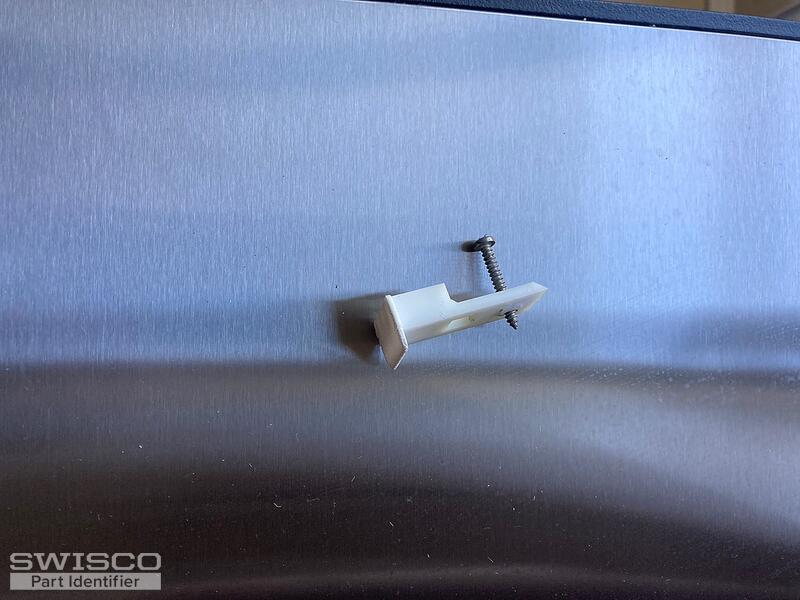

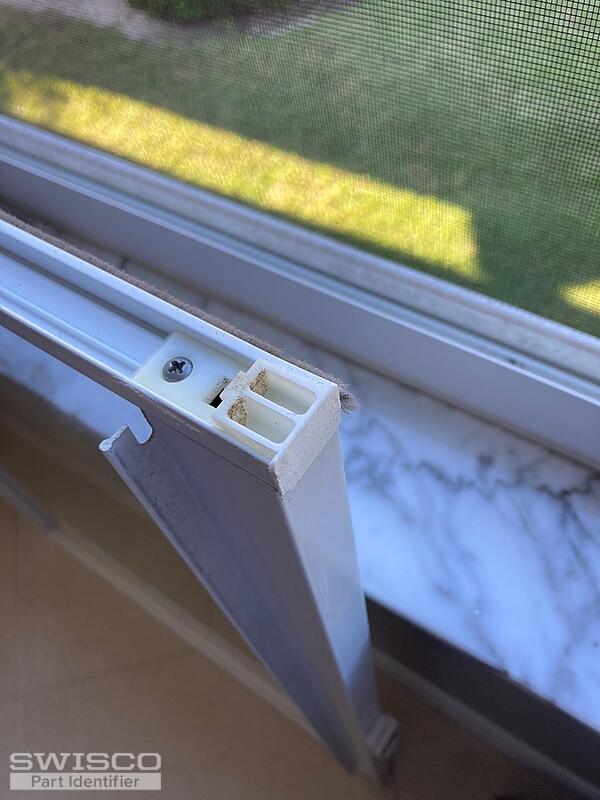

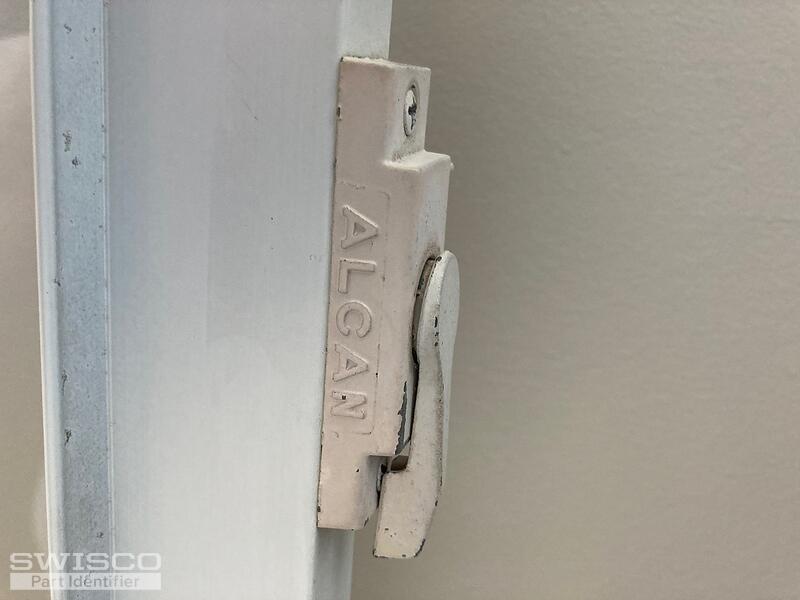

Looking for this part. I believe holds spring in place.
4 user uploaded images
4 Replies
Casey from SWISCO
Dec 2, 2021 1:41 pm
Hello,
Take a look and compare the specifications of the 18-161 top sash guide to your part. Thanks for posting!
Handy Person from Bonita Springs, Florida
Dec 3, 2021 10:06 am
Hi

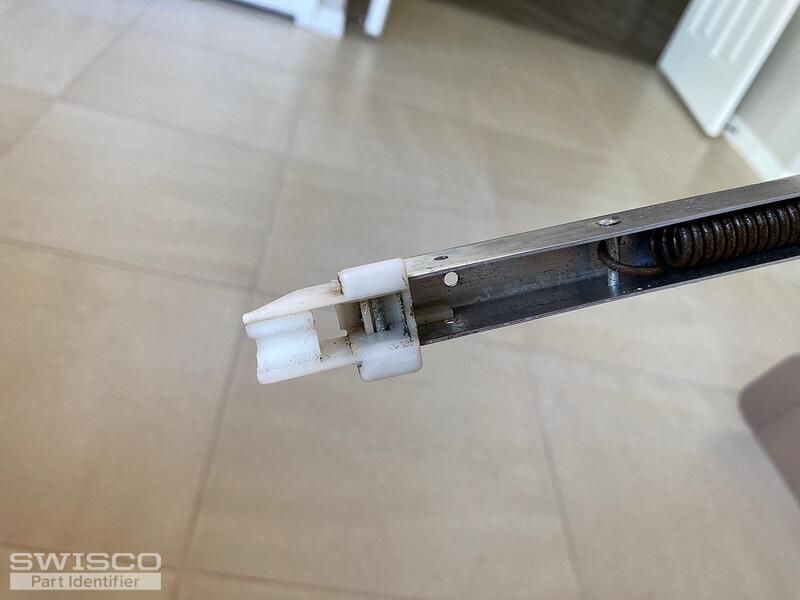

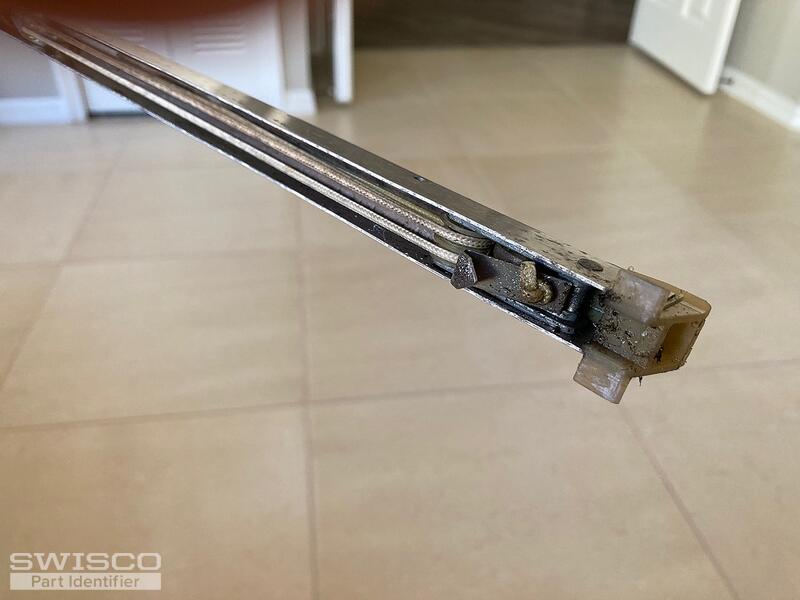

I am also looking for replace slider as per attached photos
I am also looking for replace slider as per attached photos
2 user uploaded images
Casey from SWISCO
Dec 6, 2021 8:20 am
With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to locate the stamp code printed on the metal channel to choose the corresponding strength option.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
