Alcan awning window, operator was replaced 8-10 years with one from SWISCO.

Handy Person from North Naples, Florida
Operator is not closing all the way.  I talked to a person online and she said it sounded like the gears were worn down.

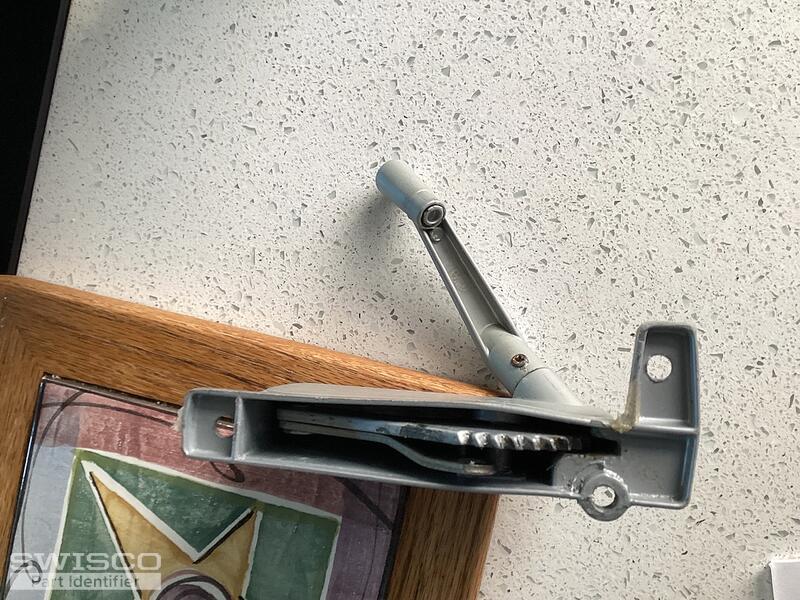

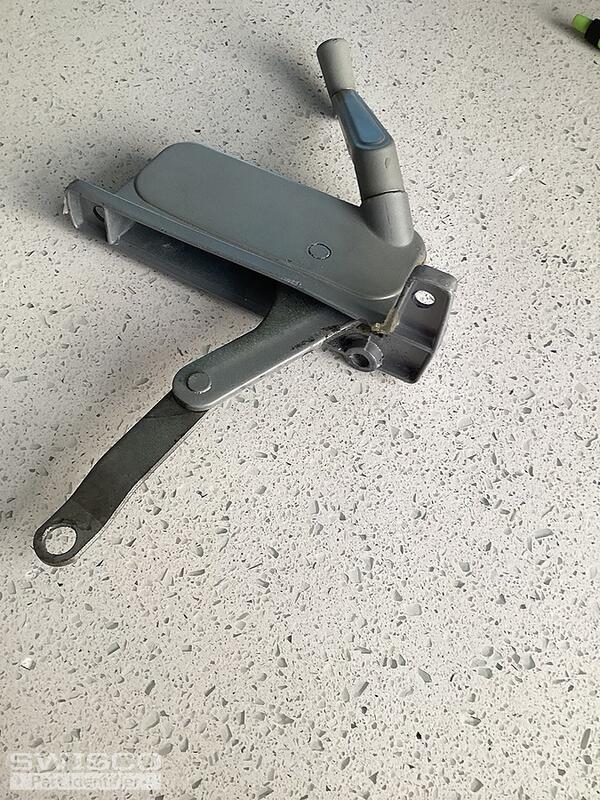

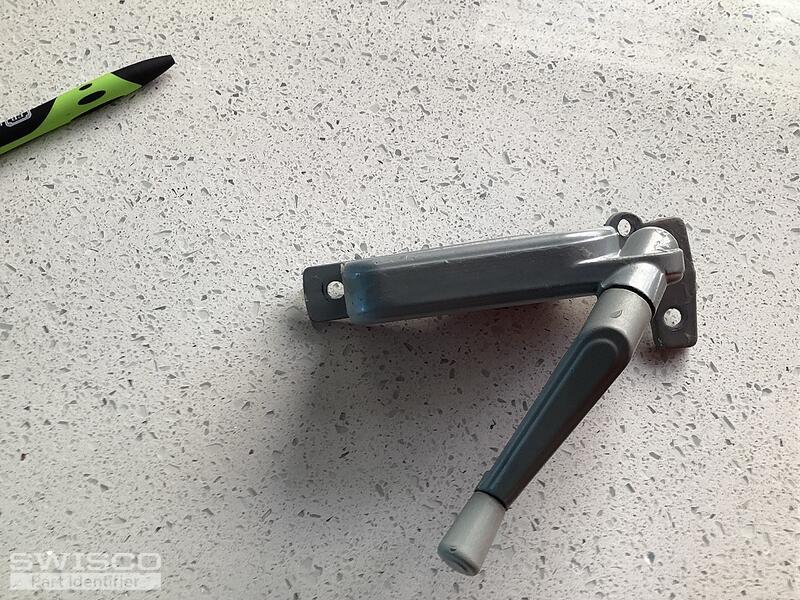

3 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. First, I'd remove the awning operator from the window and try manually opening and closing the window to ensure it's not an issue with the window hinges. If they seem fine, then you know the operator needs to be replaced. Please remove the operator and show us a clear photo of the rear of the device, with the top and bottom tabs in  clear view. Then also show us a photo of the entire link arm, including the mounting hole at its end. We should be able to narrow down the operator you need from there.

Handy Person from North Naples, Florida
I did remove the operator and it opens and closes easily.
Thank you for your help.
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thanks! Please see our 39-259. I think this may be a good match for your old operator, but review its specs below and see what you think.

Dimensions for 39-259
Dimensions for 39-259
