Alcan sweep or sash lock

Handy Person from Cape Coral Florida

Dec 11, 2025 10:30 pm

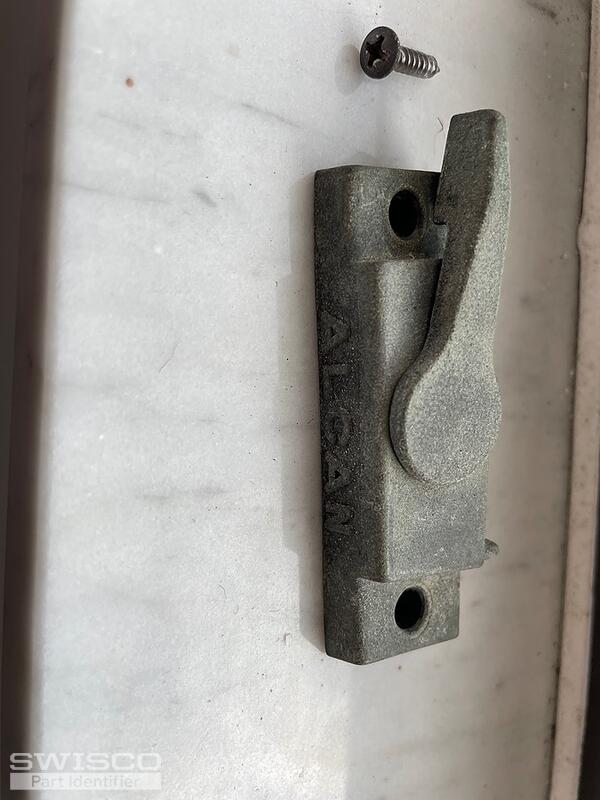

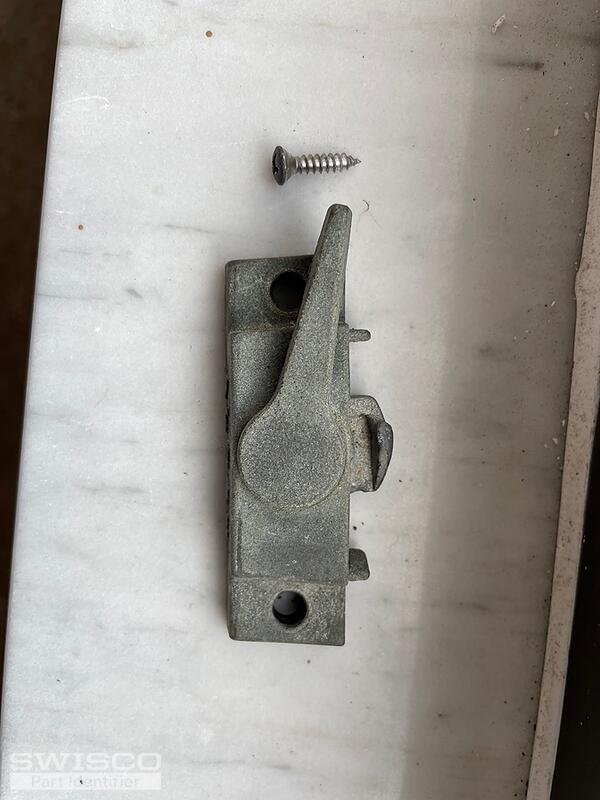

Alcan marking on face Mount hole centers are 2 1/4" apart and 3/8" from front / inside edge. Whole body measures 1 inch including alignment tabs.

5 user uploaded images

4 Replies

Jasmine from SWISCO

Dec 12, 2025 12:06 pm

Thanks for your post! I'm confident we can supply a replacement for this lock but I'll need to see a photo of the keeper to narrow down the correct replacement match. We have a sweep that matches your specifications but I am wary it may not be compatible with the existing sweep given the different in the design.

Please let me know if you have any additional questions!

Handy Person from Cape Coral Florida

Dec 12, 2025 12:32 pm

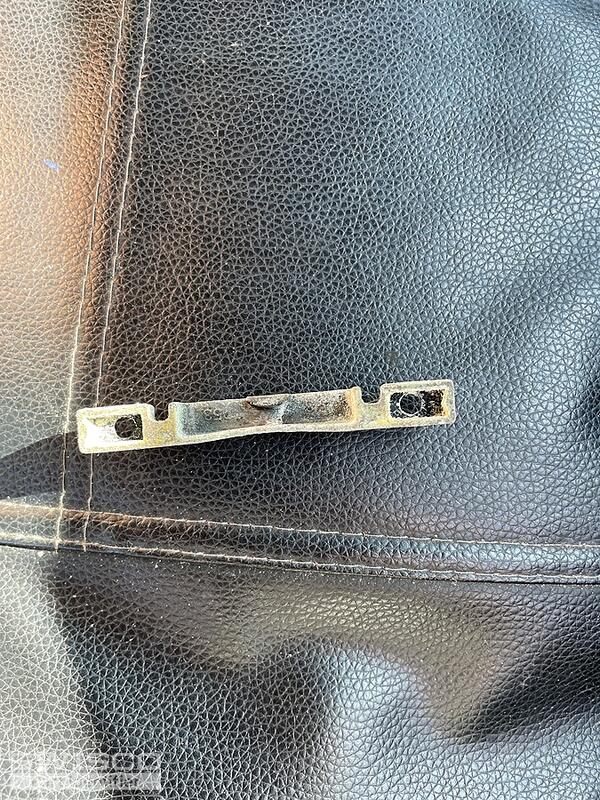

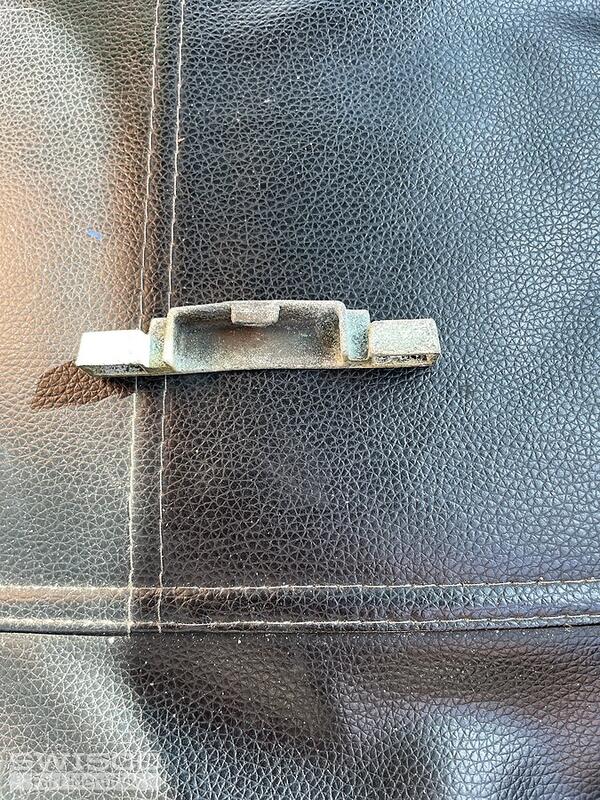

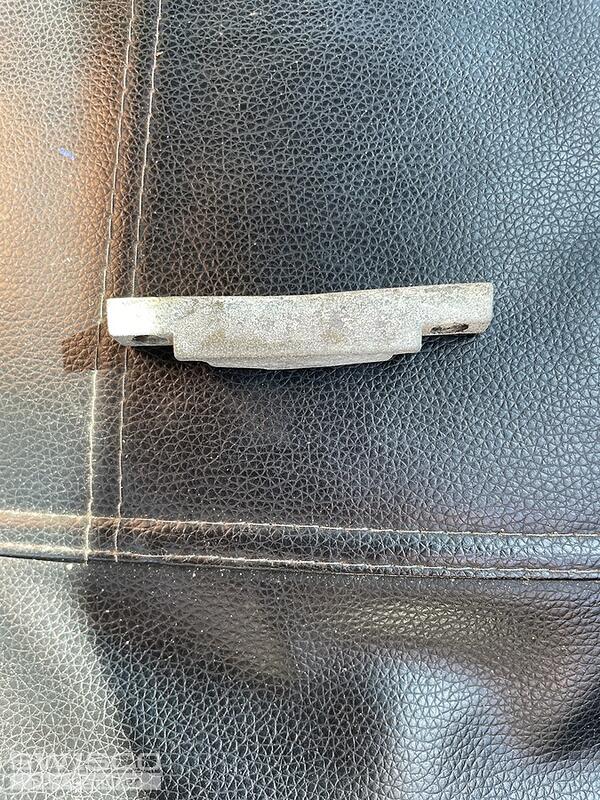

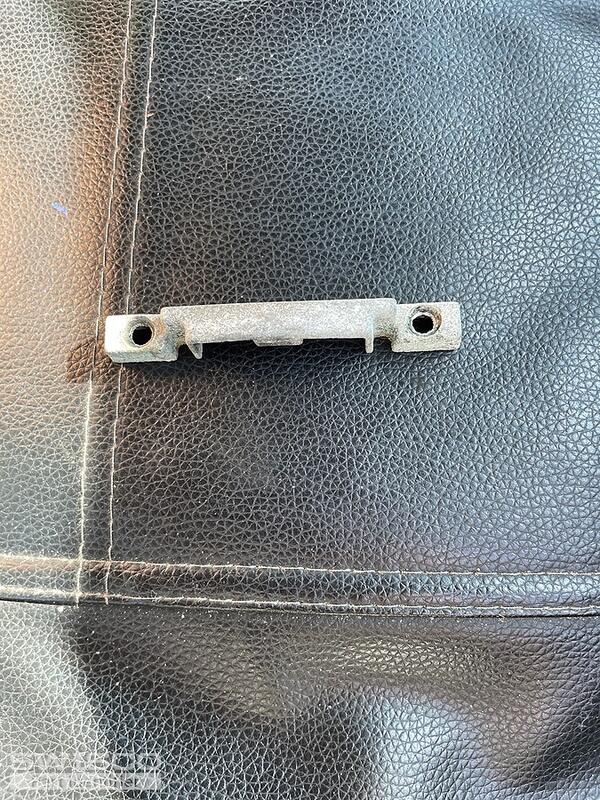

Thanks for getting back to me. Here are photos of the keeper I have on hand. The mounting holes are 2 1/4” as well. As far as the location of the locks goes I will have to get photos and measurements once I’m on site. But I can say that there are two locks and I estimate that they are somewhere within 8 to 12 inches from the outside of each edge of the window. Hope that helps.
Thanks again!

4 user uploaded images

Jasmine from SWISCO

Dec 12, 2025 2:32 pm

Thanks for the additional photos. I believe our 90-180 Window Sash Lock should work as a replacement. It has the same installation hole spacing as your existing locks.

Your existing keeper might not be compatible, so you may also need the 90-183 Sash Lock Keeper.

Carefully double check both of their specifications to ensure this will work for your repairs!
