Aleco Window 43x59

Question

It's a Alenco Window. I need 2 channel balance hardware. I believe it's 1" deep and the metal part is 28".  30" bottom shash window part. Would I need a 28" 351 Series? 30" bottom shash window part . Thanks!

Casey · Accepted Answer

Hello,

I can't be sure with the balance still installed but if you're sure that the top and bottom fittings are non-winged and the shoe measures exactly 1" deep, I agree that the S351-28 (2740) would be a match. Take a look and confirm the specifications below match your assembly. Thanks for posting!

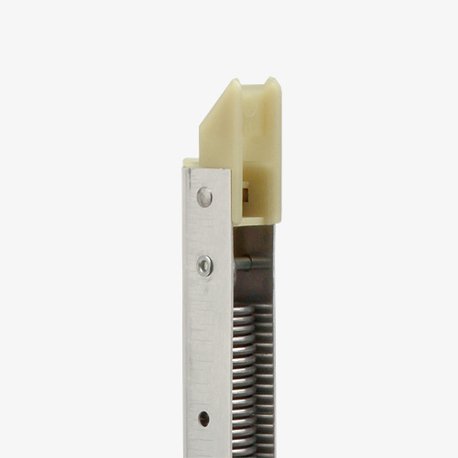

Close up view of the S351 balance top.

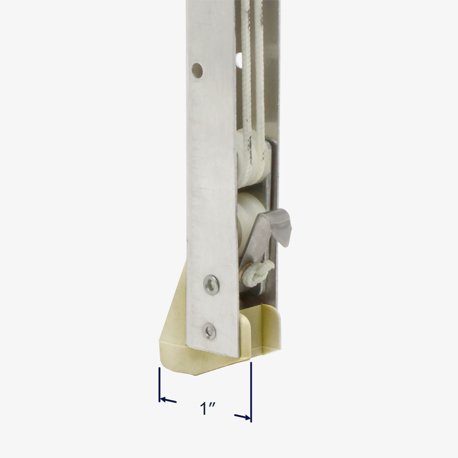

Close up view of the S351 balance shoe.
