Alenco 3753FL pivot shoe

A handy person from Tampa, Florida says:
March 9, 2023

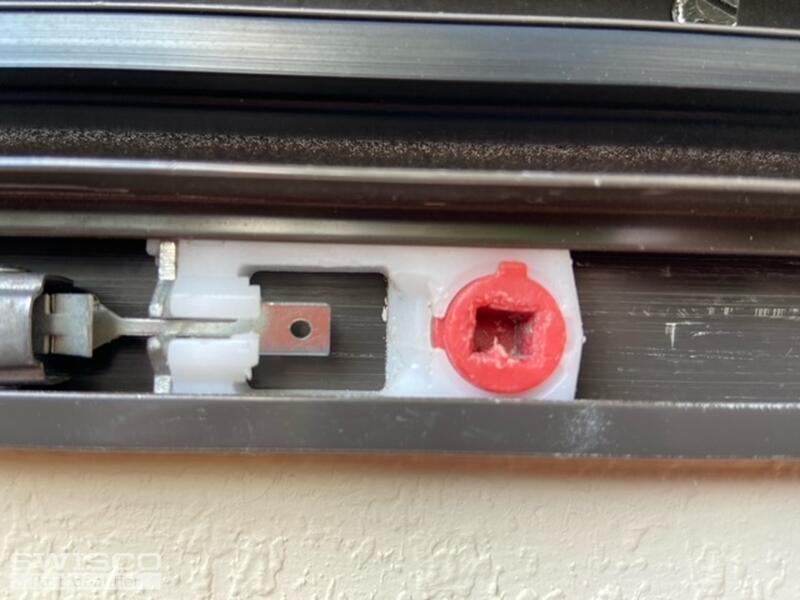

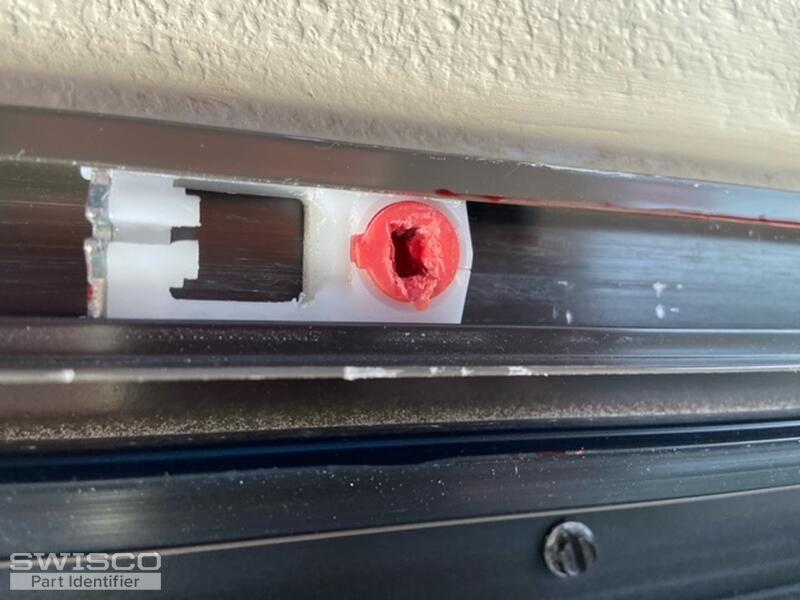

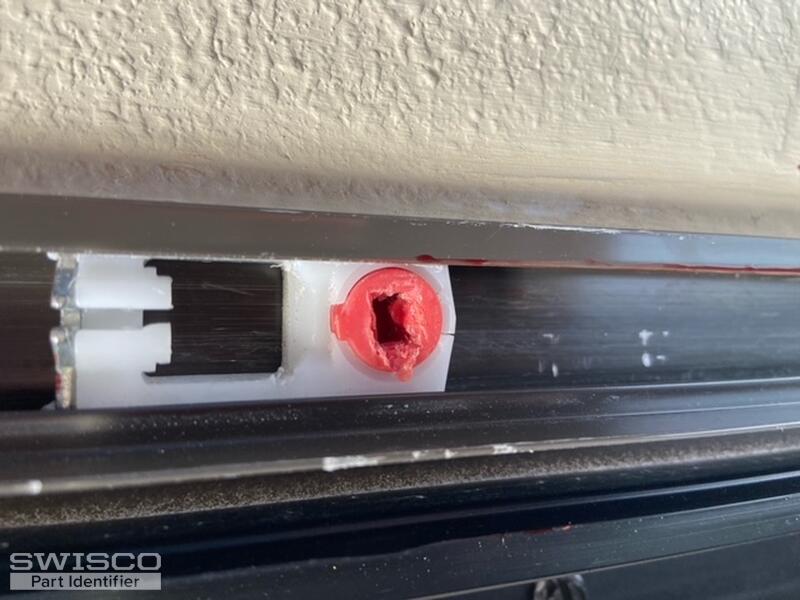

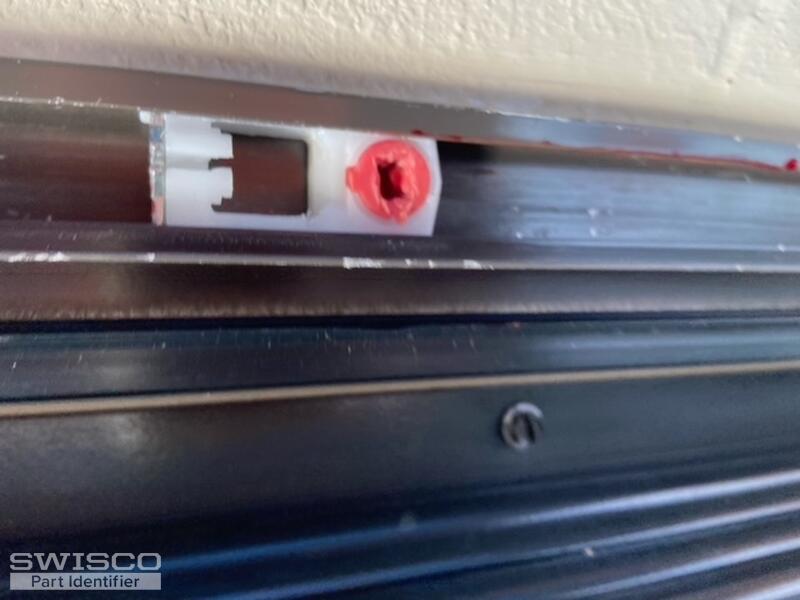

Pivot shoe has red rectangular window slot and rides inside the channel.
Thumbnail of the uploaded file named pivot lock 2.jpeg
Thumbnail of the uploaded file named pivot lock 3.jpeg
Thumbnail of the uploaded file named pivot lock 4.jpeg
Thumbnail of the uploaded file named pivot lock shoe 1.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 10, 2023

Hello! This shoe looks very similar to our 15-134. I recommend reviewing our dimensions to verify that they match up before you buy anything, though. Take special note of the width and thickness; height doesn't matter too much.

If they differ in any way, let me know how and I can see if we have anything closer.

Alternate image for 15-134
Alternate image for 15-134
A handy person from Tampa, Florida says:
March 21, 2023

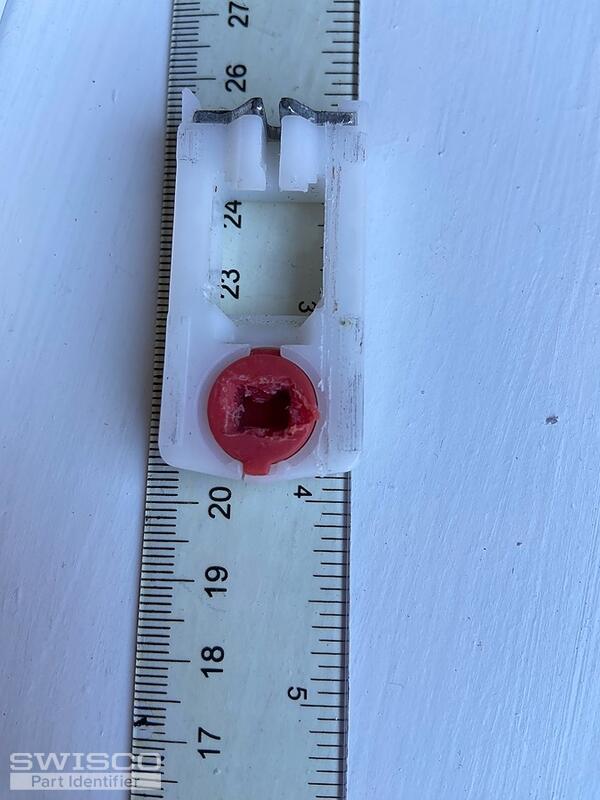

The pivot shoe width and thickness are the same.
The height is 1 15/16". This is 1/8" shorter.
The slot is 1/4" x 1/4"
Will the 15-134 work?
Thumbnail of the uploaded file named Pivot shoe length 1 15-16 inch .jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 22, 2023

The height doesn't matter so much, but width and thickness are very important. Those dimensions being the same is a good start.

The cam is slightly different; ours is 1/4" wide x 3/16" tall. it's made to work with a pivot bar like our 26-297. You may want to double check that just to be sure.
Pivot Lock Shoe, 3/8" Thick
Pivot Lock Shoe, 3/8" Thick
15-134
$2.79
