Alenco no tilt balance 15D and 21C

Quick Learner from Pensacola Fl
Jul 10, 2024 2:53 pm
Alenco no tilt balance 15D and 21C - please provide link to order replacement.
3 Replies
Tom
Tom from SWISCO
Jul 11, 2024 12:28 pm
SWISCO
EXPERT

I'm not sure what you have, unfortunately. We have dozens of different balances with those stamps. They're not product codes or anything, they just indicates the strength of the spring.

In order to figure out what Series this is, I need you to remove an undamaged version of this balance from the window and show me clear pictures of the top and bottom nylon fittings. I will also need to know the dimensions of these fittings.

Quick Learner from Pensacola Fl
Jul 16, 2024 12:41 pm

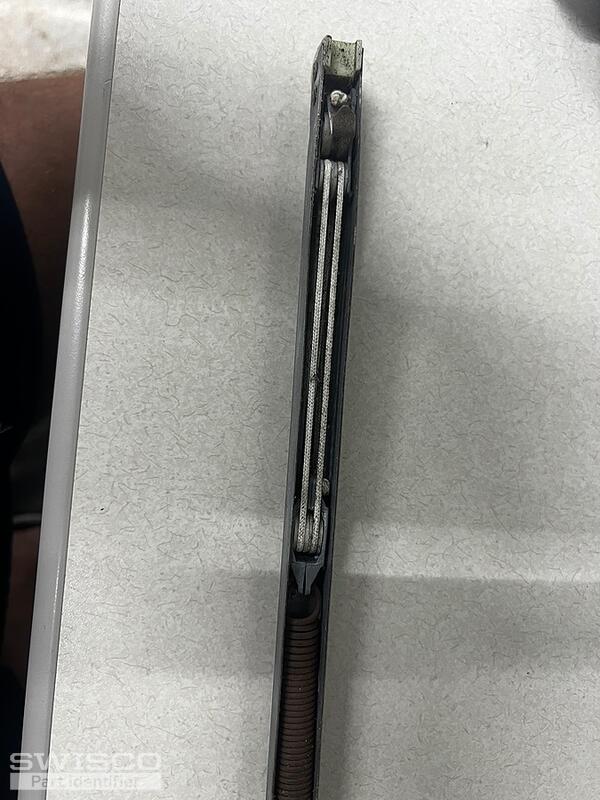

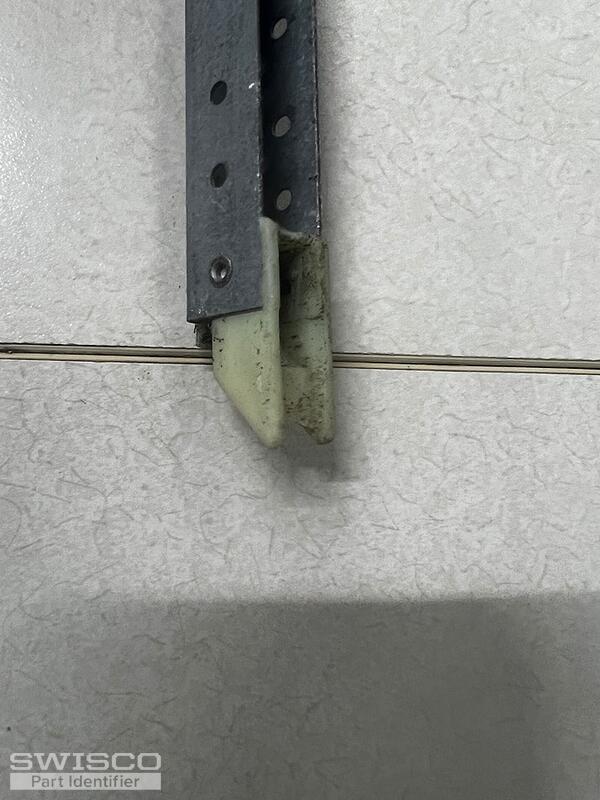

Alenco window. One is stamped 15-d-40. The other is bsi 21-c.
IMG_8735 IMG_8734 IMG_8733 IMG_8732 IMG_8730
5 user uploaded images
Tom
Tom from SWISCO
Jul 17, 2024 9:10 am
SWISCO
EXPERT

You could have either the S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

You'll also need 1540 spring strength options for your 16" replacement balances. You'll also need 2130 options for your 22" balances. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
