Hi.
I have 6 windows with damaged balancers, but I don't know what series they are or how to identify them.
I would like to remove the top panel but I don't know the procedure.
I am attaching some pictures in hopes that you can give me some advice on how to do the repairs.
I will need to order parts for at least 6 repairs.
I'll really appreciate your kind replay.
Thank you very much.
Alenco's window balancer replacement
Home Owner from Shasta County Redding California
Sep 20, 2023 11:18 pm
5 user uploaded images
4 Replies
Jasmine from SWISCO
Sep 22, 2023 3:54 pm
Thanks for writing in! I am confident that we can supply you with the replacement balances needed for your window. I'll just need to see a photo of them removed from the window. I'll need to see the top and bottom attachments to identify the correct replacement.
Take a look at the video below for instructions on how to remove these balances.
Home Owner from Shasta County Redding California
Sep 24, 2023 11:04 am

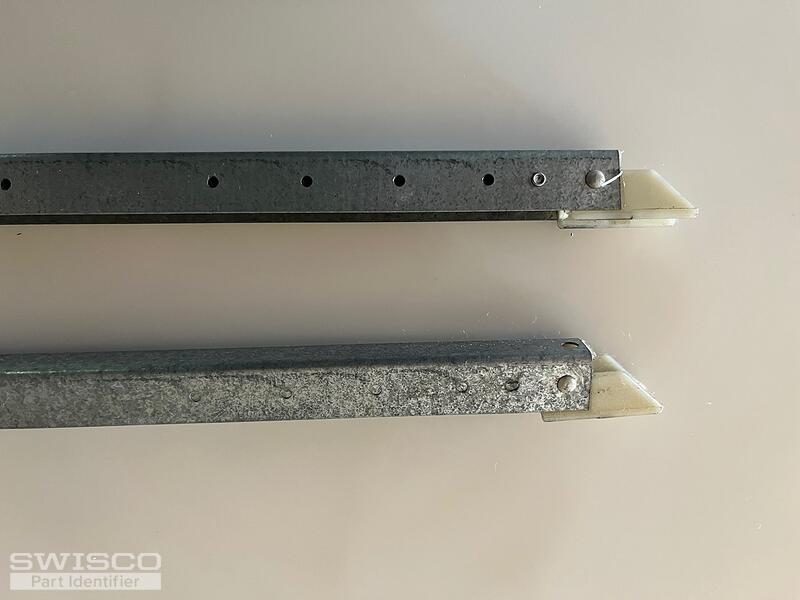

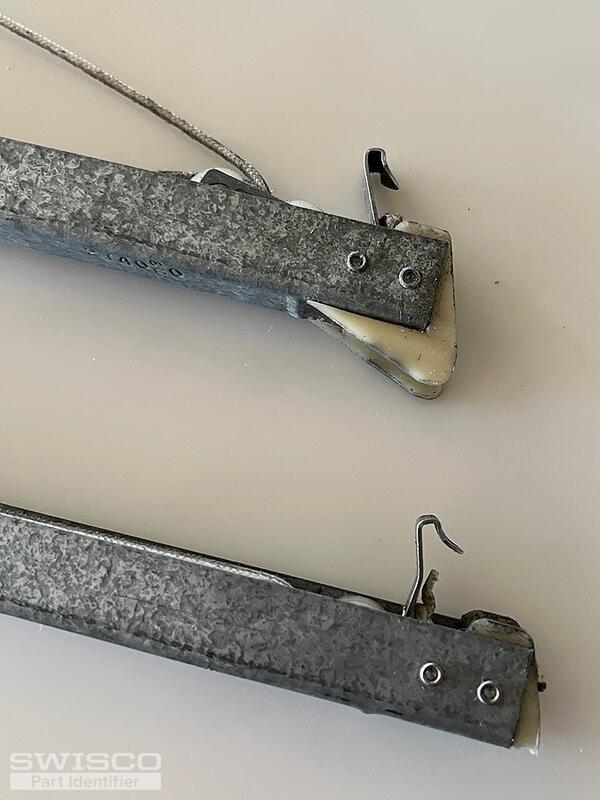

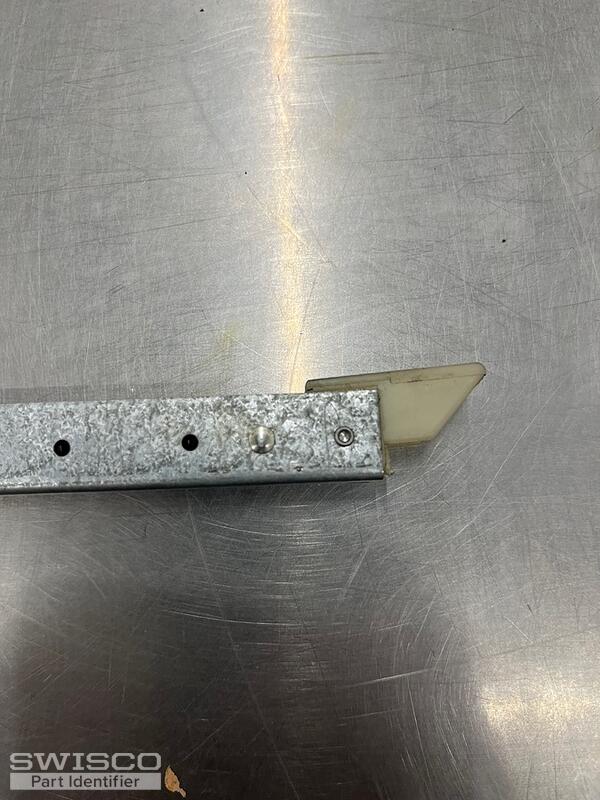

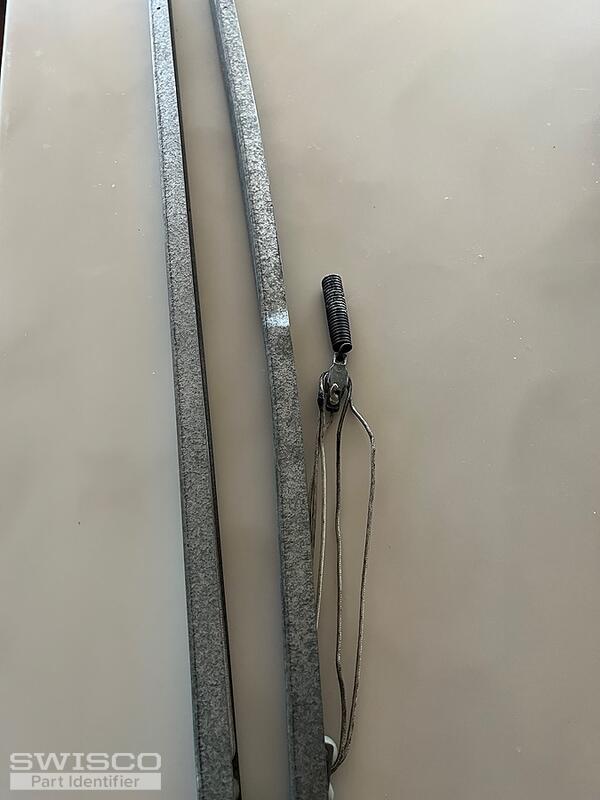

Thank you Jasmine for your reply and link to the videos, I was able to remove the window's channel balances and here are the pics, the metal length is 28" width 1/2"
I have already ordered a dozen balances and take up clips, please refer to order # 2173014
Customer # 491503

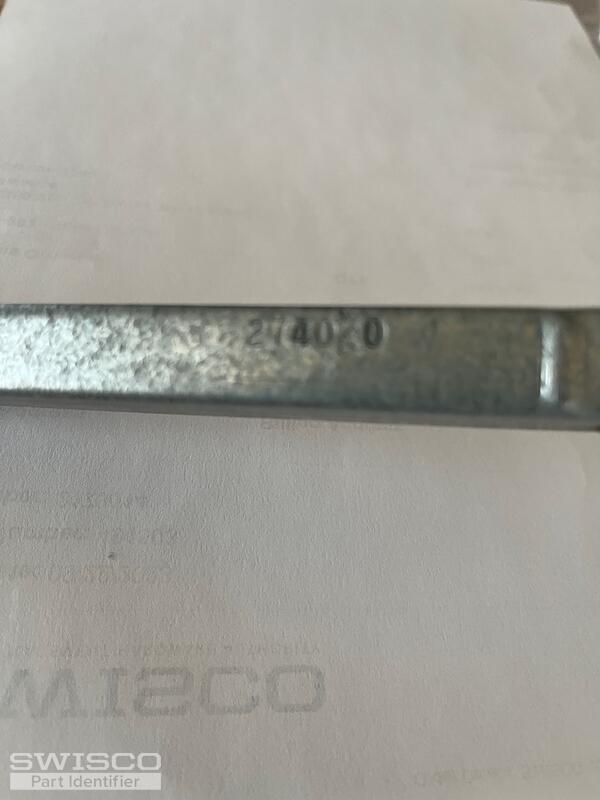

I ordered part # S350-28 your online catalog shows option 2740 and the stamping on the channel reads 274020. Please review the order so I can get the right parts.
Thank you.
I have already ordered a dozen balances and take up clips, please refer to order # 2173014
Customer # 491503
I ordered part # S350-28 your online catalog shows option 2740 and the stamping on the channel reads 274020. Please review the order so I can get the right parts.
Thank you.
5 user uploaded images
Jasmine from SWISCO
Sep 25, 2023 11:22 am
Based on a review of your photos, it appears you have either the S351-28 with a 1" shoe or the S390-28 with a 1-1/8" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe.
You'll need to select the 2740 stamp.
Comparison of the S351 and S390 balance shoes.
