Alpine window

A quick learner from Mukilteo, WA 98275 says:

Hi,

I would like both Chanel Balances for this window. It is an Alpine and the slider portion of the window is about 26 1/2" wide and 28 1/2" high. As you can see the Chanel balance has the number "26 4 Caldwell KM" on it and the metal portion is 27" long.

Thanks Greg

Thumbnail of the uploaded file named Alpine1.jpg
Thumbnail of the uploaded file named Alpine2.jpg
Thumbnail of the uploaded file named Alpine3.jpg

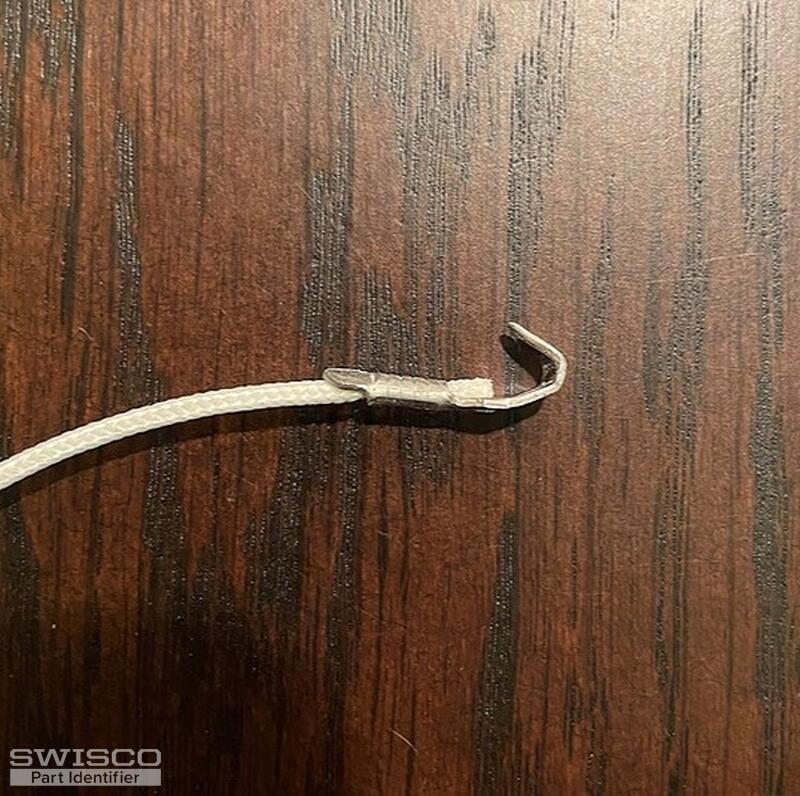

Thumbnail of the uploaded file named Alpine4.jpg

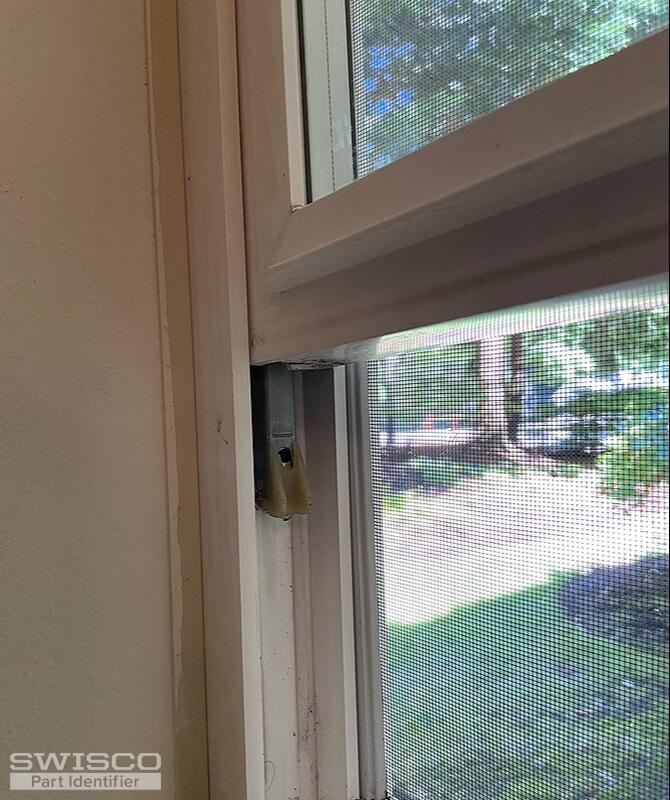

Thumbnail of the uploaded file named Alpine5.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
