Alumax double hung windows.

A handy person from Lakewood, CO says:
July 10, 2020
I see no numbers or other markings on the parts. JPG366 shows one of our problems. the plastic part that the metal stub on the window goes into is broken on a couple of the windows. Am also wondering how to replace that sliding part on JPG366 and 373. It's in a channel that seems to be inflexible.
Thumbnail of the uploaded file named P1000366.JPG
Thumbnail of the uploaded file named P1000369.JPG
Thumbnail of the uploaded file named P1000370.JPG

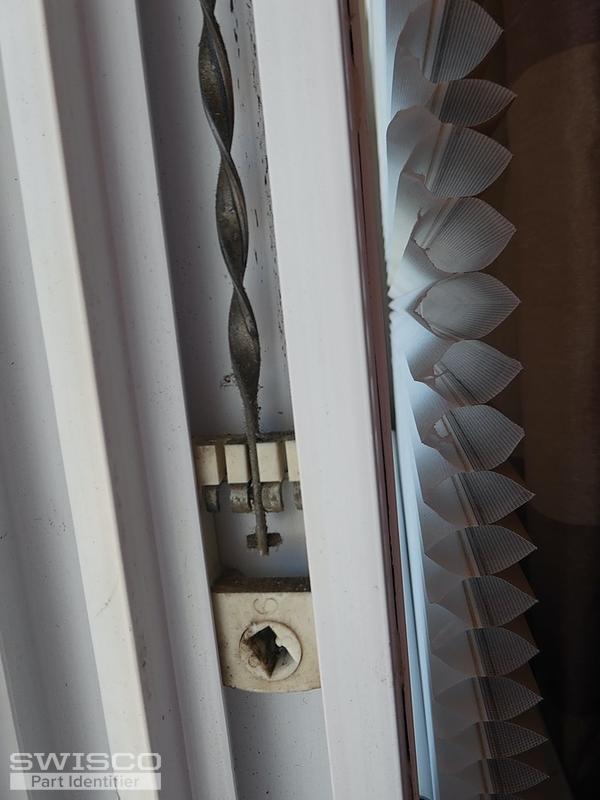

Thumbnail of the uploaded file named P1000373.JPG

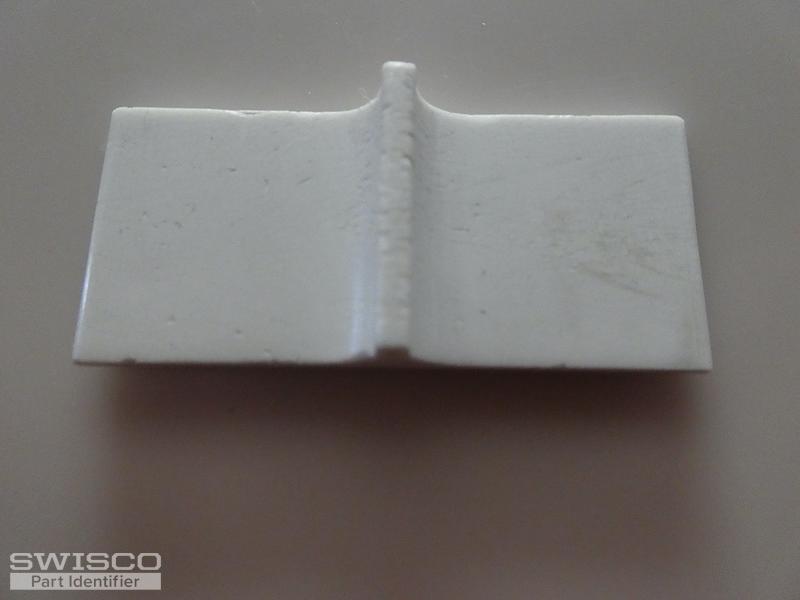

Thumbnail of the uploaded file named P1000377.JPG
Profile picture of Casey
Casey from SWISCO responded:
July 14, 2020

Hello,

Your exact pivot shoe is no longer available but we may still have one that could work for you. Once you are able to remove your hardware following the videos we've related for you, please send us the thickness of your pivot shoe, as well as the diameter of the spiral balance tube and we should be able to point you in the right direction.

Also, you can view our selection of tilt latch release levers here. Thank you!
A handy person from Lakewood, CO says:
July 14, 2020
My pivot shoe measures 9/16 thick and 1 1/2 wide. The colored tip about 1 1/2 up in the tube is blue.
A handy person from Lakewood, CO says:
July 14, 2020
Also need some weather stripping

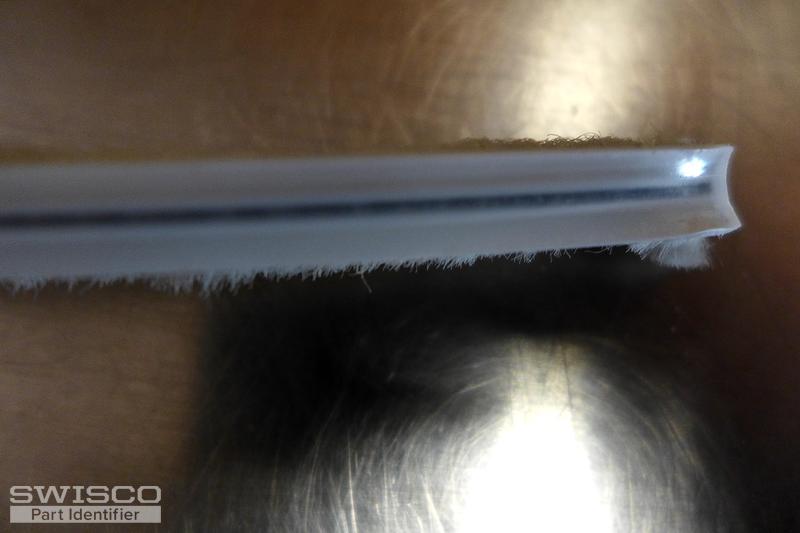

Thumbnail of the uploaded file named P1010754.JPG

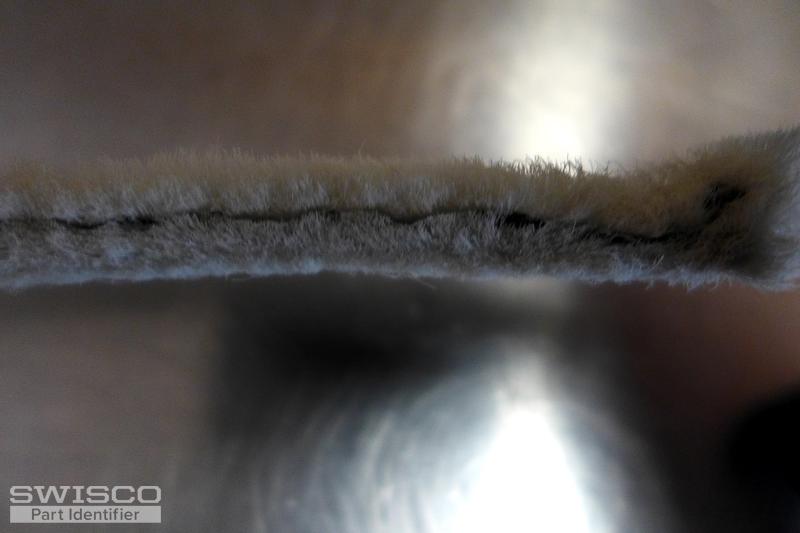

Thumbnail of the uploaded file named P1010755.JPG

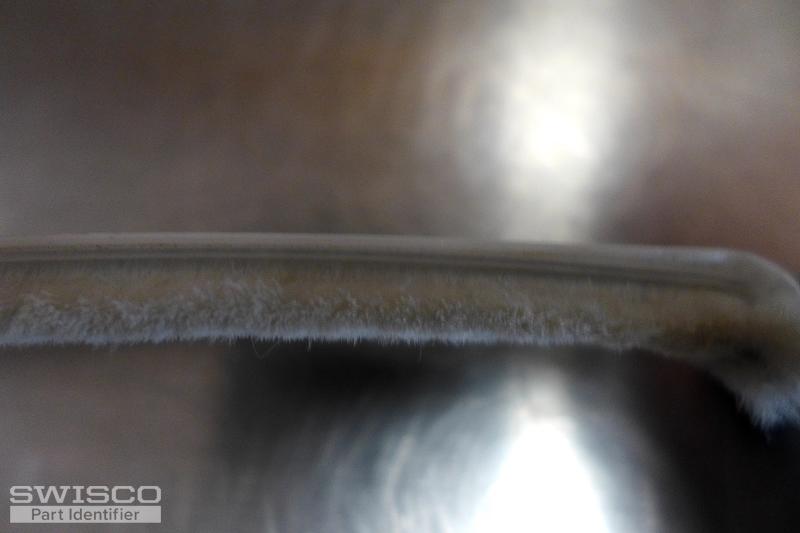

Thumbnail of the uploaded file named P1010756.JPG
A handy person from Lakewood, CO says:
July 14, 2020
The weather stripping is 1/4 inch on the plastic side
Profile picture of Casey
Casey from SWISCO responded:
July 14, 2020

I would recommend double-checking the width since 1-1/2" is unusually wide for a spiral balance pivot shoe. I would recommend starting with our 15-118 and 15-121 and comparing the dimensions to yours. As for the balance itself, you could have either our 5/8 diameter S600-22 or 3/8" diameter S900-22 with a blue tip. Take a look and see which will work for your window.

Also, see our selection of wool pile here and carefully compare the width of the backing and height of the pile to yours.
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-118
$2.20
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-121
$2.37
22" Series 900 Spiral Balance
22" Series 900 Spiral Balance
S900-22
$8.47
22" Series 600 Spiral Tilt Window Balance
22" Series 600 Spiral Tilt Window Balance
S600-22
$8.72
