Aluminum Milgard Single Hung Window Balance Inquiry

Contractor from Corvallis, OR
Hello

I am needing to purchase and replace 2 balances in an older Milgard Aluminum Single Hung Window.

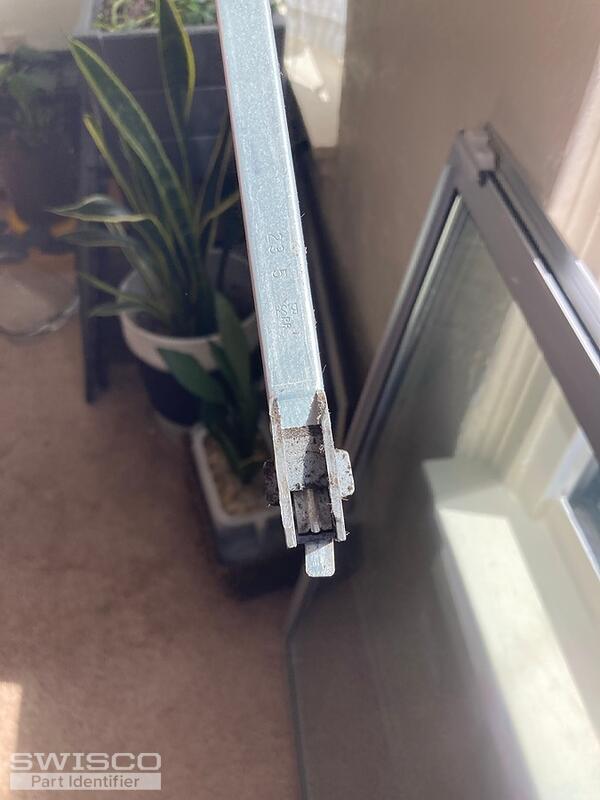

The Balances measure out at 23-5/8 (Metal to Metal)
Balance is stamped with 23 5
looking to have balances replaced with a 23 4.

Please let me know which parts are needed for purchase
4 user uploaded images
5 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We can supply this balance as a custom order, but before we go any further I need you to verify the exact weight of the sash.

For full transparency, your exact balance model isn't made anymore. There's a new model that can replace it, but the spring calibration is a little different. As such, we need the sash weight to confirm how best to calibrate this for you.

Once we know that, I can email you a purchase link and price quote that you can use to place an order on our site.

Contractor from Corvallis, OR

Good Morning

The weight of this window is 22.56lbs, Thank you!

Brandon

Tom
Tom from SWISCO
SWISCO
Expert

Thanks! That's perfect. We'll be going with the 2340 stamp. This carries 18 through 23 pounds, so you were able to squeak just under the threshold. It will still carry your sash weight.

I'll email you a purchase link and price quote now that will let you order this on our site. We also happen to have 2 in stock, so there will be no lead time. You got our last ones!

Tom
Tom from SWISCO
SWISCO
Expert

No problem! Please let us know if you have any future hardware questions.
