Aluminum frame patio door wheels

Quick Learner from 60803

Apr 29, 2020 3:11 pm

There is a number on the side I believe is D170 or D179. I have searched and can't find a exact match. There is a piece that this piece fits into that mounts the assembly mounts to. Unfortunately I dont that piece in my hand. Please recommendations

3 user uploaded images

4 Replies

Tom from SWISCO

May 4, 2020 11:17 am

This looks to be just the internal component of a larger roller assembly. That may be why you can't find a match; the external housing is an important part of identification. It's probably still in the door. We'll need to see the whole assembly together in order to find a good match.

Tom from SWISCO

May 6, 2020 1:23 pm

I wish just any roller assembly would work in this kind of door, but that is unfortunately never the case. These are precisely sized parts and you really do need an identical match. That would make my job easier, though.

Fortunately, I recognize yours. It looks just like our 81-027. I recommend carefully going over our dimensions to confirm they line up, but I feel confident that this is the part you're looking for.

Quick Learner from 60803

May 6, 2020 1:39 pm

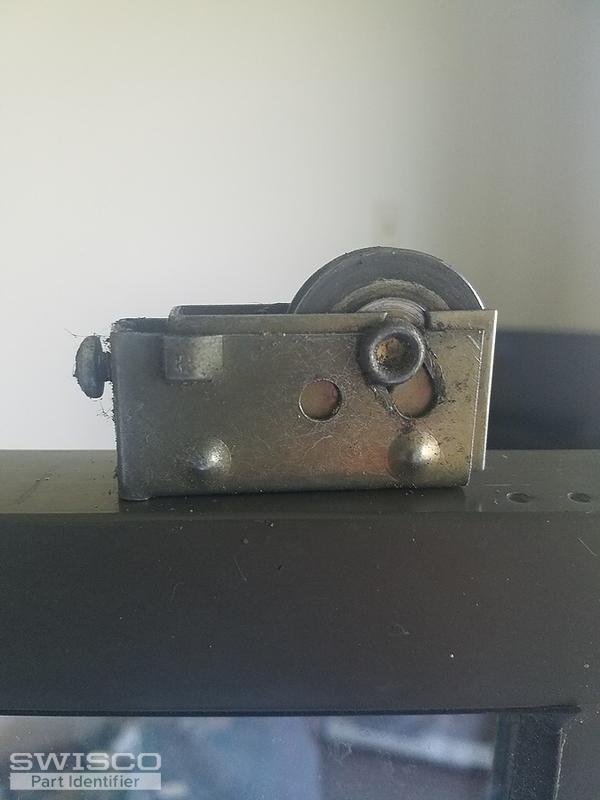

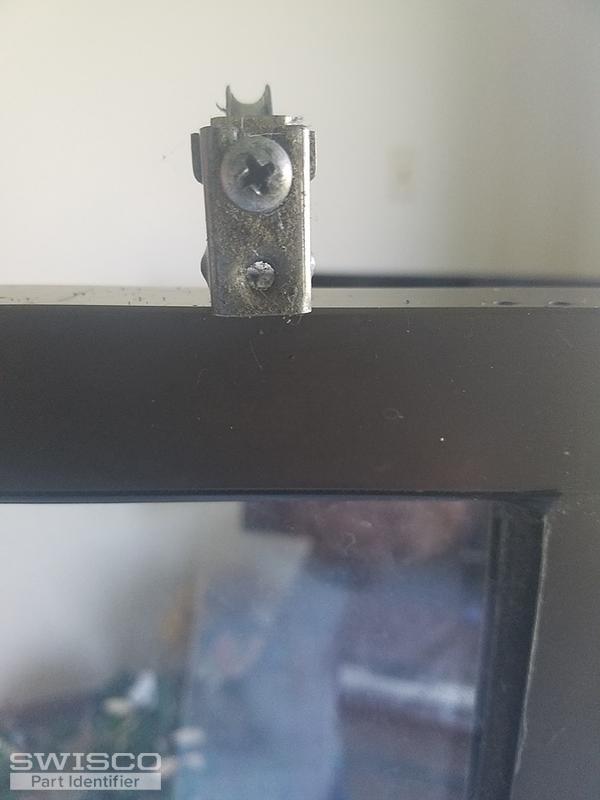

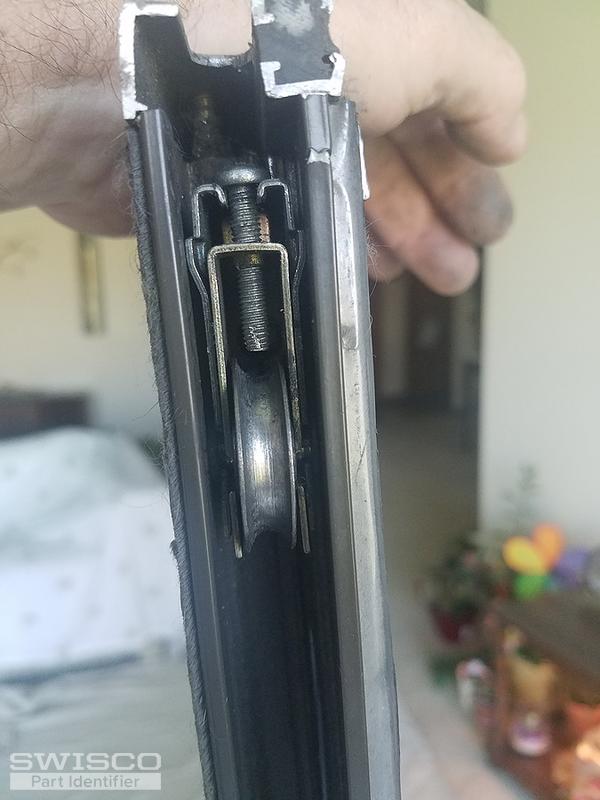

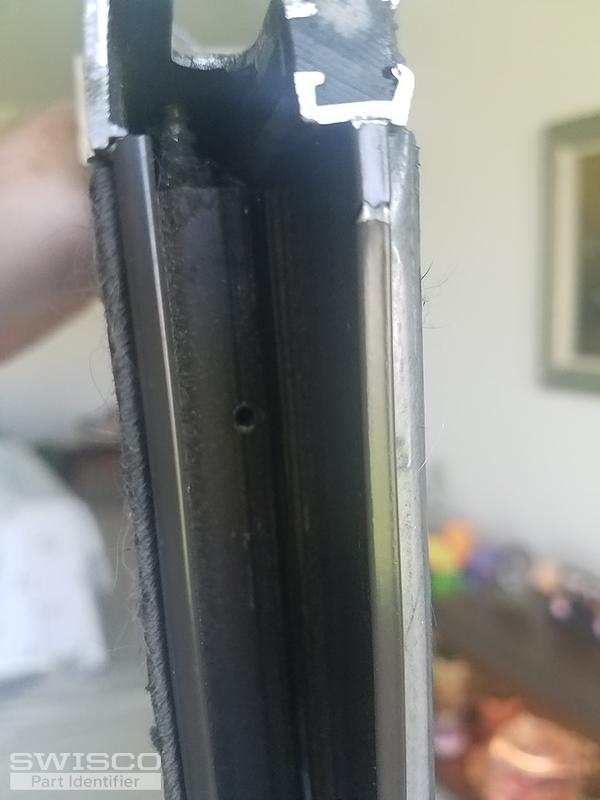

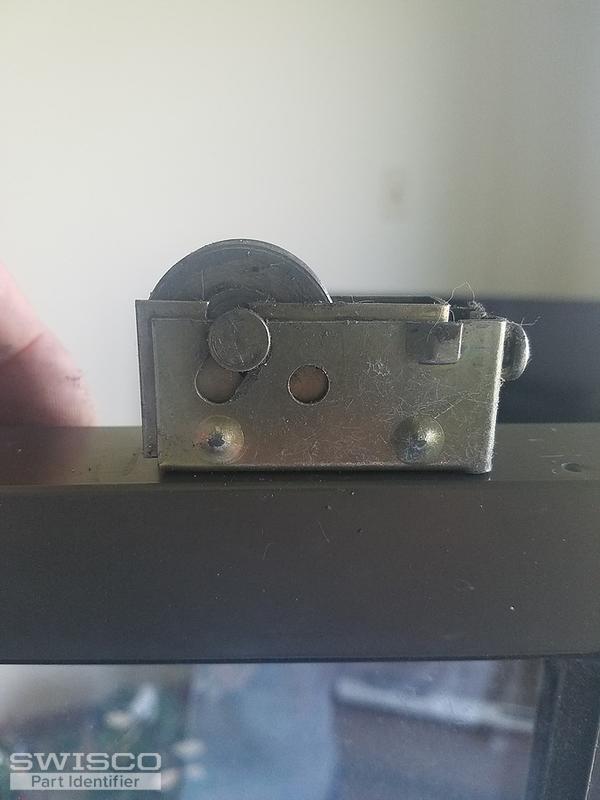

Hi here is the roller with the outer piece connected. Left and right view. With it in the track and out of the track. Seems any roller assembly will work long as it has the adjustment screw on the end. It has a single short screw holding it in t hff e frame. Thanks, Tom

5 user uploaded images
