Aluminum frame window roller

Home Owner from St George
Hello,

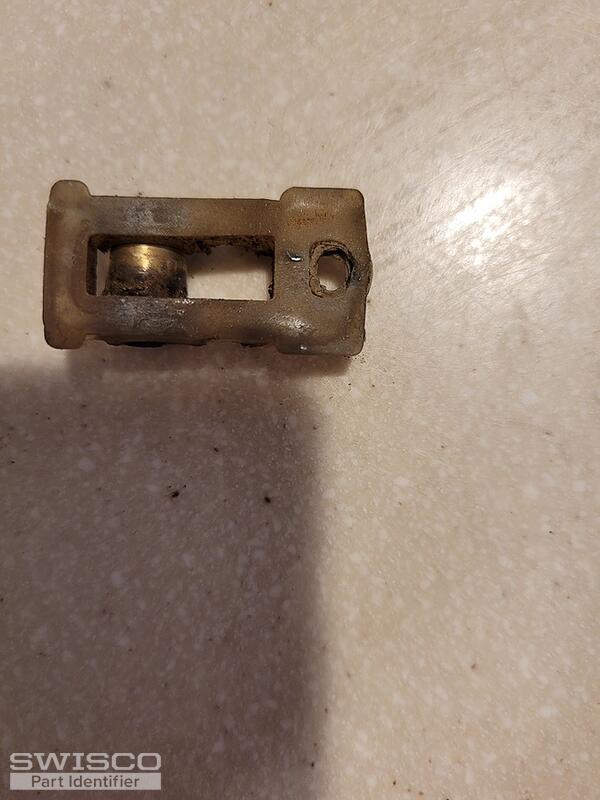

This slider / roller assembly is off an aluminum frame window approx 48" wide by 40" high. (sliding portion 24" wide). The other roller is completely destroyed, no rollers around. I'm not sure if the one that I have included pictures of originally had one or two rollers.
Description:
Height of piece including plastic and roller = 1/2"
One screw hole in center on one end
Wheel diameter = 3/8"
Width = 3/4" at the top, necks down to about 11/16"
Length = 1-5/16" ish , but there would not be a max Length for a replacement.

Thank you in advance!
4 user uploaded images
3 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I don't recognize this roller at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available. Thank you!


Paul
Paul from SWISCO
SWISCO
Expert

Thank you for the photos and dimensions. Please look over the specifications of our 87-187 roller. The nylon housing width is 3/4", the height is 7/16" and the length is 1-1/2". The wheel is 1/2" but the complete height with the exposed wheel is 9/16", like yours.
