Aluminum sash lifter

A handy person from Bonita Springs, Florida says:

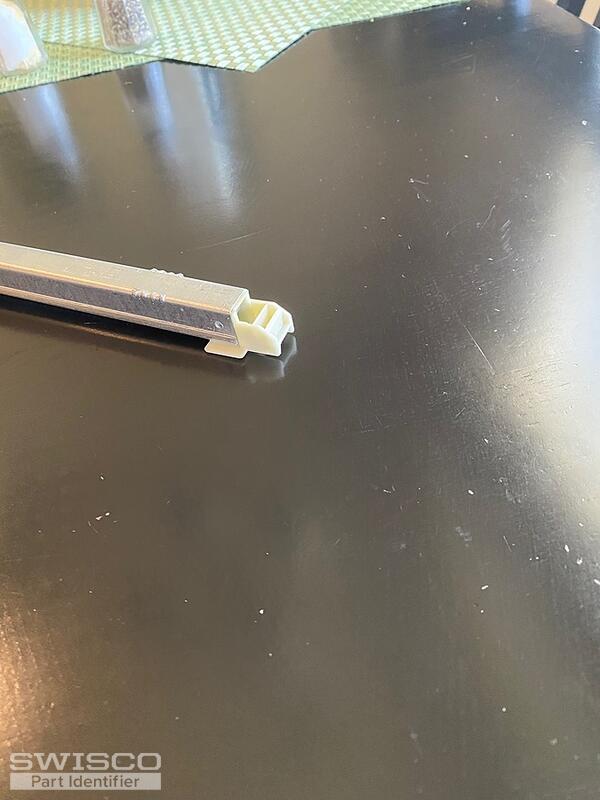

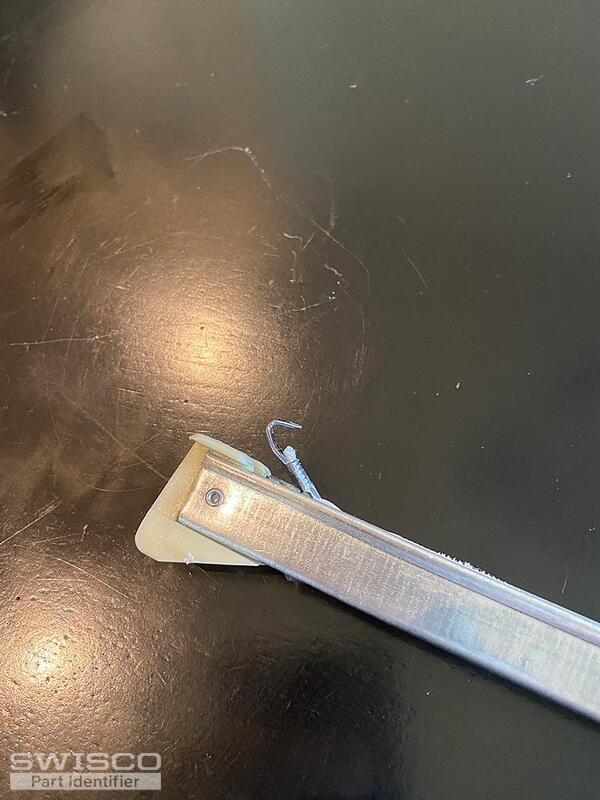

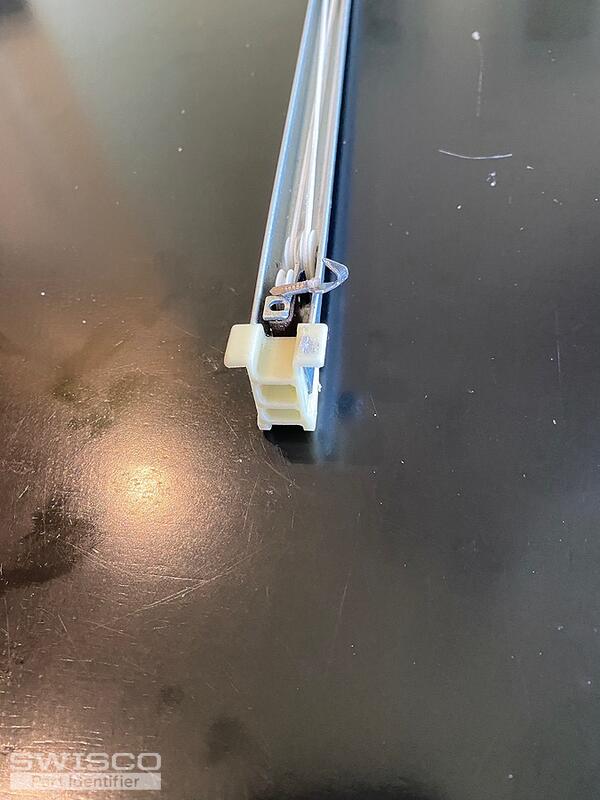

Metal length is 30 inches (does not include end pieces)

Thumbnail of the uploaded file named C783661D-750F-4BCB-932A-06C30C24C6CC.jpeg
Thumbnail of the uploaded file named 337A773B-5A5B-41A0-A109-803940819351.jpeg
Thumbnail of the uploaded file named BC2066EE-A5A9-4169-BDC5-943CEA00BAA9.jpeg
Thumbnail of the uploaded file named 59D4D1D9-A2A1-4DE1-9CD0-9C42B366D1B1.jpeg
Thumbnail of the uploaded file named 961D35B1-737B-4D0D-8520-A891A838D90A.jpeg
Profile picture of Tom
Tom from SWISCO responded:

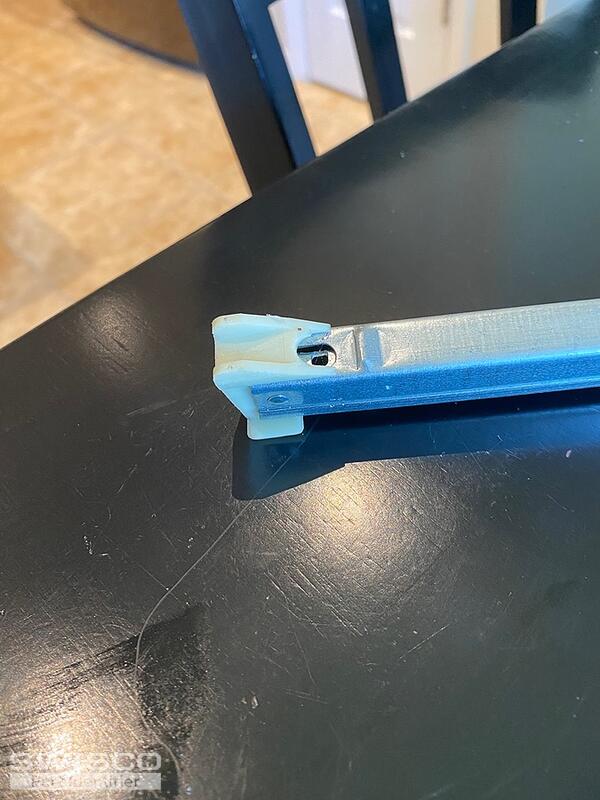

Thanks for your photos. Based on what I see here, you have either our S380-30 or S385-30, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

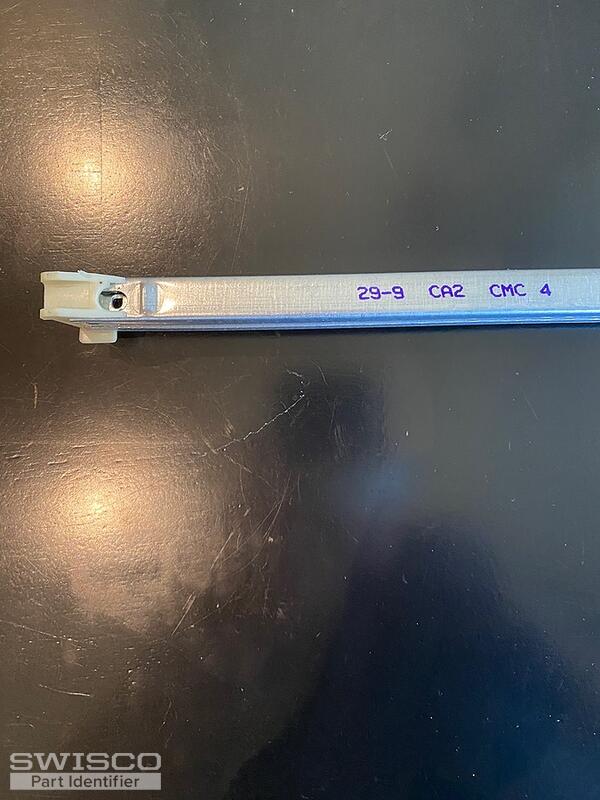

I also note that your stamp reads 29-9. That "-9" suffix is different from how our balances are rated. You will need to get your precise sash weight in order to determine the proper option for one of the two balances mentioned above. We have a weight chart on each store page that you can use as a reference for picking the best one.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

A handy person from Bonita Springs, Florida says:
The foot is 1 inch?the sash weight is 20 lbs
Profile picture of Tom
Tom from SWISCO responded:

Great, thank you. That would make it the S380-30. For a 20 pound sash, I'd suggest the 2930 option; as you can see on our store page, that option carries 16 through 23 pounds.
