Aluminum, single hung, mfg 2002 or 2003.

Quick Learner from Northern Arizona

May 11, 2020 7:20 pm

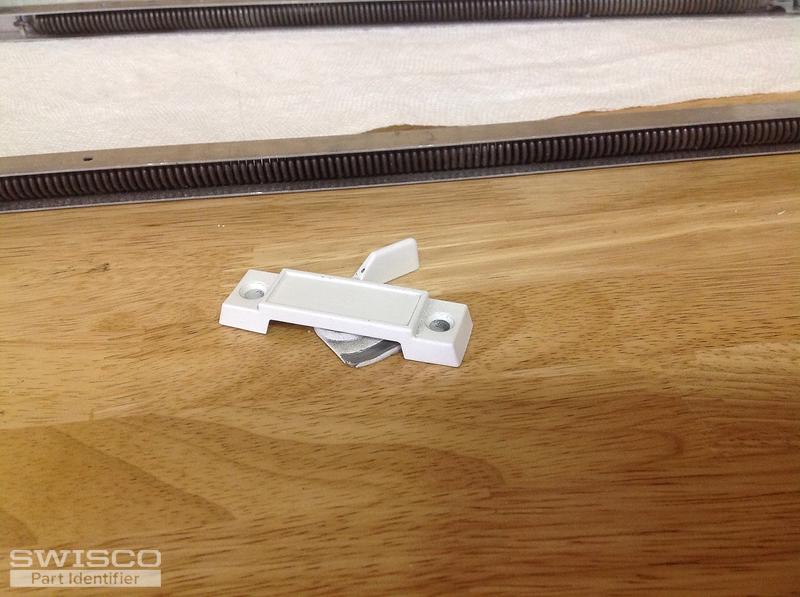

I need 4ea balance springs, metal channel is 1/2" by 28" without top & bottom pieces. #2740 stamped on side. I need 8ea of the little tiny clips the go on the sides of the sash. I need 2ea of the latches, holes are 2 1/4 in on center, opening for the striker is 3/8th of an inch.

4 user uploaded images

6 Replies

Casey from SWISCO

May 14, 2020 8:33 am

Hello,

It looks like you have either our S351-28, with a 15-002 bottom attachment, or S390-28, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need 2740 spring strength options for your replacement balances.

Comparison of the S351 and S390 balance shoes.

As for your lock, start by comparing the style and dimensions to our 90-075. I'm not sure what the small piece of black plastic in your photo could be but I'm assuming it's part of a larger assembly. Could you show us an undamaged part and where is installs? Thank you.

Quick Learner from Northern Arizona

May 15, 2020 4:43 pm

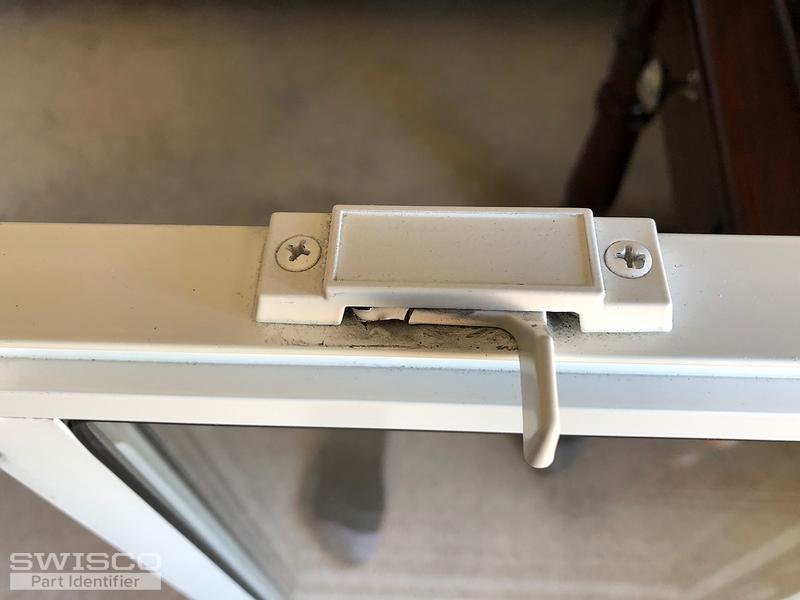

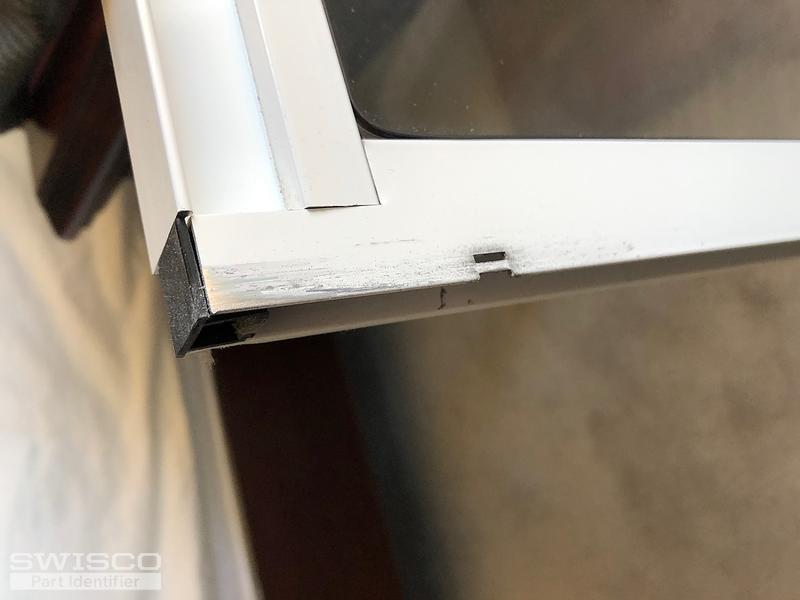

Casey, I can't tell the difference between the 351& 390. See pic. The small black clip goes on the window (see pic) I'm guessing as a rub block. The window lock looks like your 90-005. Let me know if you need further information. I need these ASAP. Thanks and have a great weekend! Paul

3 user uploaded images

Casey from SWISCO

May 18, 2020 7:41 am

Hello,

We had a new diagram drawn up that will hopefully make the difference in the depth of the S351 and S390 balances more clear.

Comparison of the S351 and S390 balance shoes.

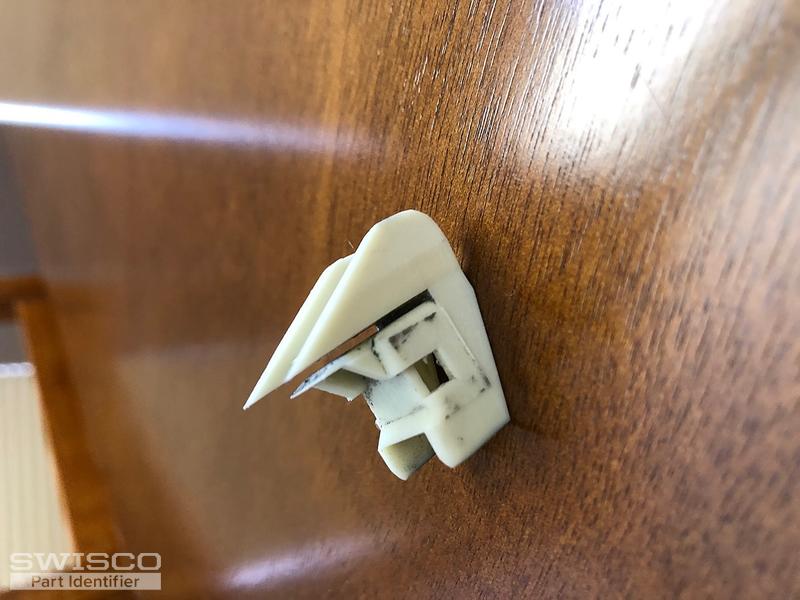

As for the piece of black plastic we were trying to identify, I believe it's a top sash guide. We should be able to replace it, but we will need to see an undamaged guide full removed from the window sash, with dimensions, to compare to our selection. Thank you.

Quick Learner from Northern Arizona

May 18, 2020 3:50 pm

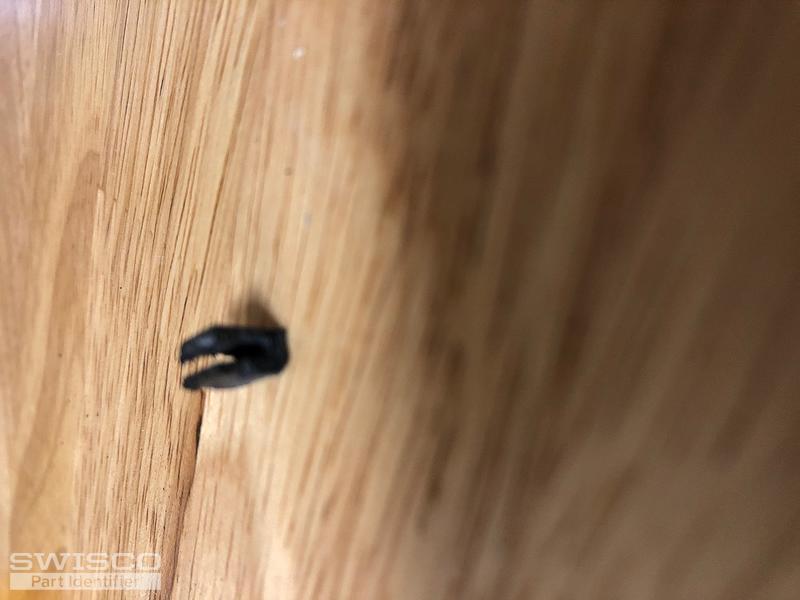

Casey, looks like the S351, 15-002 foot. It is 1". The sash guide is a U- shaped plastic piece and installs on the window sash (4ea). I need 8 of them. It is 1/4" X 1/4" X 1/8" wide. Also the 90-005 latch. Can you give me a price with shipping also? Thanks!

1 user uploaded image

Casey from SWISCO

May 19, 2020 7:18 am

The "U" shaped piece of plastic might be a face guide, which, unfortunately, we don't carry in the style you're looking for. As for your balances and sash lock, your total and shipping options will be calculated at checkout. Thanks for posting.
