Aluminum window

Start a new Discussion

Quick Learner

Aug 3, 2020 1:27 pm

the rod is 34 " silver...total length 35"
looking to get the replacement rod and socket attachment.looks like the 5/8"

2 user uploaded images

6 Replies

Tom from SWISCO

Aug 6, 2020 12:40 pm

This looks like a tilt window spiral balance. You would want either our S900-34 or S600-34, depending on the diameter of the outer tube.

I'm also not sure what the attachment you mention could be. I'd have to see a photo of it to recommend anything.

Quick Learner

Aug 6, 2020 10:23 pm

The bottom part of the rod that the window pin swivel on.

1 user uploaded image

Tom from SWISCO

Aug 7, 2020 8:43 am

Gotcha. That sounds like a pivot shoe, but I don't see any pivot shoe in your photo. I need to see one in order to make a recommendation. We will also need to know its precise width and thickness.

Quick Learner

Aug 9, 2020 2:51 pm

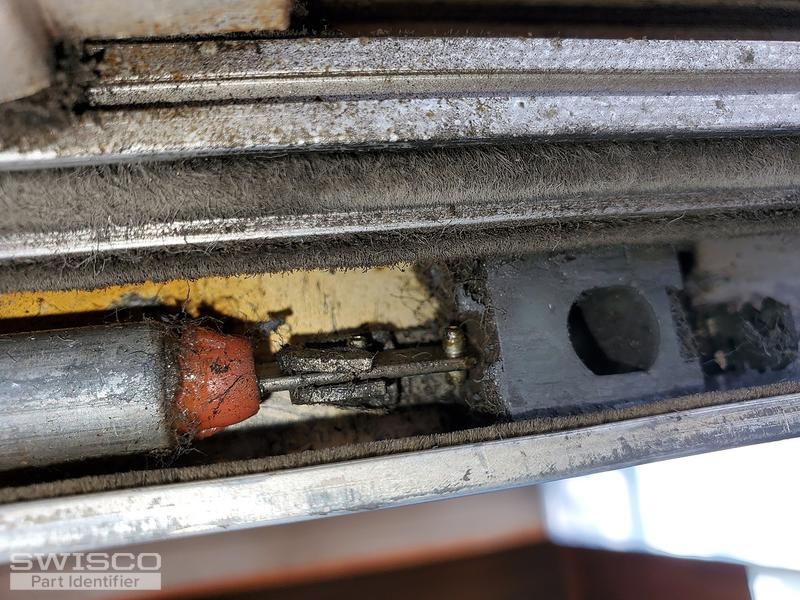

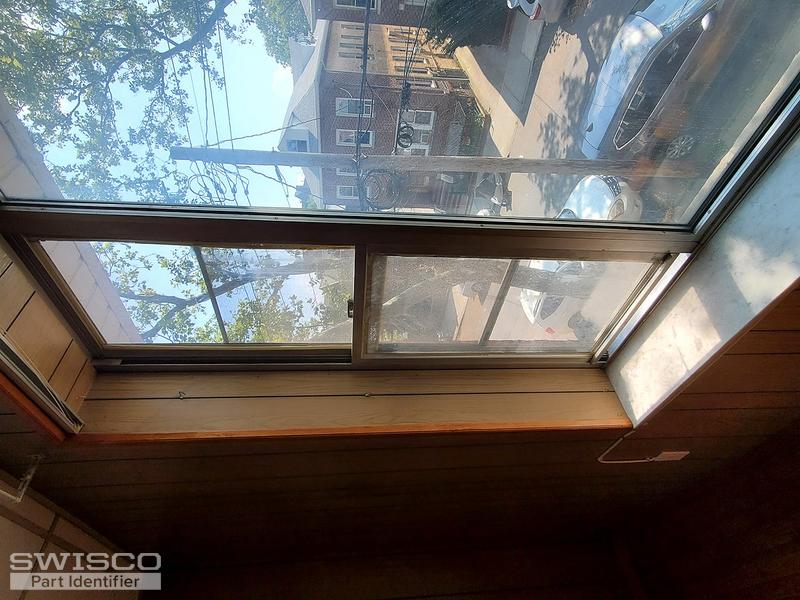

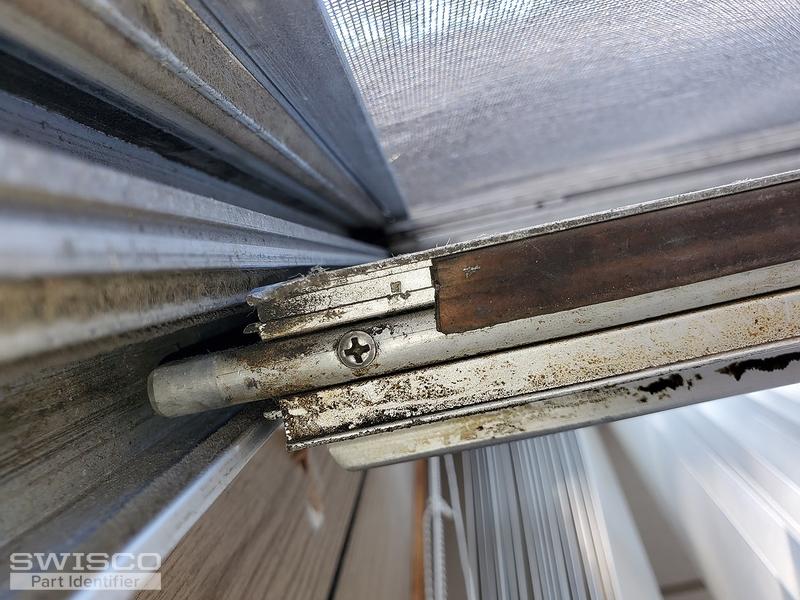

Its an aluminum double hung tilted window.
See attached pic.

3 user uploaded images

Paul from SWISCO

Aug 10, 2020 2:19 pm

You have a very early aluminum window. We have the S600-34 balance that should work for you, as well as the 75-006 charging tool, but we won't be able to get that nylon fitting with the hole and metal clip. Those haven't been made in a long time and I don't know who would sell these anymore.
