Aluminum window parts

Contractor from Daphne Alabama

Apr 5, 2019 12:34 pm

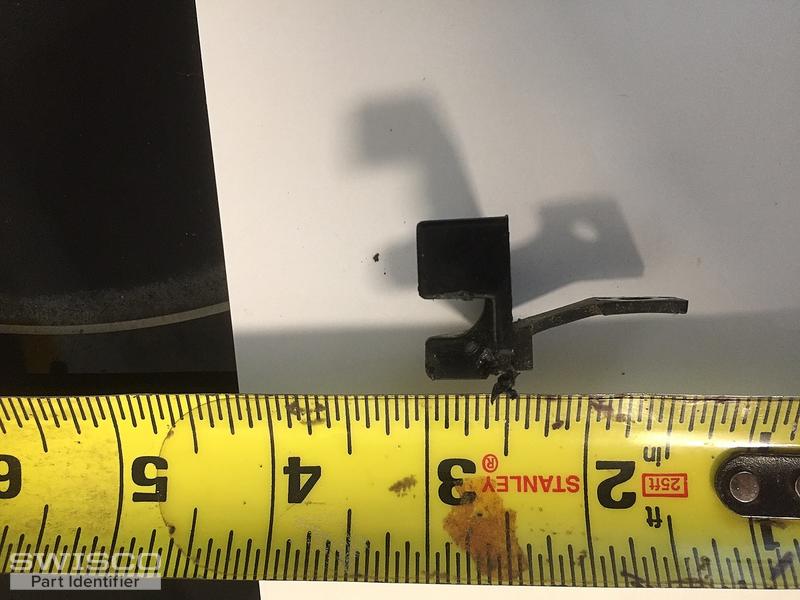

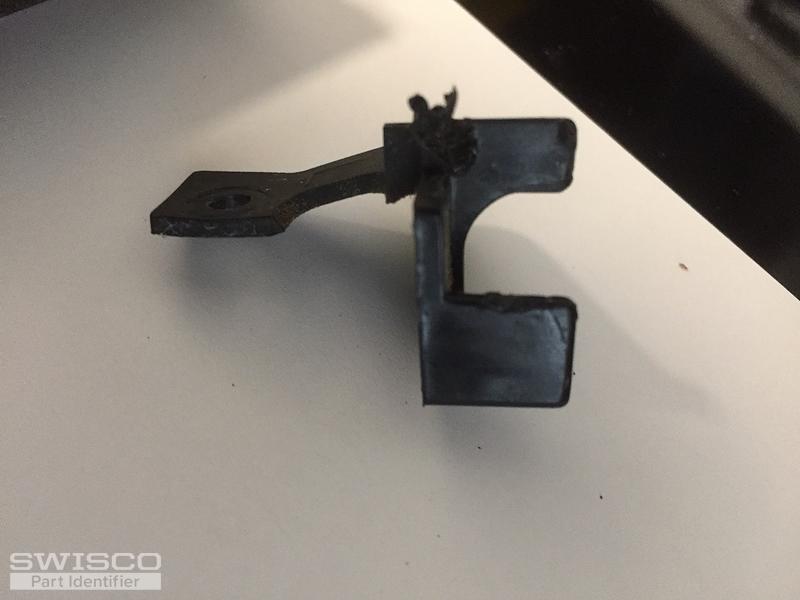

I need left and right hand plastic window sash holders. They fit into the right and left corners of the window to keep it in the track. The window latch I have looks bigger than the one I saw on your site. Any help would be appreciate andnifbuou have these parts I need them. Thanks 615-428-9536

5 user uploaded images

7 Replies

Contractor from Daphne Alabama

Apr 5, 2019 12:52 pm

Window shock twisted rod style with two little rivet that sit inside a plastic piece. Shock is roughly 27" long

1 user uploaded image

Tom from SWISCO

Apr 5, 2019 3:41 pm

Can you send us pictures of the part removed from the window? This will allow our parts experts to better recommend replacement options for you.

Contractor from Daphne Alabama

Apr 6, 2019 9:42 am

The parts I really need are in the previous message I sent. They are attached to the email you responded to. 3 different items , the window hasp, plastic latches that keep the sash in place, and the shocks. I can take another photo of the shock Monday. Thanks

Tom from SWISCO

Apr 8, 2019 10:00 am

Going through our archives, we believe you have the old Cavco aluminum tilt window. I'm afraid that they went out of business in the last century and very few parts remain in circulation.

For instance, the lock and top tilt latches are no longer available. I don't know anyone who may still have these. You might be able to replace the top tilt latches with a surface mount like our 26-193 and 26-194. This would require drilling new holes.

As for the balance, we can replace it but it would have to be a special order. We'd be using our Series 600 with a 15-035 attached. Does that look good to you? If so, let me know the length of the outer tube and the weight of the sash. Do your best to weigh it; you may not be able to remove the sash from the window, so if that's the case just put a scale on the sill and gently lower the sash onto it. It won't be perfect but it'll do for our purposes.

Finally, let me know how many balances you need. Once I know that, we'll email you an order link and price quote for the desired quantity.

Tom from SWISCO

Apr 9, 2019 10:21 am

Sounds great! If you can do the fitting yourself, then we recommend using the 62-001 rivet to attach the 15-035 to your balance. Based on your information, I'd go with the Red Tip S600-28. Let me know if that all looks right to you or if you had any other questions.

Contractor from Daphne Alabama

Apr 9, 2019 10:38 am

Hey Tom, I weighed the sash I'm olace it's about 10 lbs by scale but may could be 12lbs. My balance is 28" long and the tube itself looks to be 3/8" inch in diameter. If you think these will work I can do the fitting of the parts. The tilt latches you recommend are cool also. I can make those work. I know I need two balances, and let's do 6 slide tilt latches.

Thanks
