Aluminum windows

Hello,

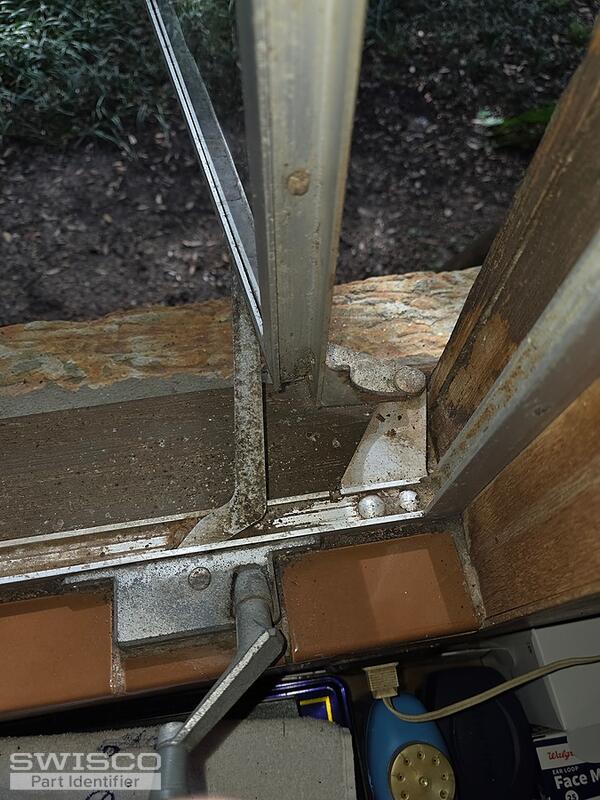

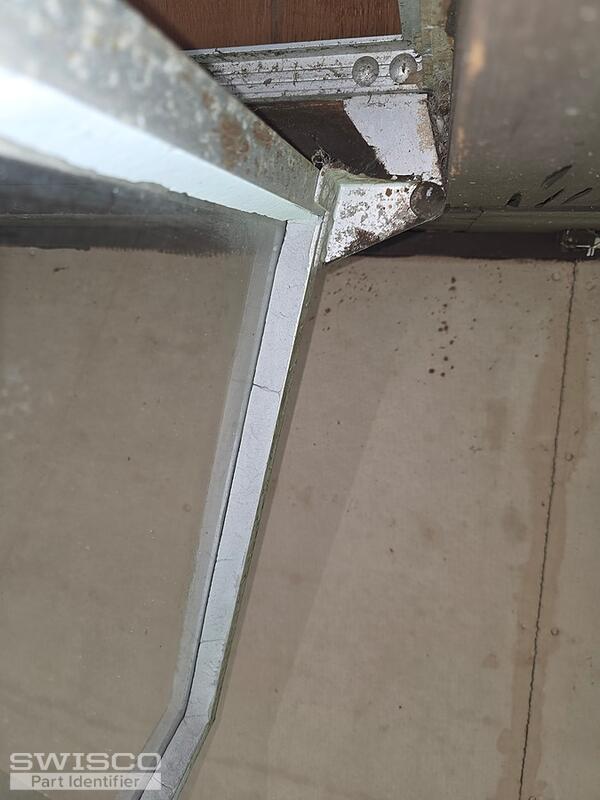

I don't recognize this exact operator at first glance, but I'm going to have one of our senior experts take a look and see if you might be able to adapt one of our replacements to work. We'll reach out as soon as more information is available. Thank you!

Take a look at the 39-001 operator. This looks like the best match for your window. The only issue is the design of the mounting holes. Your mounting holes use screws that install through the back of the operator, whereas the 39-001 has mounting holes designed to screw through the front. You may be able to use the SS #10-24 33-205 threaded nuts to install the screws through the back of our replacement operator. Note that you will need to purchase screws to fit the nut and determine the length you need to fit your window. You could also use a nut and bolt to install the operator. Take a look at the suggested operator, along with the related videos.

Dimensions for 39-001

Close up image of the button height

Alternate image for 33-205

Great. If you run into any trouble, our return policy can be found here. Just let us know if you need anything else.
