Ambco Window balance springs and other part

A home owner from Boise says:
March 18, 2022

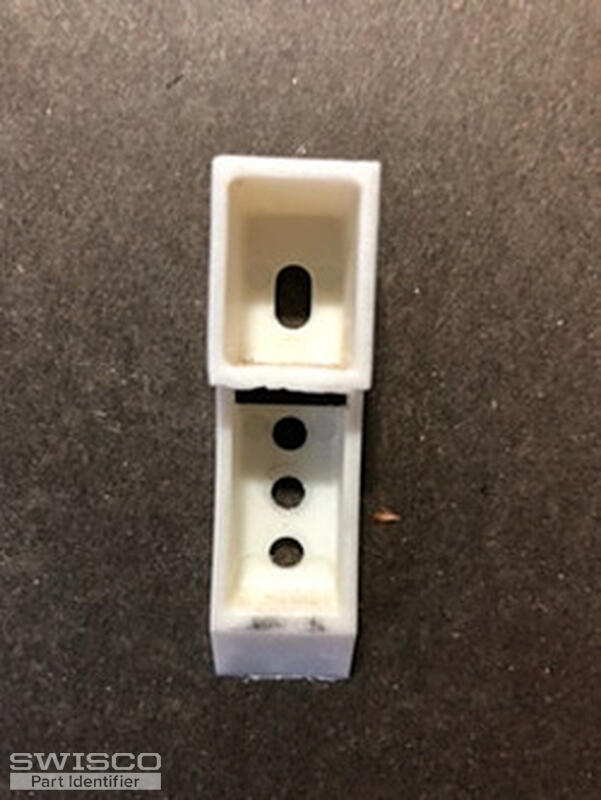

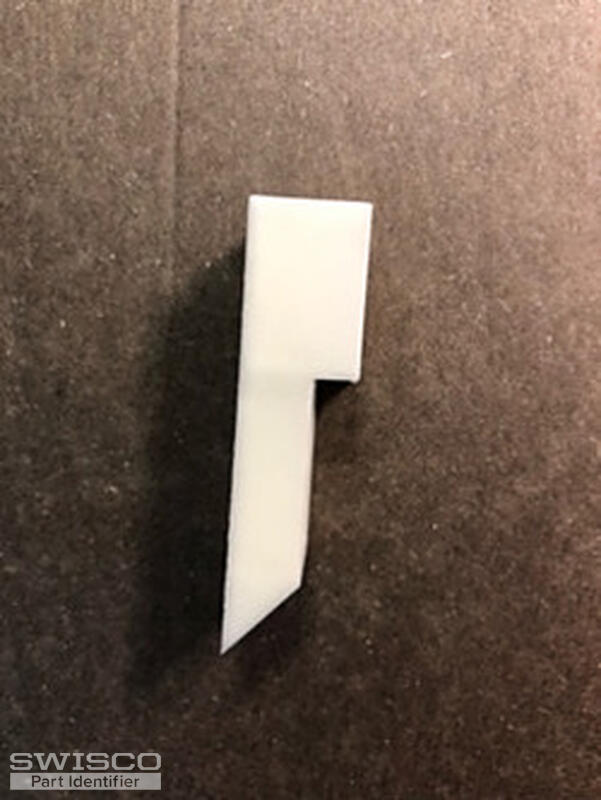

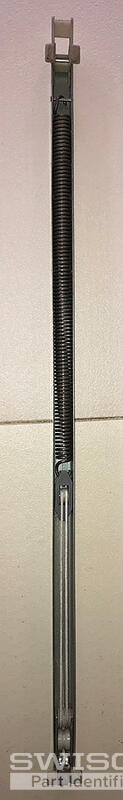

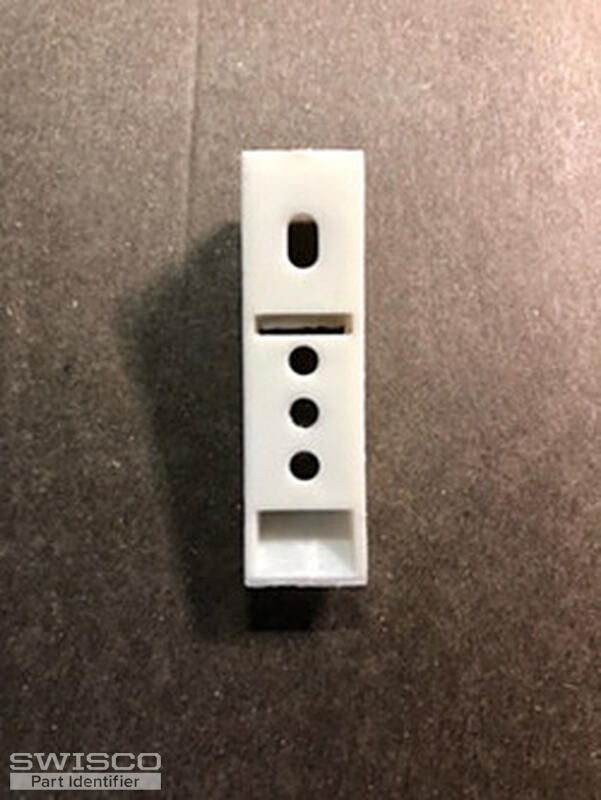

Do you have these parts for an Ambco single hung window? I need two balance springs and two of the sash spring release parts (three images). The window sash dimensions are 45½" wide X 22½" tall.
Thumbnail of the uploaded file named Image 1e.jpg
Thumbnail of the uploaded file named image1a.jpeg
Thumbnail of the uploaded file named image1f.jpeg
Thumbnail of the uploaded file named image1g.jpeg
Profile picture of Casey
Casey from SWISCO responded:
March 18, 2022

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

As for your top sash guide, see our 18-008. Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
5/8" Top Sash Guide
5/8" Top Sash Guide
18-008
$0.95
How to Repair a Jammed Window
How to Repair a Jammed Window
VIDEO
WATCH >
How to Replace a Top Sash Guide [1080p]
How to Replace a Top Sash Guide [1080p]
VIDEO
WATCH >
