American Craftsman Casement window part

Question

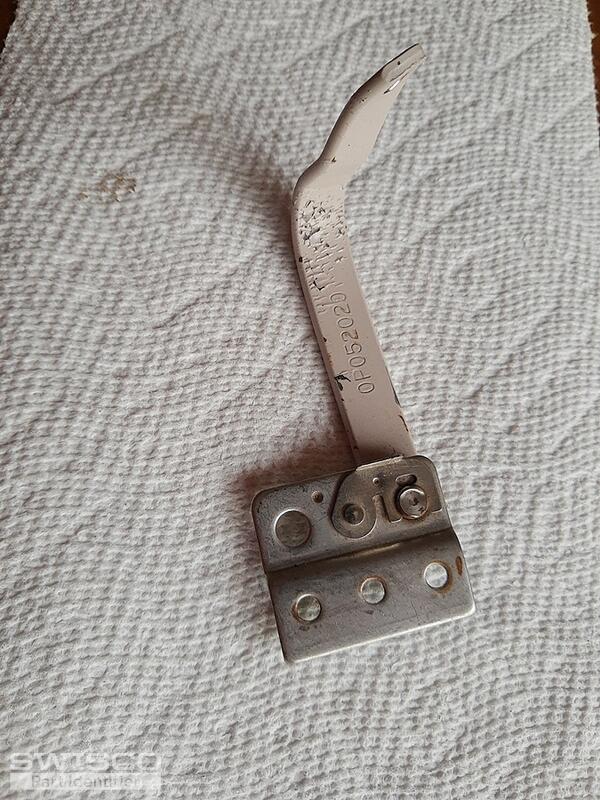

The part in the picture is damaged. It should be a straight piece attached to the silver part.  This attaches to the bottom of the window.  The window is an American Craftsman window.  The part number on the bent piece is 0P052020.

Emily · Accepted Answer

Hi there!

Thank you for contacting us. The part shown here is the link arm to a casement operator. However, we can't be 100% certain what you may need from this photo alone. Seeing the complete and undamaged assembly would help us confirm. However, the 0P052020 number has been associated with the 39-329 and 39-330 in the past. These operators are compatible with the 39-553 and 39-554 brackets and 39-232 handle which are sold separately. They're by no means a guarantee but take a look at the specifications and see if they match what you need.

Alternate image for 39-329

Side profile view with measurements

Alternate image for 39-330

Side profile view with measurements

Dimensions for 39-553

Dimensions for 39-554
