American Craftsman Springs

A quick learner from Bonita Springs Fl 34134 says:
February 22, 2023

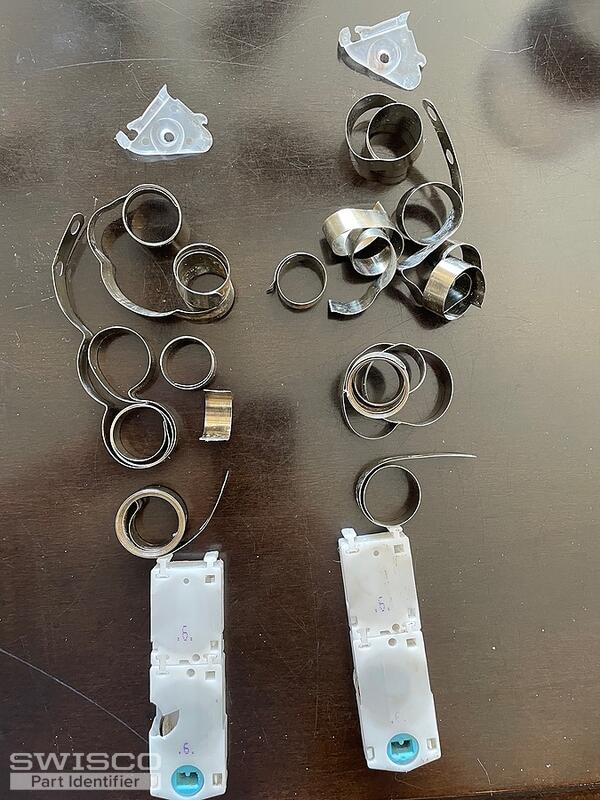

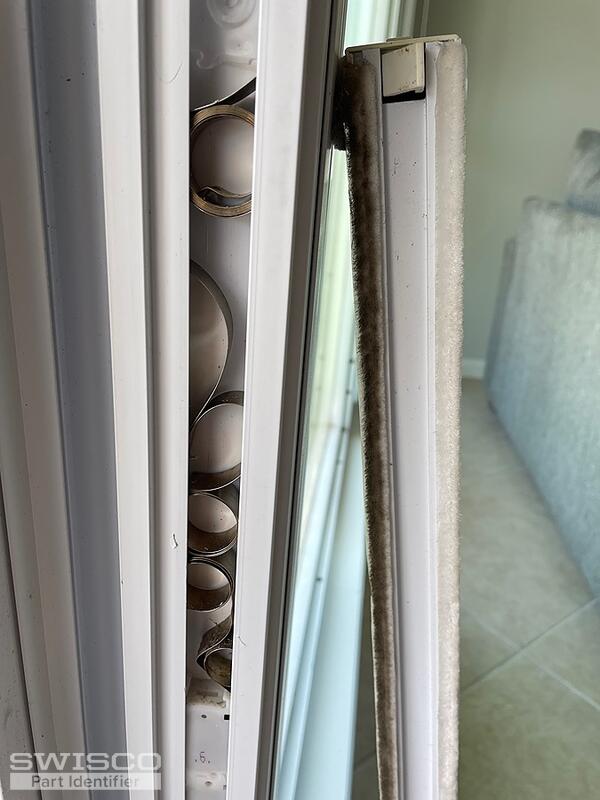

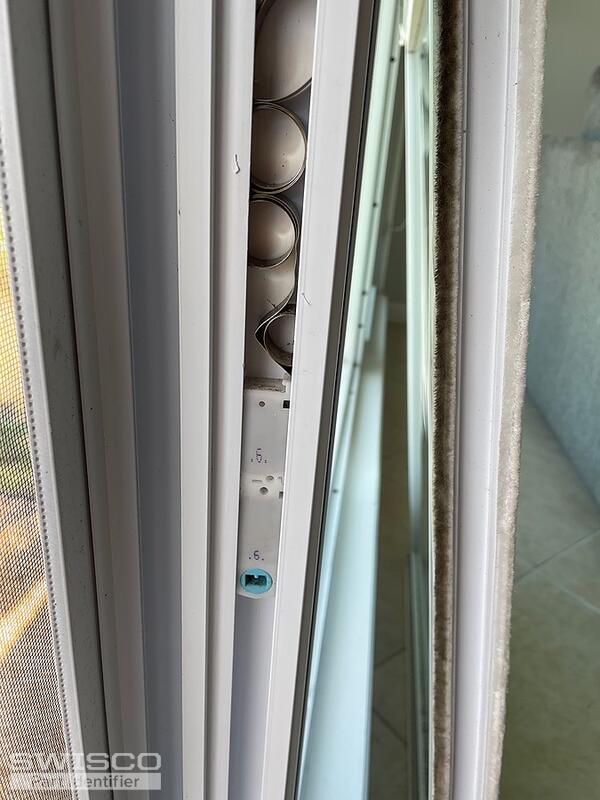

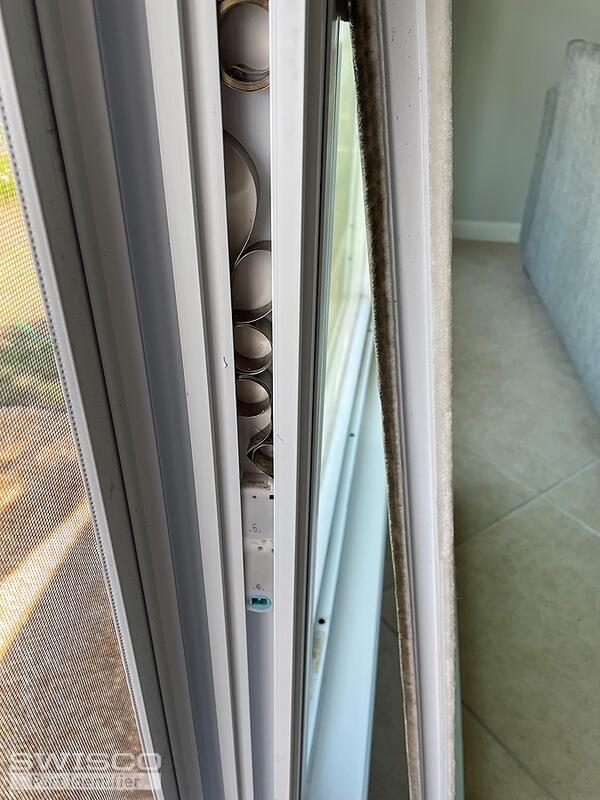

I have 2 windows I pur in new in 2014 American Craftsman 8500 series pats are 37/8" long an 11/8" wide enclosed are piCtures it looks like a 6 or 9 on the Plastic and the same on the sprayers I can't tell how many springs are really are because they were all apart when I open the window and close five pictures I need for these to go back in the windows. Thank you. Let me know how much and what I can and I need to get.
Thumbnail of the uploaded file named 6E5EC15F-8136-48F2-9E7D-762236CF6435.jpeg
Thumbnail of the uploaded file named 49A78F58-E847-4907-A3AB-0C692775DED7.jpeg
Thumbnail of the uploaded file named C065FBEA-45A1-4F54-A201-8AC4A0964E2F.jpeg
Thumbnail of the uploaded file named 3D63C0C5-7B61-4D4A-8436-2EB54A3DE6A6.jpeg
Thumbnail of the uploaded file named 97ADB425-7598-4363-B8C4-9EFE39194058.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
February 23, 2023

Thanks for posting. Your balance covers appear to be our 15-087 coil housing pivot and the 15-086 tandem coil housing. Carefully review and compare the measurements shown below to confirm that these are the right fit for you.

Detail of 15-087
Detail of 15-087

Detail of 15-086
Detail of 15-086

Since both the pivot housing and tandem are stamped with a 6, the coil balance springs you'd need would be the S180-6. The plastic mounting brackets are part 16-031.
A quick learner from Bonita Springs Fl 34134 says:
February 23, 2023
What do I need for 2 windows an how much I can call tomorrow an give you a credit card for order
Profile picture of Jasmine
Jasmine from SWISCO responded:
February 24, 2023

That will depend on the hardware currently installed in the windows. The recommendations above are according to the photos you've provided.

If the windows are similar in size, it is likely you'll need the same exact parts for both windows. However, the only way to know for sure is to remove the parts and review them.

You may call (888) 991-1929 to speak with an available agent. They will be more than happy to assist with placing your order.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
6 lbs Series 180 Coil Balance
6 lbs Series 180 Coil Balance
S180-06
$4.45
Mounting Bracket
Mounting Bracket
16-031
$0.90
