American Craftsman Window parts.

Question

These are parts from an old American Craftsman double hung window, over 20 years. I believe it is Series 1200.  What we are looking at is, I believe, a tilt latch (shown installed), a pivot lock shoe (broken, uninstalled) in the second and third photos.  Also in the third photo are two views of something I don't know the name of, that can stop the window going all the way up.  The last two photos are of a pivot bar (uninstalled, two views). Right now the window is not disassembled so I cant show them installed inside the frame.  I have reached capacity on sending photos attached to this but I can send another message with a picture of the one that stops the window from going up, to show how it looks installed in another window.  I very much appreciate any help you can give me with these. I have a handy person who is helping me.

Tom · Accepted Answer

Thanks so much for reaching out to us. We should be able to supply most of these parts. I'll go through them one at a time.

Tilt latch: See our 26-393A.
Pivot shoe: Yours is unfortunately too damaged to identify. I need to see an undamaged version, and I need you to write down its width and thickness in your response for me to review.
Vent latch: they don't really make these anymore. We do still sell a similar model, our 26-122, but it's only available in black, and that will only be sold as long as our supply holds out. After that, they're gone for good.

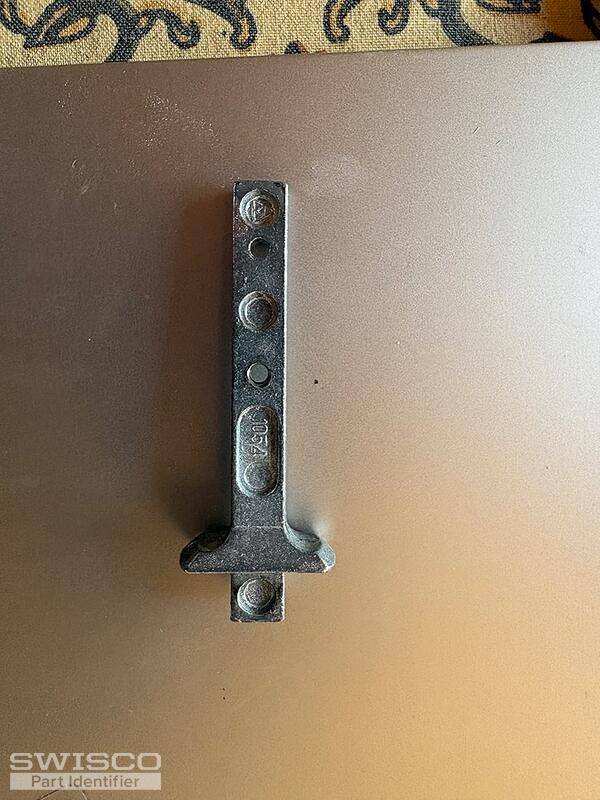

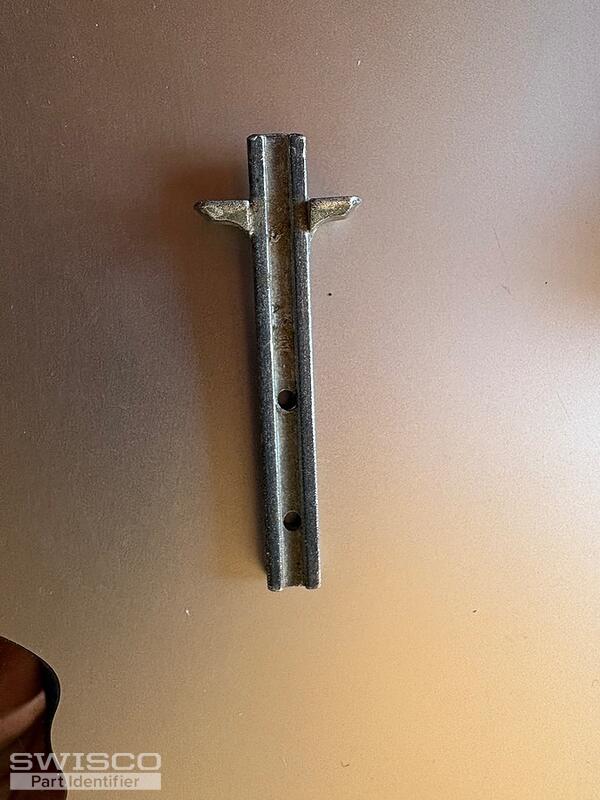

Pivot bar: See our 26-400.

In all cases, make sure to review the dimensions on our site before placing an order.
