American Craftsman screen window latches/slides

A quick learner from Maryland, USA says:

November 3, 2022

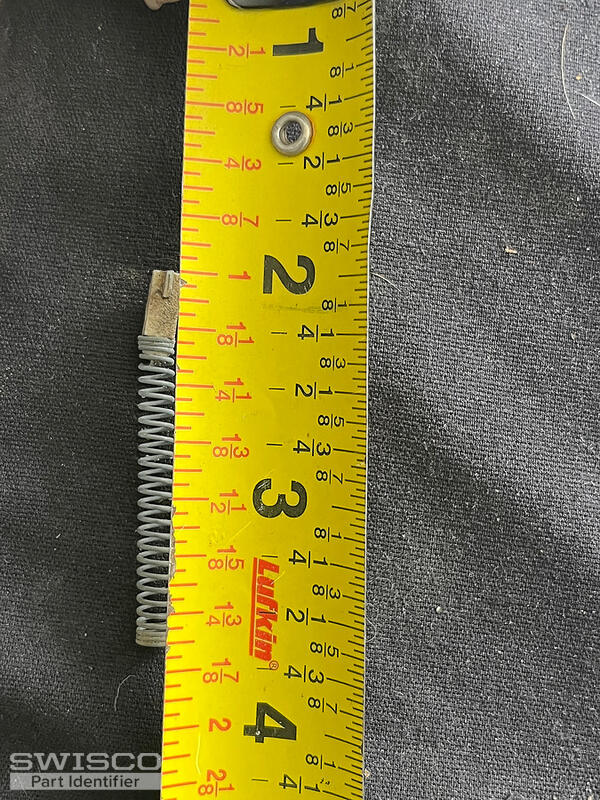

I believe Spring with Nylon Retainer,Product Code: 91-003 are the ones my screens use in first photo, but need some guidance on the latches.

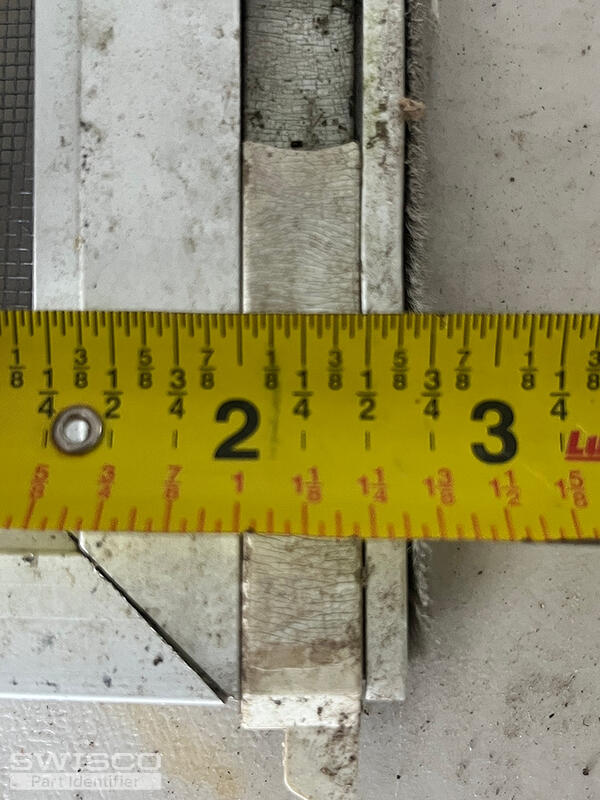

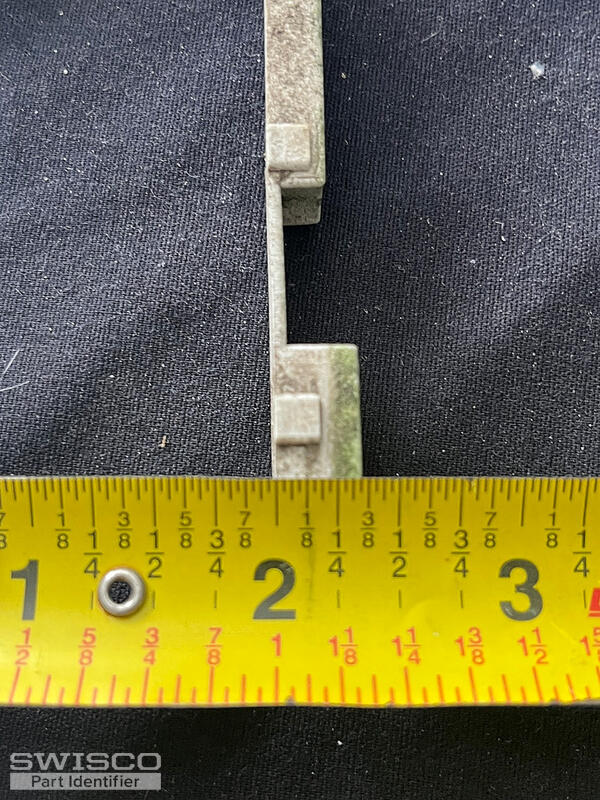

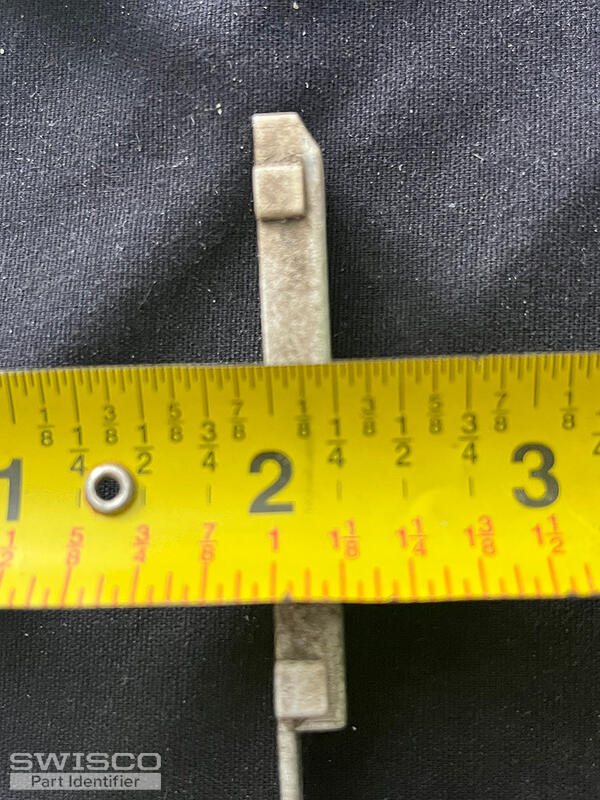

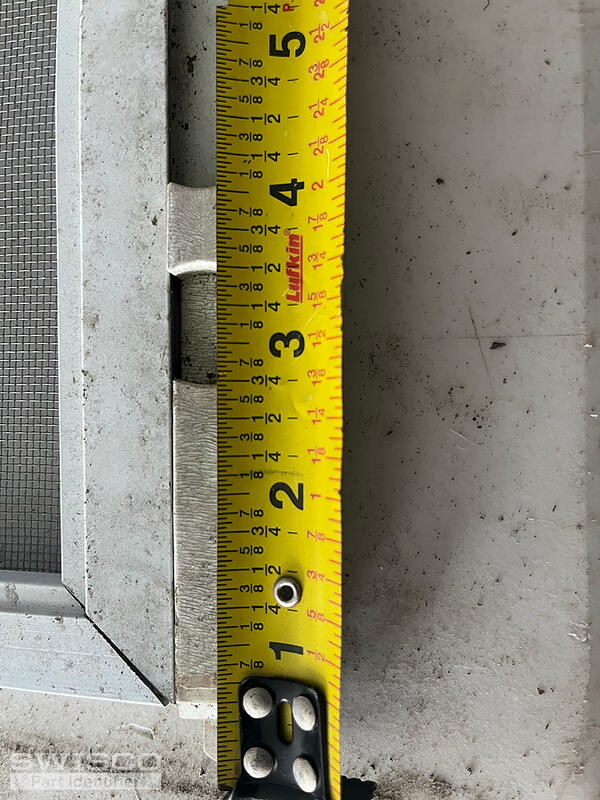

Thumbnail of the uploaded file named IMG-6304.jpg

Thumbnail of the uploaded file named IMG-6302.jpg

Thumbnail of the uploaded file named IMG-6301.jpg

Thumbnail of the uploaded file named IMG-6300.jpg

Thumbnail of the uploaded file named IMG-6299.jpg

Tom from SWISCO responded:

November 8, 2022

Your latch is similar in design to our 91-054 , but you will need to carefully review our dimensions to verify that they all match up.

Alternate image for 91-054

A quick learner from Maryland, USA says:

November 9, 2022

Tom,

Looking at the 4th photo, it shows my existing are 1/2" tall, the 91-054 you suggested are 5/8" tall, so they clearly will not fit. Do you have any additional recommendations?

Dave Sr. from SWISCO responded:

November 11, 2022

Unfortunately, we could not locate an exact replacement for your latches. Take a look at the 91-001P latch set to see if you think these could work for your screen frame.

Dimensions for 91-001P

Spring with Nylon Retainer

91-003

$0.80

Nylon Slide Bolt Pair

91-054

$3.01

Storm Window Latch Set

91-001P

$3.67
