Quick Learner from Bangor, Maine

Jun 17, 2019 9:34 am

American Craftsman (believe is 2007) says Series 5800-SGD--also other numbers MFR-SL1. As you can see by the photos, I've had to replace pin with bolt and put JB Weld on outside cracked handle. Please let me know if you need additional photos.

5 user uploaded images

6 Replies

Bob from SWISCO

Jun 19, 2019 7:28 am

Take a look at our 82-086. Look over all the pictures and dimensions and see if this is what you need.

Handy Person from Massachusetts

Jul 8, 2023 10:34 pm

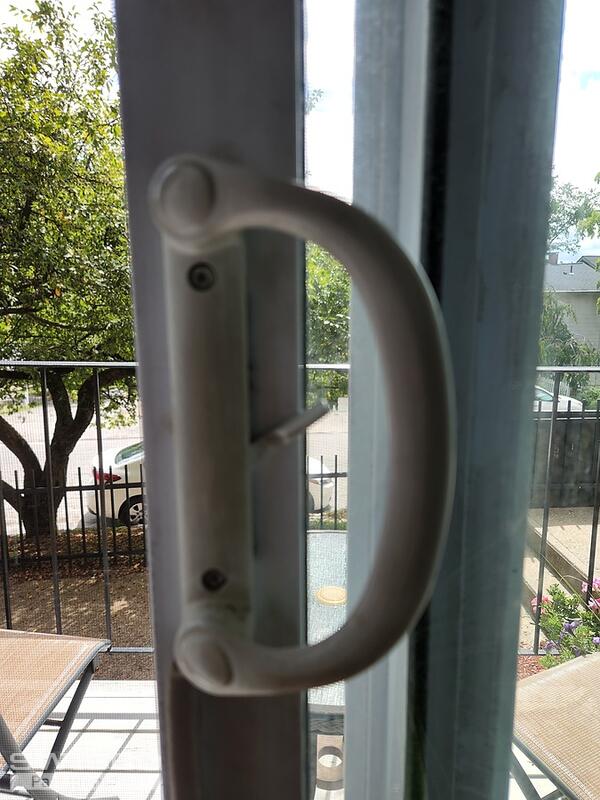

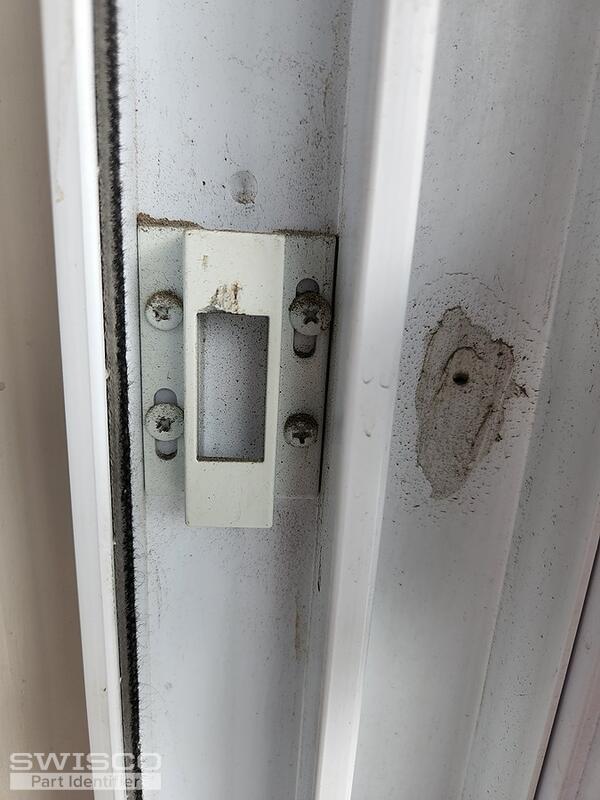

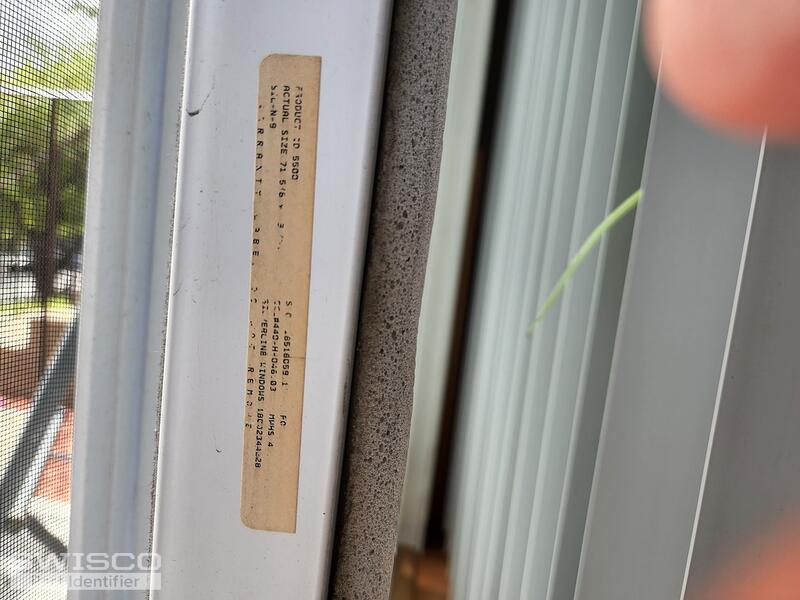

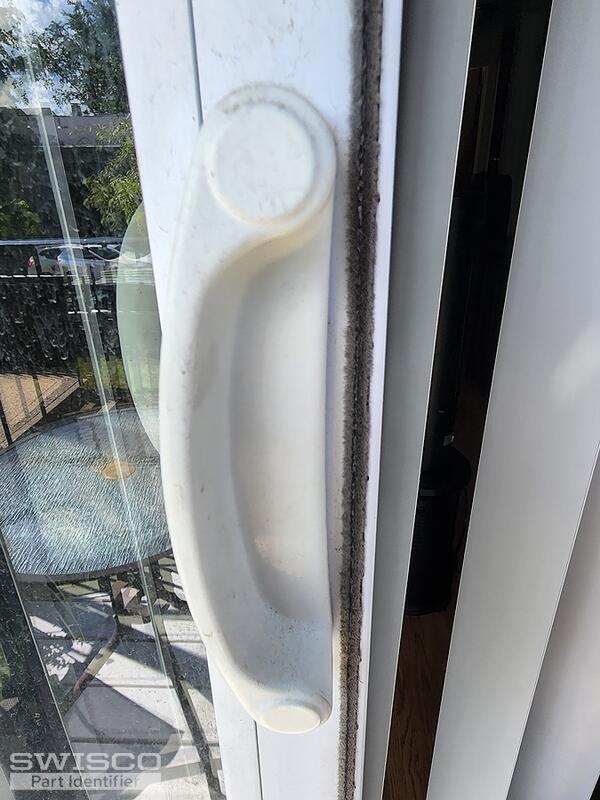

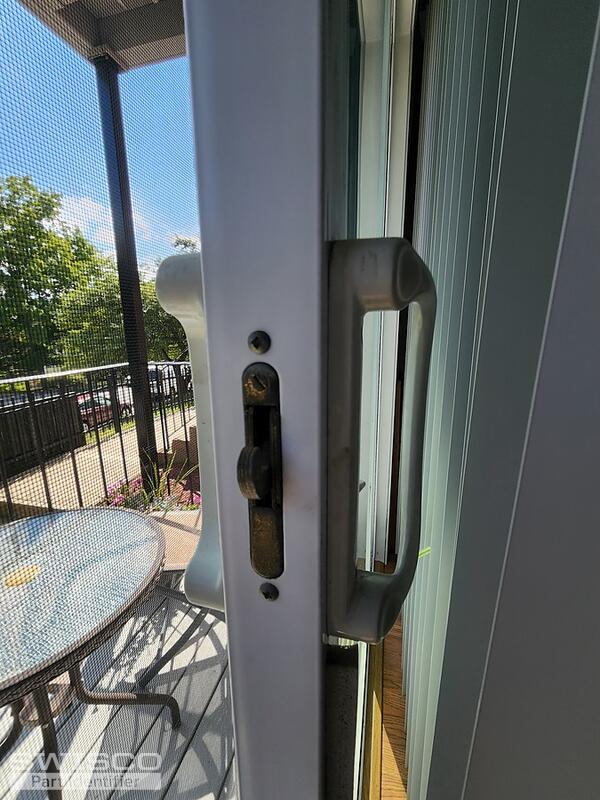

Hello, Just looking for an handle kit. Not sure if you can make out the product id. Anywhere you can tell me how to find one or order one.

Thank you Charlie

5 user uploaded images

Tom from SWISCO

Jul 10, 2023 1:33 pm

Hello, Charlie. We don't sell this exact handle set, but our 82-030 should work in the same capacity. While the design is different, I feel confident that the size will be the same, meaning you won't have to drill new holes. It will also be compatible with all your existing hardware, like the mortise.

Please feel free to reach out if you had any other questions.

Quick Learner from Apartment

Apr 9, 2024 12:07 pm

Hello,

Hope you can help me find the Lock mechanism part for a American Craftsman 50 series vinyl patio door panel 72" X 80". The lock has ran it's cause and it's not working properly.

Thanks for any help

Charlie

2 user uploaded images

Casey from SWISCO

Apr 10, 2024 9:50 am

Your mortise lock resembles the 82-218, which is commonly used with the 82-030 handle set that Tom recommended above. Take a look and let us know if you need anything else.

Profile view of 82-218

Opposite side view 82-218
