American Craftsman window coil balance

Question

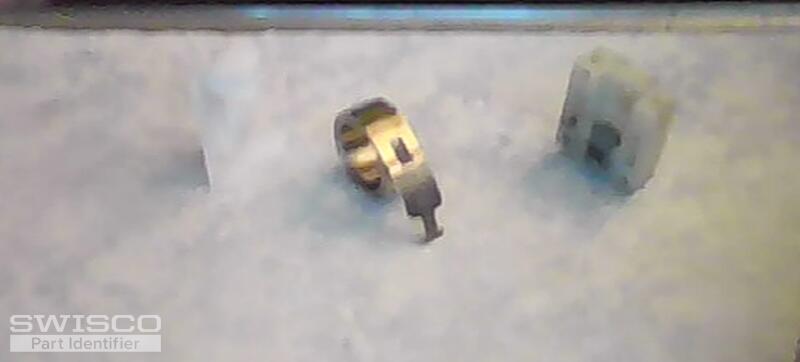

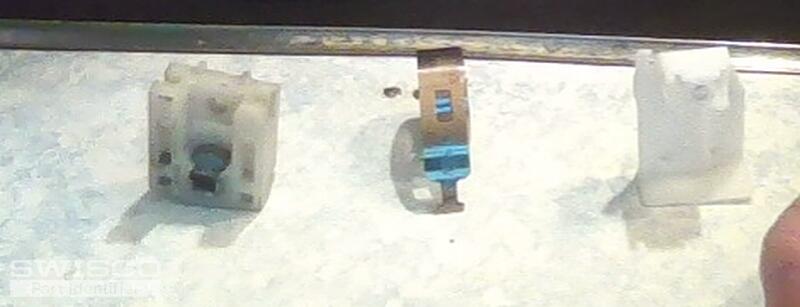

There are 2 numbers on the coil there's a # 9 and 2208.
On the white plastic piece that the coil goes into there's a bunch of numbers.
They are from top to bottom, Patent #'S
5.232.206
9.0 LB
5.365.638
6.584.644 82

Jasmine · Accepted Answer

Hey there, thanks for reaching out! Your pivot shoe resembles our 15-228, 17/32" thick pivot shoe. Compare the dimensions shown on the diagram below to your existing shoe to confirm that this is the right fit.

Dimensions for 15-228

The coil springs compatible with this shoe are the 1/2" thick, Series 160 coil springs. Given that yours is stamped with a 9, I suggest the S160-9. The compatible cover would be 15-150S.

Look of each of the recommended hardware and compare it to your originals to determine if these are the right replacements. Let me know if any of them are not a match.
